Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | 660X110mm |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Wooden Cases |
Delivery Time: | 25-30 days after payment |
Payment Terms: | L/C , T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Name: | Conductor Stringing Blocks | Item: | Transmission Line Stringing Blocks |
---|---|---|---|
Material: | MC Nylon Sheave | Usage: | Construction Works |
Size: | 660X110MM Or 660X100MM | Wheel Numbers: | 1,3,5,7,9 |
High Light: | AC Outdoor VCB Breaker,Remote Control Outdoor VCB Breaker,High Voltage VCB Breaker |

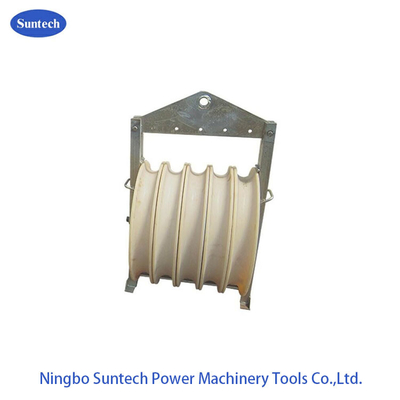

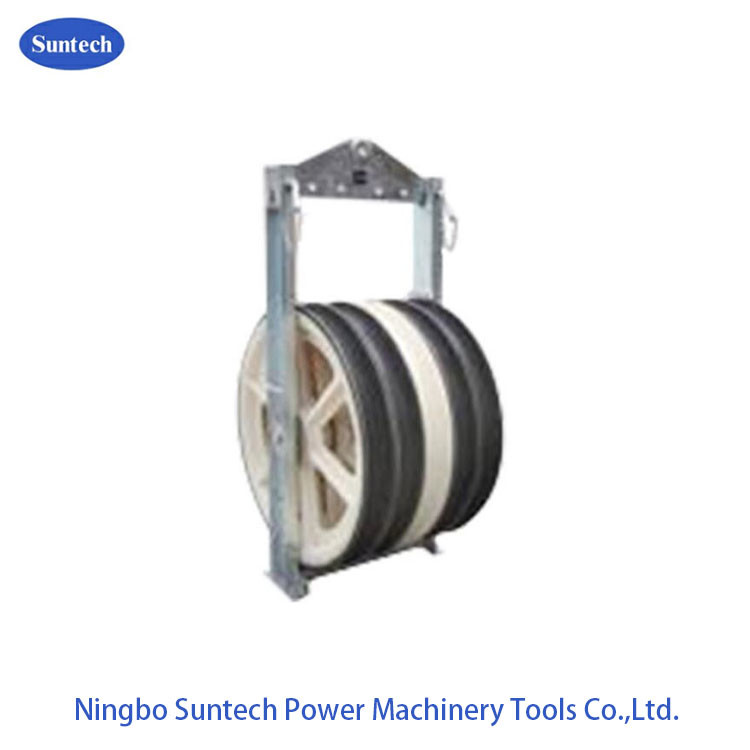

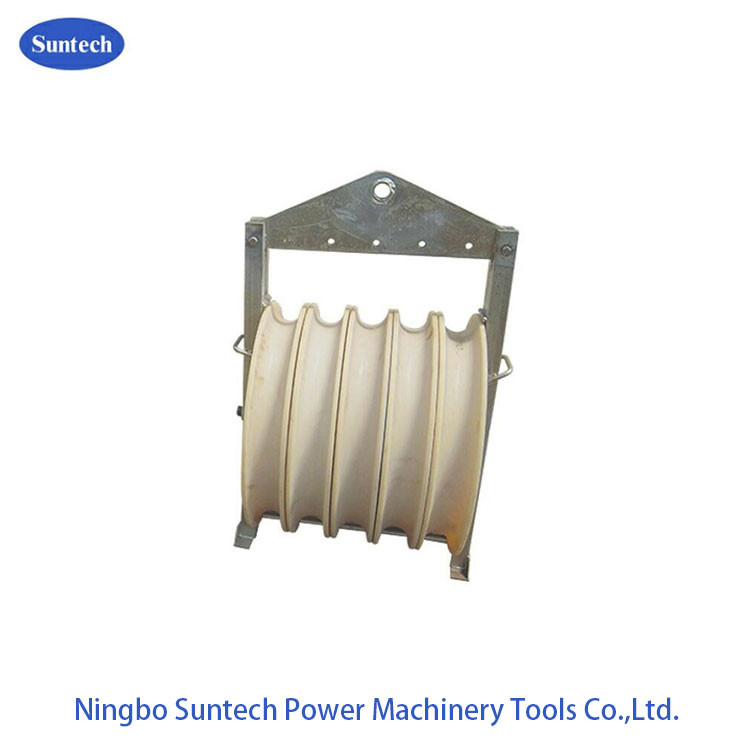

Customized Bundled Stringing Block Five Nylon Conductor Pulley Stringing Equipment Accessories
Ningbo Suntech Power Machinery Tools Co.,Ltd.is a professional manufacturer and exporter in Ningbo,Zhejiang,China.We mainly manufature
electric construction tools and equipments.Such as stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,
gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Technical Data
Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
10123 | SHW660 | 5 | 60 | 150 | |
10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
10126 | SHWLN660 | 5 | 60 | 120 | |
10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
10128/10128A | SHWQN660 | 5 | 60 | 110 | |
10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
660mm Stringing Block
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customized.
