Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SKL-7 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Box and carton |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Model: | SKL-7 | Name: | Conductor Gripper |
|---|---|---|---|
| Apply For: | LGJ25-70 | Material: | Aluminum Alloy |
| Max Open: | 14mm | Weight: | 1.0kg |
| High Light: | ACSR Basic Construction Tools,AAAC Basic Construction Tools,Aluminum Alloy Transmission Line Stringing Tools |
||

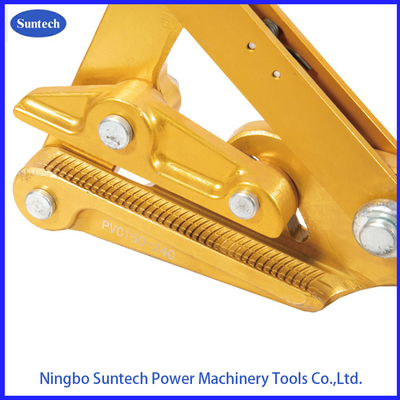

Aluminum Alloy Basic Construction Tools Grip Come Along Clamp For ACSR AAAC
Configuration: Apply to adjusting the sag and tensioning the conductor wire in power lines construction.
Feature: product is forged of high strength aluminum alloy with small size and light weight
Quick Information:
1) Aluminum alloy conductor gripper
2) two types, one is with hook, pls find the photos
3) Apply for LGJ300-400 conductor
4) Max open 32mm
5) Suntech brand
6) Transmission line stringing tools and accessories.
Aluminum Alloy Conductor Gripper Products
| Item number | Model | Rated Load (KN) | Applicable Conductor | Max Open(MM) | Weight (KG) |
| 13221 | SKL-7 | 7 | LGJ25-70 | 14 | 1 |
| 13222 | SKL-15 | 15 | LGJ95-120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | LGJ150-240 | 24 | 3 |
| 13224 | SKL-40 | 40 | LGJ300-400 | 32 | 4 |
| 13225A | SKL-50C | 50 | LGJ500-630 | 36 | 6.6 |
| 13224A | SKL-40A | 40 | LGJ400 | 32 | 4.3 |
| 13225 | SKL-50A | 50 | LGJ500 | 34 | 7 |
| 13226 | SKL-50B | 50 | LGJ630 | 36 | 7.3 |
| 13227 | SKL-60 | 60 | LGJ720 | 38 | 9.2 |
| 13228 | SKL-70 | 70 | LGJ900 | 42 | 14 |
| 13229 | SKL-80 | 80 | LGJ1000 | 45 | 18 |
| 13229A | SKL-80A | 80 | LGJ1120 | 48 | 18 |
Contact Person: Peter
Tel: 86-13958364836
