| Name: | Bolted Type Cable Grip | Application: | Optical Fiber Conductor Gripper |
|---|---|---|---|
| Using: | Protect OPGW Cable | Max Radial: | 20mm Diameter |
| Type: | OPGW | Certificate: | ISO |
| High Light: | OPGW Cable Grip,Max 20mm Diameter Cable Grip,OPGW Optical Fiber Cable Tools |
||

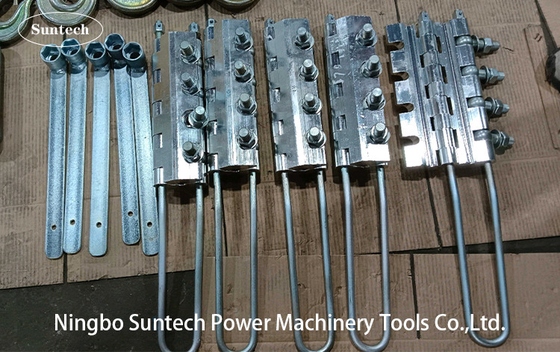

Bolted Type Max 20mm Transmission Line OPGW Conductor Gripper
Prodcuts Description
8-20MM SKG Model Optical Fiber Cable Tools Bolted Type OPGW Cable Grip
They are for holding the OPGW overhead optical ground wire, cable diameter is the same as grip size,
in order to ensure clamping firmly, reduce the pressure of clamped parts cable is clamped part and protect
the inside fiber of cable not to be damaged.The body is forging of high strength aluminum alloy, using the
bolt not to slip line and hurt the line.Need to specify when ordering diameter and fiber cable models.
Bolted Type OPGW Cable Grip
8-20MM SKG Model Optical Fiber Cable Tools Bolted Type OPGW Cable Grip
| Model No. | Model | Radial Diameter(mm) | Rated Load(KN) | Weight(kg) |
| 20101 | SKG-2.5 | Φ8-20 | 25 | 3.8 |
| 201032 | SKG-4.5 | Max 20 | 45 | 5.6 |
| 20103 | SKG-1.6 | Φ11-15 | 16 | 5.6 |
| 20104 | SKG-1.6 | Φ15-17 | 16 | 5.6 |
