Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | YL-7.5 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exporting Containers |
| Delivery Time: | In Stock |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Size: | 2300*1250*1620mm | Rated Tension(KN):: | 5 |
|---|---|---|---|
| Weight: | 450kg | Maximum Speed(m/min):: | 40 |
| Max Tension(KN):: | 7.5kn | Application: | Power Construction |
| Usage: | Cable Tensioner | Type: | Cable Pulling Machine |
| High Light: | 7.5kN Hydraulic Cable Tensioner,1100mm Tension Wheel Hydraulic Cable Tensioner,Hydraulic OPGW Stringing Tools |
||

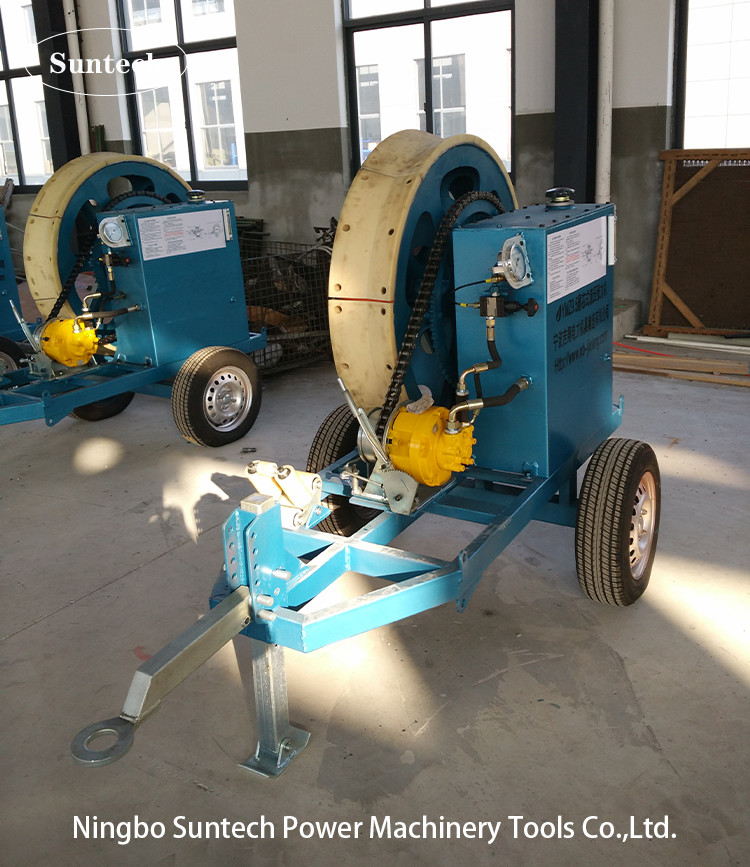

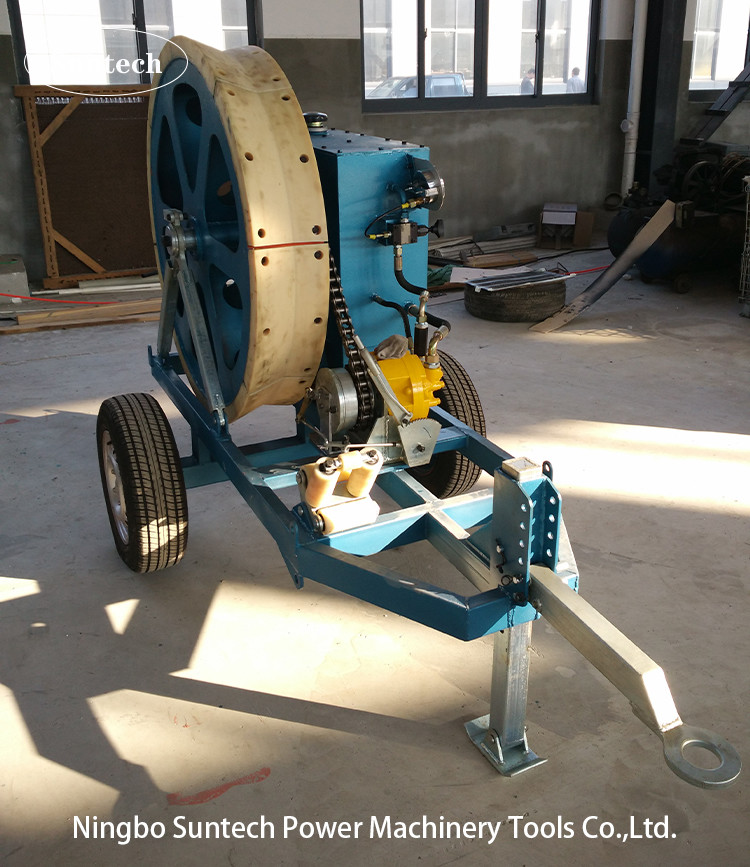

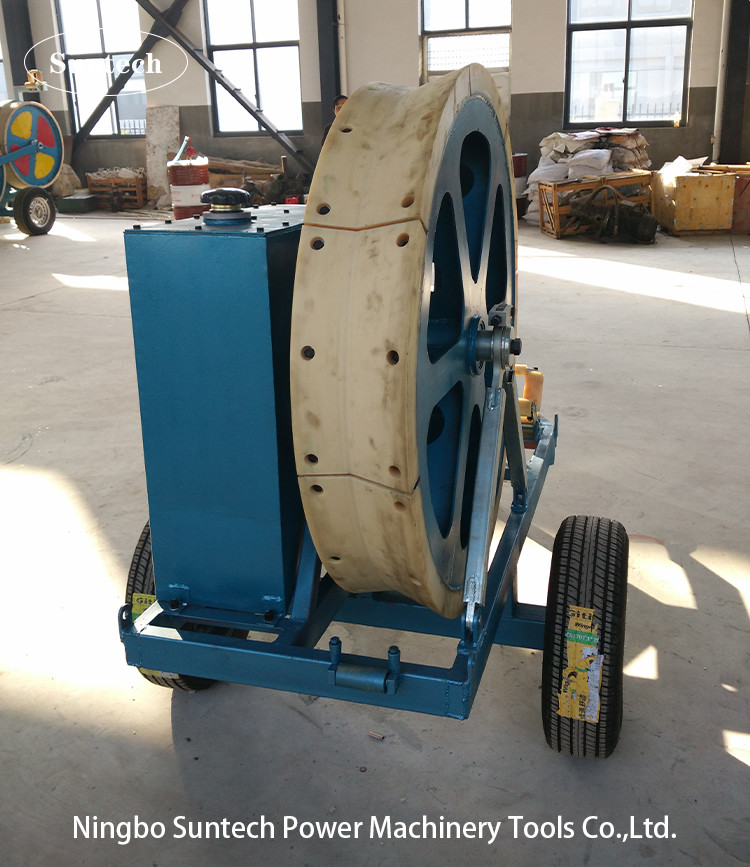

7.5KN Hydraulic Cable Tensioner for Stringing OPGW With 1100 mm Tension Wheel
Application
It is applicable to release wire, ground wire, cable in transmission line project.
Applied for tension stringing of the transmission line conductors and ground cables, and ADSS, OPGW optical cables.
Features
1 high efficiency ;
2 safe and reliable;
3 widely used;
4 high quality
5 convenient to carry
Performance parameter
Max continuous tension: 1*7.5KN
Max speed:40m/min
Structure parameter
Tension wheel diameter:1100mm
Max conductor diameter :24mm
Groove number:5
Total weight:850kg
overall dimension (length*width*height):2300*1250*1620
Main comfigurations
Main motor: Tianjin Parker
Speed reducer :German Rexroth
Hydraulic meter: German
Technical Data
| Model Type | YL-75 |
| Overall Size(mm) | 2300*1250*1620 |
| Weight(kg) | 450 |
| Max Tension(KN) | 7.5 |
| Rated Tension(KN) | 5 |
| Max Velocity(m/min) | 40 |
| Diameter of Tension wheel(mm) | Φ1100 |
| Applicable Conductor Wire | ≤ LJ-240 |
| ≤ LJ-185/10 | |
| Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
| Max Oil Temperature(°C) | 70 |
| Rated Working Pressure(MPa) | 25 |
Contact Person: Peter
Tel: 86-13958364836
