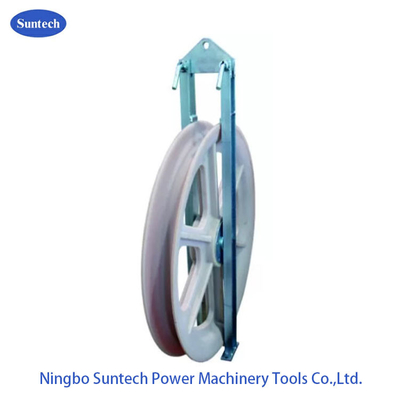

508*75 Single Nylon Wheels Pulley Blocks For Conductor Transmission Line tools
The 508MM Overhead Conductor Stringing Blocks (Running out blocks) are used for overhead transmisson line conductor
or OPGW stringing. The sheave of blocks is made in aluminum alloy lined with neoprene or high strength MC Nylon.
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
508MM Overhead Transmission Line Cable Stringing Blocks
| Item No. |
Model |
ACSR Size Range (mm²) |
Working Load (KN) |
Weight (kg) |
Material of Sheave |
| 10101 |
SHD508 |
300-400 |
20 |
18 |
Aluminum alloy |
| 10104 |
SHDN508 |
300-400 |
20 |
16 |
MC Nylon |
| 10104A |
SHDN508X100 |
300-400 |
20 |
17 |
MC Nylon |
| 10102 |

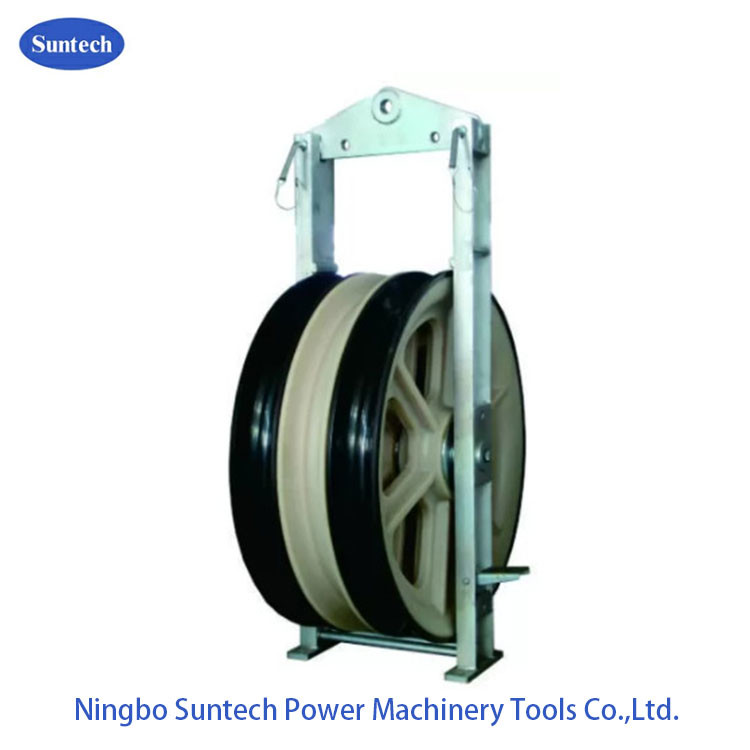

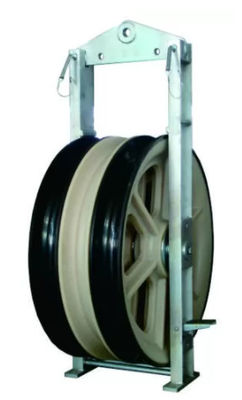

SHS508 |
300-400 |
40 |
61 |
Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105 |
SHSLN508 |
300-400 |
40 |
47 |
| 10107 |
SHSQN508 |
300-400 |
40 |
43 |
Nylon, optional can be lined with neoprene |
| 10107A |
SHSQN508X100 |
400 |
40 |
46 |
| 10108 |
SHWQN508 |
300-400 |
60 |
70 |
| 10108A |
SHWQN508X100 |
300-400 |
60 |
76 |
Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures.
Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in
aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
