Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO & CE |
| Model Number: | SHDN508 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get The Latest Price |
| Packaging Details: | Exported Packing |
| Delivery Time: | 10 DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sets per month |
| Outer Diameter Of Sheave:: | 508mm | Inner Diameter Of Sheave:: | 408mm |
|---|---|---|---|
| Material Of Sheaves: | Nylon Or Aluminum Alloy | Conductor Diameter:: | Up To 25mm |
| Width Of Sheaves: | 75mm Or 100mm | Type: | Stringing Pulley Blocks |
| High Light: | Overhead Conductor Stringing Blocks,Aluminum Alloy Sheave Conductor Stringing Blocks,508mm Nylon Sheave Running Out Blocks |
||

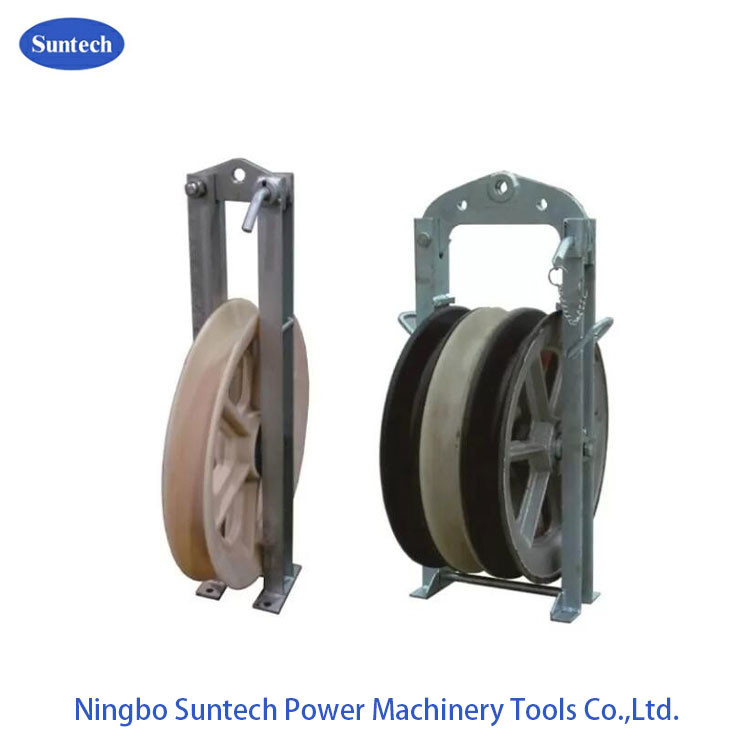

508mm Overhead Cable Stringing Blocks Nylon Or Aluminum Sheaves
The 508MM Overhead Conductor Stringing Blocks (Running out blocks) are used for overhead transmisson
line conductor or OPGW stringing.The sheave of blocks is made in aluminum alloy lined with neoprene or
high strength MC Nylon.
508MM Overhead Transmission Line Cable Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10101 | SHD508 | 300-400 | 20 | 18 | Aluminum alloy |
| 10104 | SHDN508 | 300-400 | 20 | 16 | MC Nylon |
| 10104A | SHDN508X100 | 300-400 | 20 | 17 | MC Nylon |

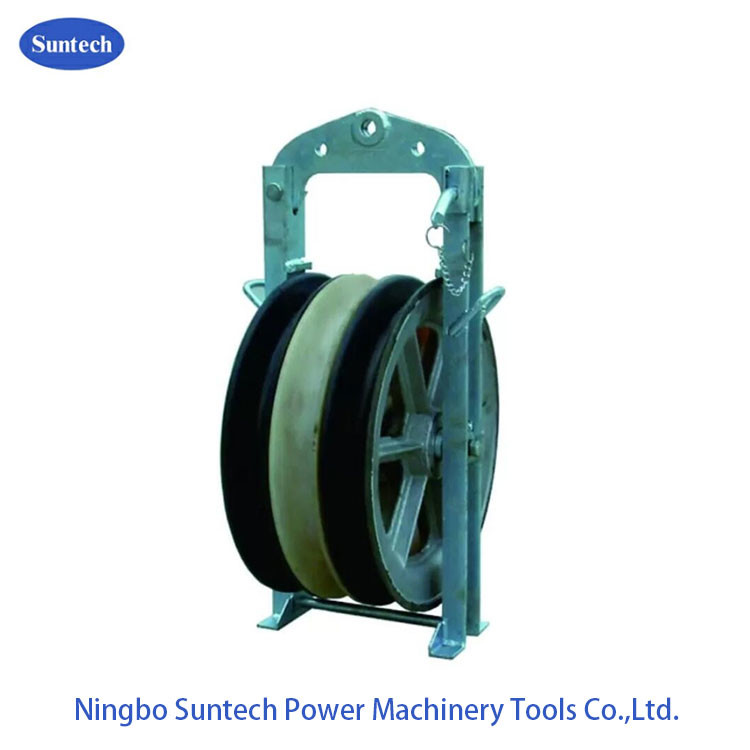

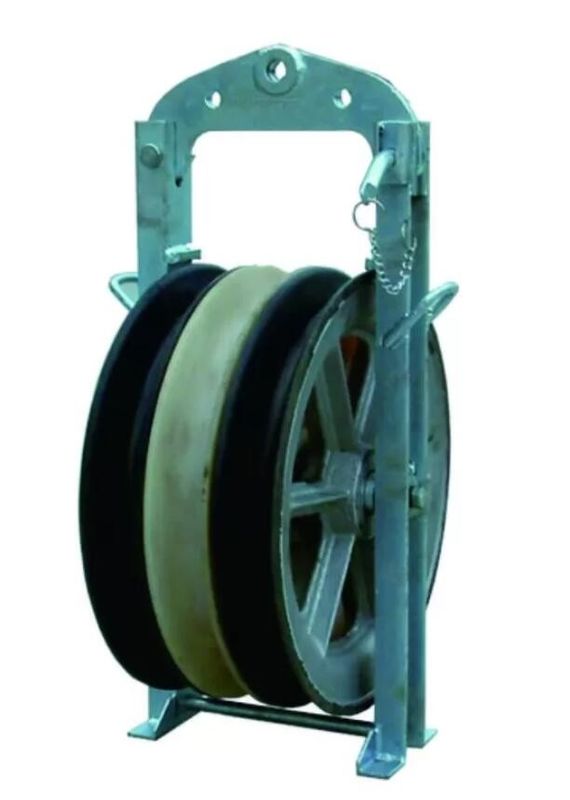

| 10102 | SHS508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105 | SHSLN508 | 300-400 | 40 | 47 | |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10107A | SHSQN508X100 | 400 | 40 | 46 | |
| 10108 | SHWQN508 | 300-400 | 60 | 70 | |
| 10108A | SHWQN508X100 | 300-400 | 60 | 76 |
Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on
tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through
the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum
alloy sheave can be lined with neoprene.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
