Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO and CE |
| Model Number: | non rotating wire rope |
| Minimum Order Quantity: | 1000m |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Steel Drums |
| Delivery Time: | 7-10 days afte deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 meter per day |
| Material: | Pilot Wire | Application: | Overhead Line Tranmission |
|---|---|---|---|
| Structure: | Hexagon With 12 Strands | Diameter: | 10-30mm |
| Item: | Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope | ||
| High Light: | Braided Galvanized Steel Core Wire Rope,1960N/mm2 Steel Core Wire Rope,Galvanized Braided Steel Rope |
||

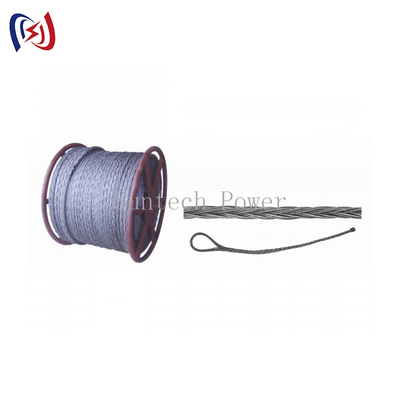

Steel Core Wire Rope Galvanized High Strength Braided Steel Rope For Power Construction
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.

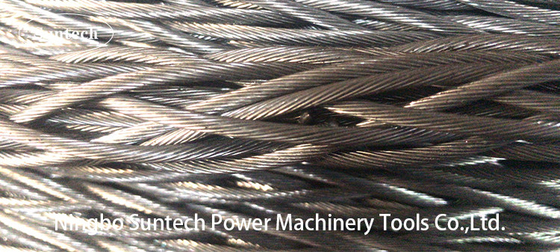

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Application
Anti-twisting Woven Steel Wire Rope is applied to mechanical pulling and tensioning release conductors.
Characteristics
1. Braided 1960N/mm2 high -strength galvanized steel wire. If need other levels of strength, contact us.
2. It is not available for small diameter grinding core pulling rope.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1: Take First-Class Quality as Target and First-class Service.
2: As Responsibility, To Succeed By Scientific Management.
3: Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Product No. | Structure | Diameter(mm) | Single bundle diameter(mm) | Breaking Force(KN) |
| 80237 | Four Square eight shares | 7 | 2.0 | 28.6 |
| 80238 | 9 | 2.5 | 45.3 | |
| 80239 | 11 | 3.0 | 65.2 | |
| 80240 | 13 | 3.5 | 88.1 | |
| 80241 | 15 | 4.0 | 116.6 | |
| 80242 | Six Square twelve shares |
9 | 2.0 | 20.27 |
| 80243 | 11 | 2.5 | 92.27 | |
| 80244 | 13 | 3.0 | 110.26 | |
| 80245 | 15 | 3.2 | 130.52 | |
| 80246 | 17 | 3.5 | 151.20 | |
| 80247 | 20 | 4.2 | 224.4 | |
| 80248 | 22 | 4.8 | 307.2 | |
| 80249 | 24 | 5.1 | 343.34 | |
| 80250 | 26 | 5.6 | 382.26 |
