Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Anti twisting steel wire |
| Minimum Order Quantity: | 500m |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Reels and containers |
| Delivery Time: | 7-10 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 meter per day |
| Steel Grade:: | Steel Wire Rope | Wire Dia: | 18mm |
|---|---|---|---|
| Surface: | Galvanized | Breaking Force: | 210KN |
| Manufacturing Experince:: | 15 Years | Type: | Anti-twisting Galvanized Steel Wire Rope |
| High Light: | Dia 18mm Braided Steel Wire Rope,12 Strands Braided Steel Wire Rope,Dia 18mm Anti Twist Wire Rope |
||
Anti twisting Braided Steel Pilot Wire Rope Conductor Stringing Rope 12 Strands 18mm
Anti twisting galvanized pilot wire rope is used for pulling conductors or OPGW, earth wire in the overhead transmission line construction.
Anti twisting steel rope is specially braided from high strength, galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work.

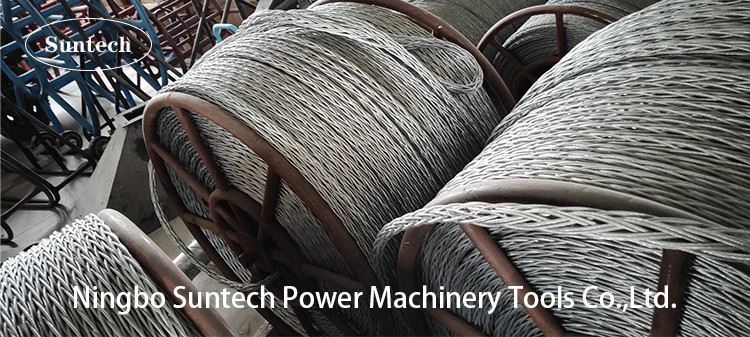

The rope is packed in steel drum, which can be installed on the reel winder of conductor puller directly.
18MM Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18209A | 18 | 206.00 | Φ4.0 | 1960 | 1060 | |
18mm rope is braided from 12 strands of 1X25Fi wire, 1000 meter/drum
Packed in 1400mm diameter steel drum.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.
It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL16-12x19W | 16 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 | 1900 |
Structure: 18mm Anti-twisting Braided Steel Wire Rope Conductor Stringing Rope 12 Strands 6 Squares
