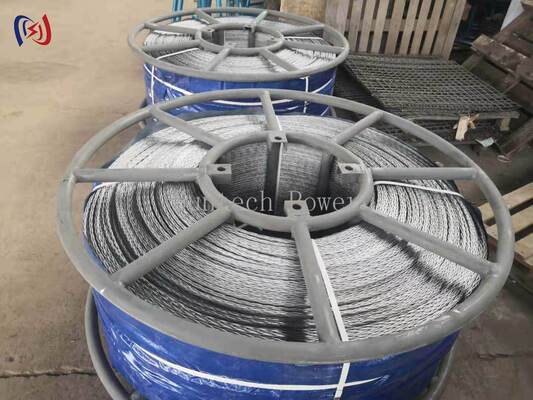

Hexagon 12 Strands Galvanized Anti Twist Wire Rope Cable Pilot Wire Rope

Hexagon 12 Strands Galvanized Anti Twist Wire Rope Cable Pilot Wire Rope

  • Hexagon 12 Strands Galvanized Anti Twist Wire Rope Cable Pilot Wire Rope
  • Hexagon 12 Strands Galvanized Anti Twist Wire Rope Cable Pilot Wire Rope
Hexagon 12 Strands Galvanized Anti Twist Wire Rope Cable Pilot Wire Rope
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Pilot Wire
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: Get The Latest Price

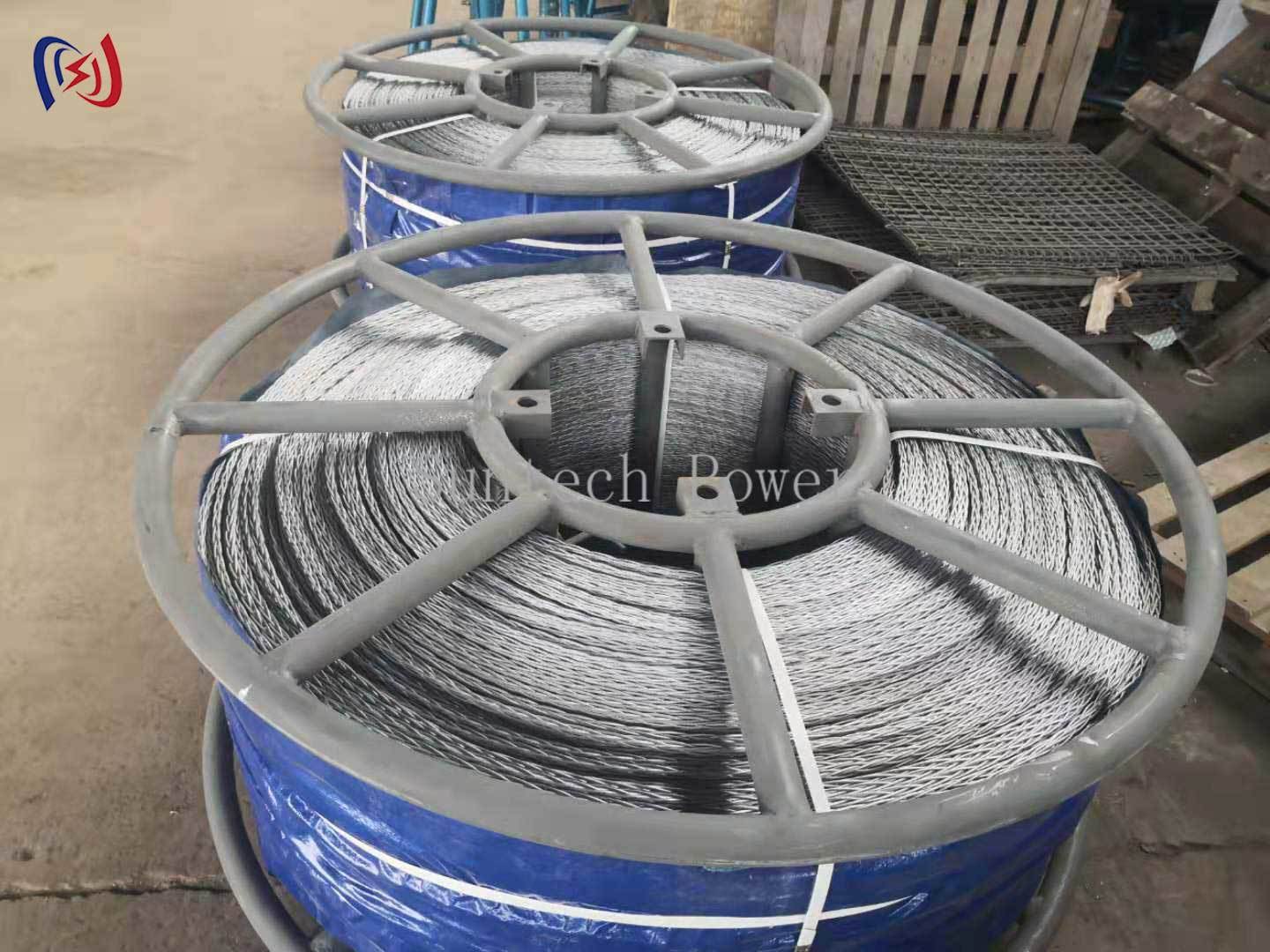

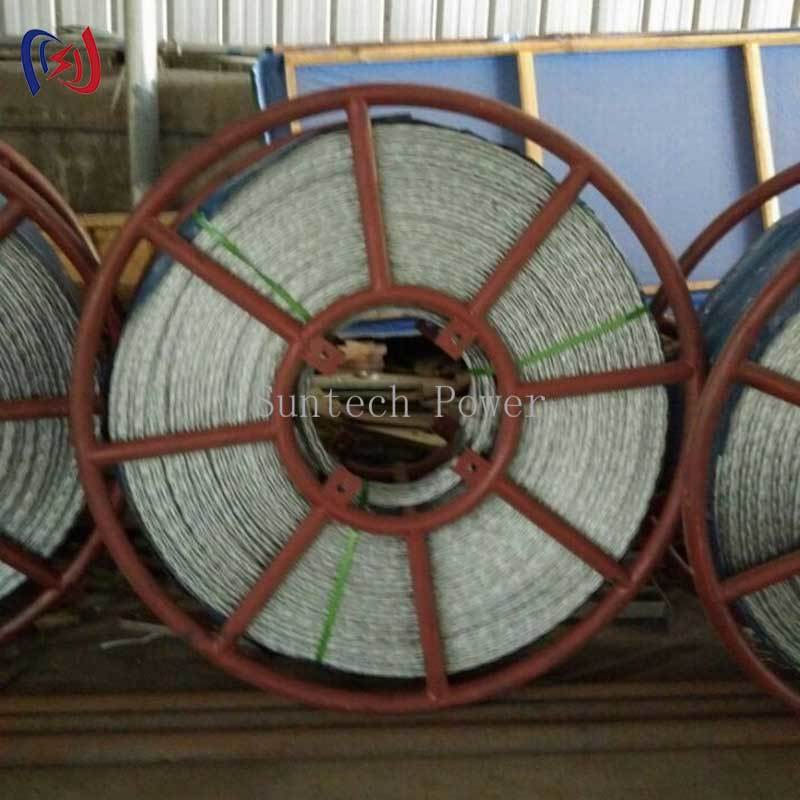

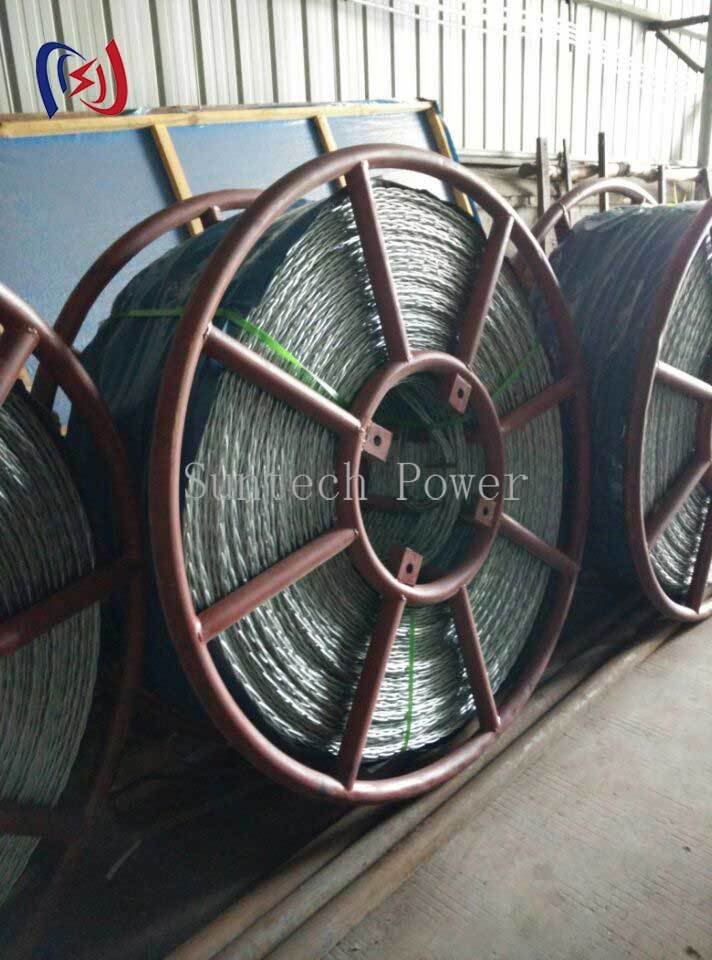

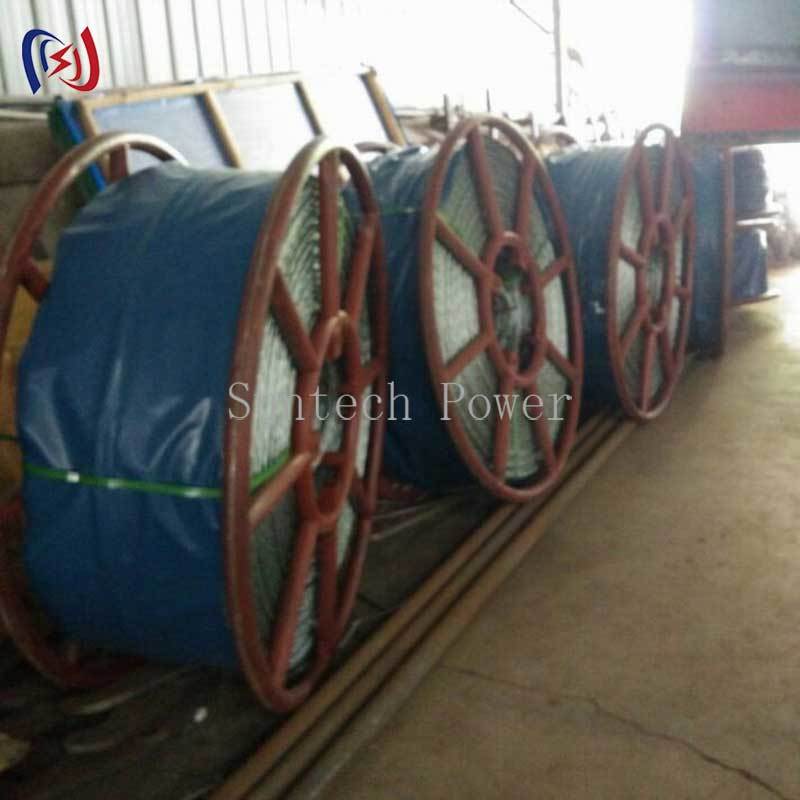

Packaging Details: Steel Reels
Delivery Time: 7-10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 meter per day
Contact Now
Detailed Product Description
Application: Overhead Line Tranmission Material: Steel Wire
Item: Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope Struction: Hexagon With 12 Strands
Diameter: 10-30mm Surface Treatment: Galvanized
High Light:

Galvanized Anti Twist Wire Rope

,

Hexagon Anti Twist Wire Rope

,

12 Strands Galvanized Wire Rope

Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope



Application

Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.



Technical Data

We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.

Item no. Normal Diameter (mm) Structure Ref. Weight (kg/m) Breakage tension(kN)
Rope structure
1x19 1x19W T25 T29
YL9-12x19 10 6 Squares 12 Strands 0.297 50 55
YL11-12x19 11 6 Squares 12 Strands 0.480 70.5 80
YL13-12x19 13 6 Squares 12 Strands 0.630 105 120
YL15-12x19 15 6 Squares 12 Strands 0.925 140 158
YL18-12x19 18 6 Squares 12 Strands 1.150 185 210
YL20-12x19 20 6 Squares 12 Strands 1.320     250
YL22-12XT25 22 6 Squares 12 Strands 1.822     320
YL24-12xT25 24 6 Squares 12 Strands 2.034     360
YL28-12xT29 28 6 Squares 12 Strands 2.882     480
YL30-12xT29 30 6 Squares 12 Strands 3.120     540
YL20-18x19 20 6 Squares 18 Strands 1.598 280 300
YL22-18XT25 22 6 Squares 18 Strands 1.898     389
YL24-18xT25 24 6 Squares 18 Strands 2.162     440
YL28-18xT29 28 6 Squares 18 Strands 3.012     580
YL30-18xT29 30 6 Squares 18 Strands 3.616     658



Item no. Normal Diameter (mm) Structure Standard Length (m)

Diameter of spool

(mm)

Empty spool weight

(kgs)

YL9-12x19 10 6 Squares 12 Strands 1000
YL11-12x19 11 6 Squares 12 Strands 1000 1100x560 50
YL13-12x19 13 6 Squares 12 Strands 1000 1100x560 52
YL15-12x19 15 6 Squares 12 Strands 1000 1250x560 60
YL18-12x19 18 6 Squares 12 Strands 1000 1400 74
YL20-12x19 20 6 Squares 12 Strands 1000 1400 74
YL22-12XT25 22 6 Squares 12 Strands 800 1400 74
YL24-12xT25 24 6 Squares 12 Strands 800
YL28-12xT29 28 6 Squares 12 Strands 500
YL30-12xT29 30 6 Squares 12 Strands 500
YL20-18x19 20 6 Squares 18 Strands 1000
ST22-18XT25 22 6 Squares 18 Strands 500
ST24-18xT25 24 6 Squares 18 Strands 500
ST28-18xT29 28 6 Squares 18 Strands 500
ST30-18xT29 30 6 Squares 18 Strands 500
