Heavy Duty Tower Erection Anchor Tools , Ground Anchoring For Constraction
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Application

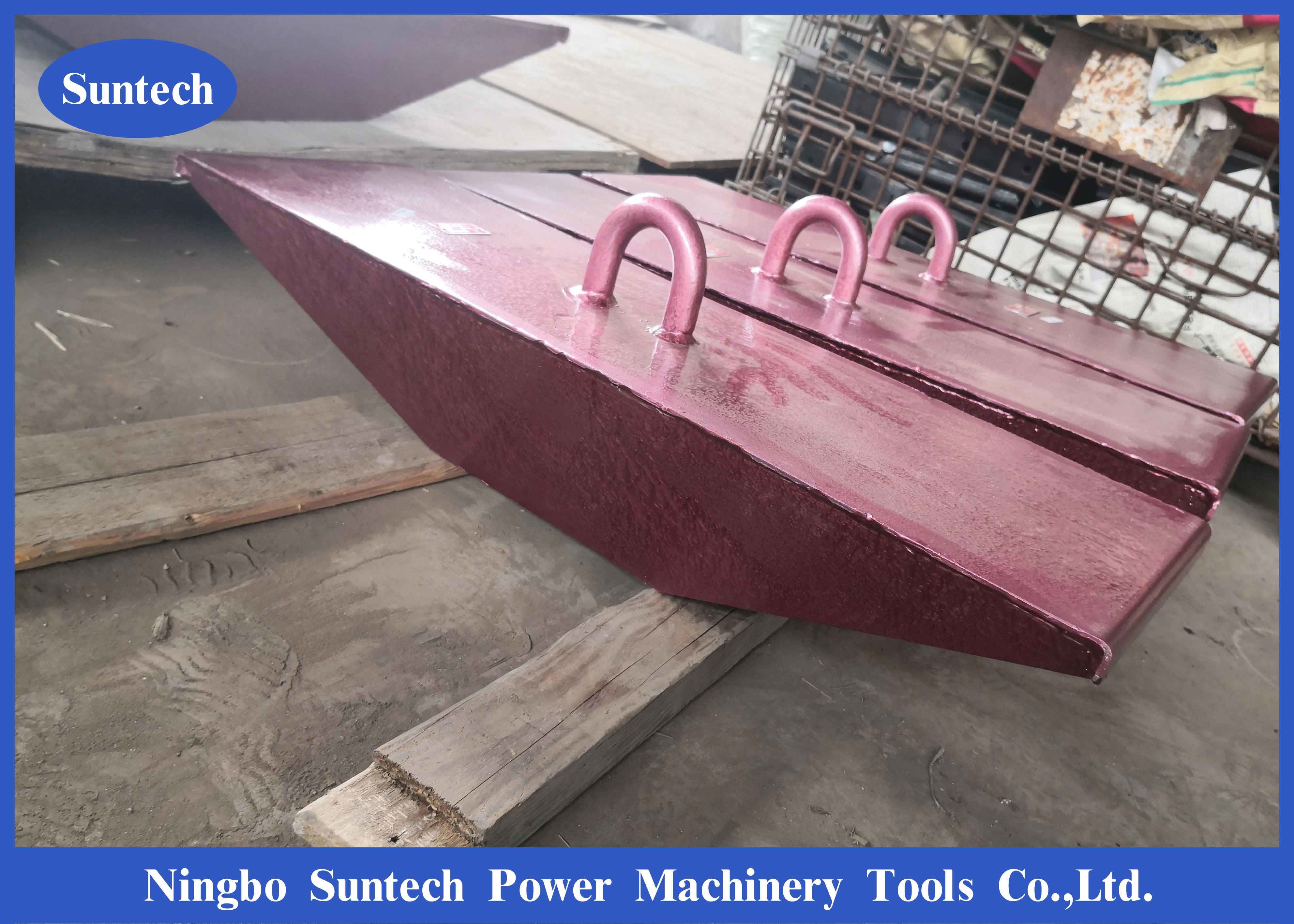

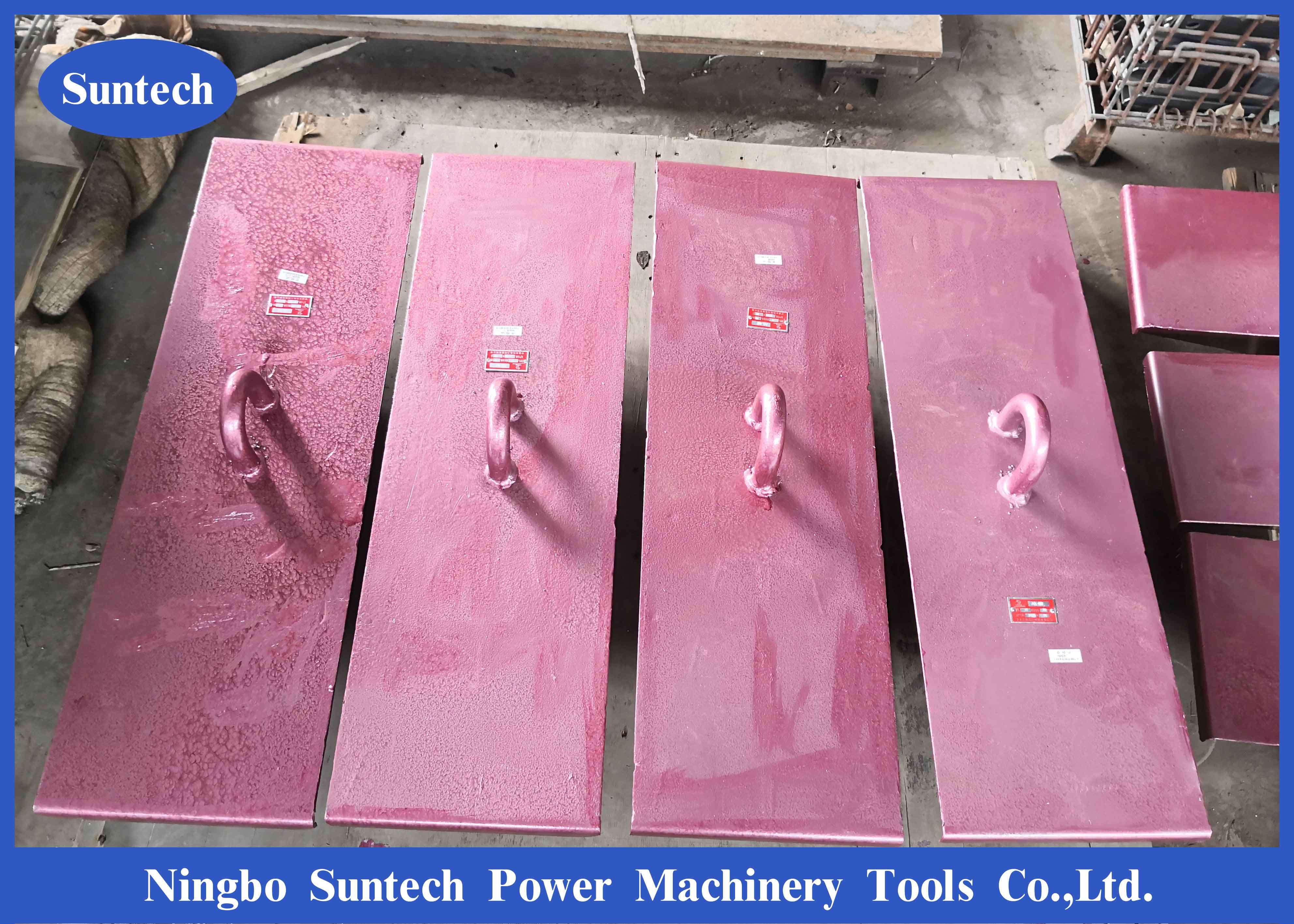

This ground anchor is applied to fixing and fastening the winches, conductor pullers, conductor tensioners, blocks and temporary pulling ropes in line construction. The anchor is of welded structure of steel plate with corrosion-resistant primer on its surface, and it is durable in its quality. Bury the anchor under the ground in appropriate depth and make it well tamped, lead the steel rope which fixed on it to its direction upon the ground.
Item number | Model | Allowable | Valid depth(m) | Main size(mm) | Weight(kg) | |||
pull(KN) | A | B | C | d | ||||
2120 | SDM3 | 30 | 1.8 | 800 | 250 | 150 | Φ25 | 22.5 |
2121 | SDM5 | 50 | 1.8 | 900 | 270 | 180 | Φ28 | 30 |
2122 | SDM10 | 100 | 2 | 1200 | 290 | 220 | Φ36 | 55 |
2123 | SDM16 | 160 | 2.5 | 1500 | 500 | 258 | / | 105 |
