Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | LS-8 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 7-9 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pcs per month |
| Name: | Cable Drum Trailer | Model: | LS-8 |
|---|---|---|---|
| Load: | 8T | Using: | Transporting Cable Reel |
| Material: | Steel Frame | Apply: | Underground Site |
| High Light: | Hydraulic Wire Reel Trailer,80KN Wire Reel Trailer,8T Underground Cable Installation Trailer |
||

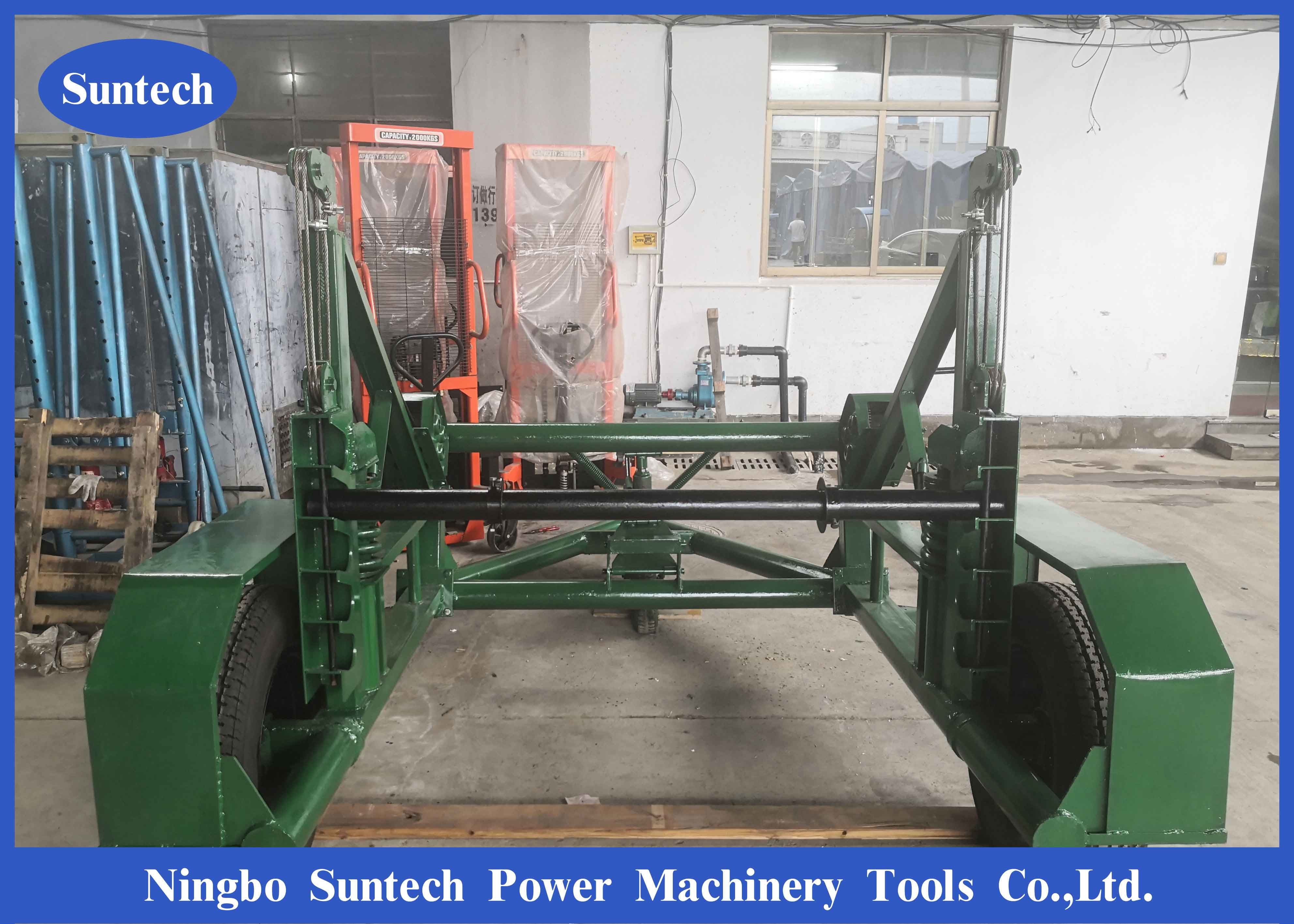

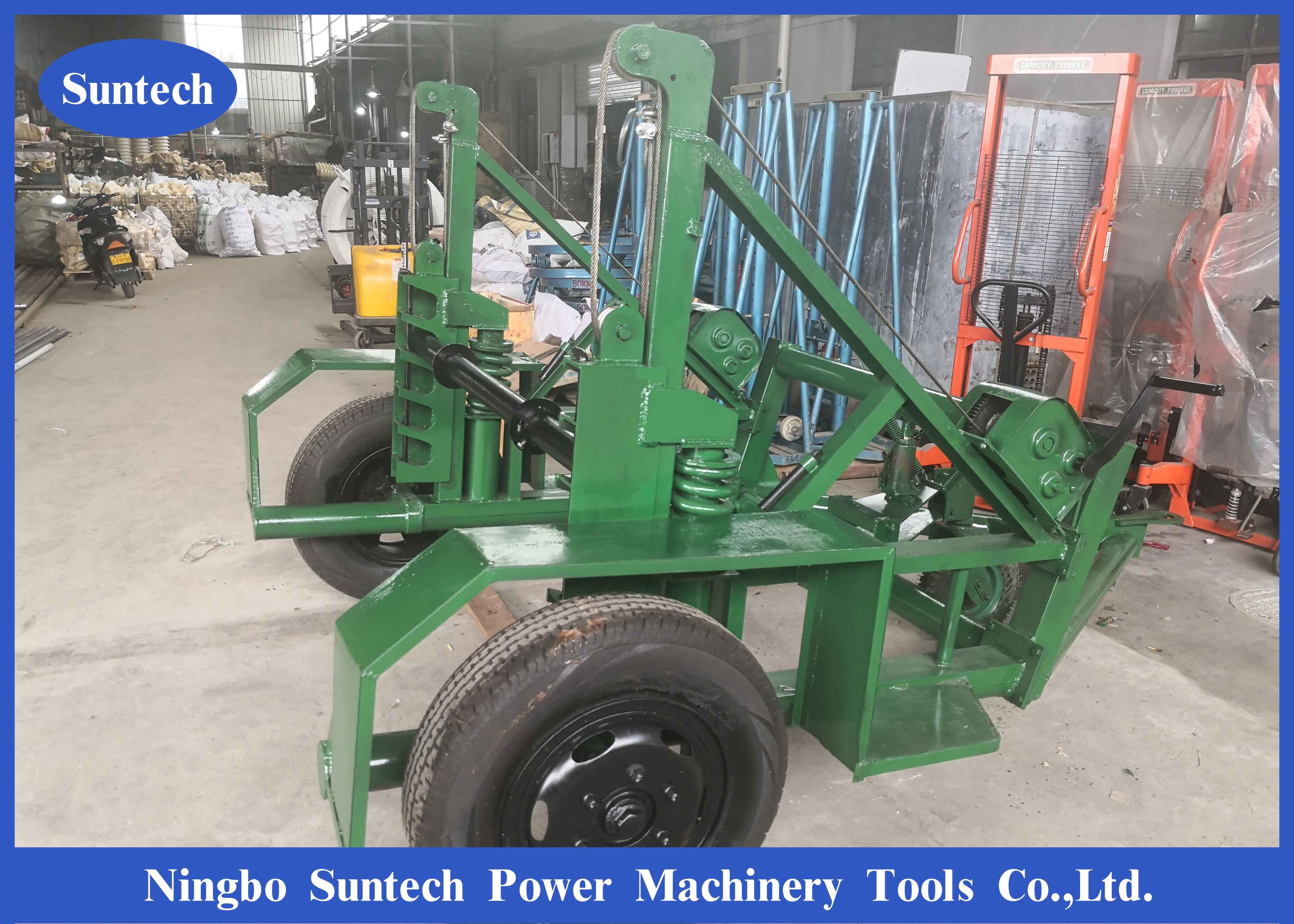

Application 80 KN Hydraulic Cable Reel Trailer Steel Material For Transporting Cable Reel
1. Uses in the large-scale reel laying
2. Loading and unloading.
3. The transportation.
Technical data of 80KN Hydraulic cable reel drum trailer for 3300mm coil diameter
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-8T | 8T | 2300 | ≤3300 | ≤1750 | 4300×3200×2700 |
Description: 80KN Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel .This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.
Cable drum trailer, cable reel trailer,Technical Data
Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Detailed Description
1. This strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient.
2. Uses in loading and unloading, the transportation, the large-scale reel laying.
3. Of course you can according to the need, have custom-made the size.
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Contact Person: Peter
Tel: 86-13958364836
