Transmission Line Single Large Diameter Conductor Stringing Blocks

1 set
MOQ
Negotiated
Price
Transmission Line Single Large Diameter Conductor Stringing Blocks
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stringing Pulley Block
Sheave Material: MC Nylon
Frame: Steel Tube
Rated Load: 20KN-100KN
Apply: Constructure Site
Warranty: At Least 1 Year
Highlight:

Bundled Conductor Stringing Blocks

,

Transmission Line Conductor Stringing Blocks

,

Steel Tube Frame Wire Pulling Blocks
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO & CE
Model Number: SHDN,SHD
Payment & Shipping Terms
Packaging Details: Containers By Sea
Delivery Time: 10-15 DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets per month
Product Description

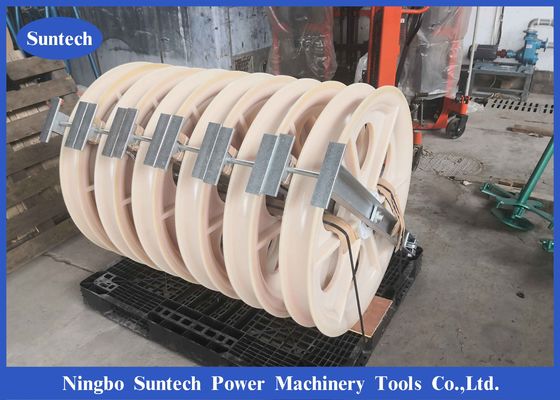

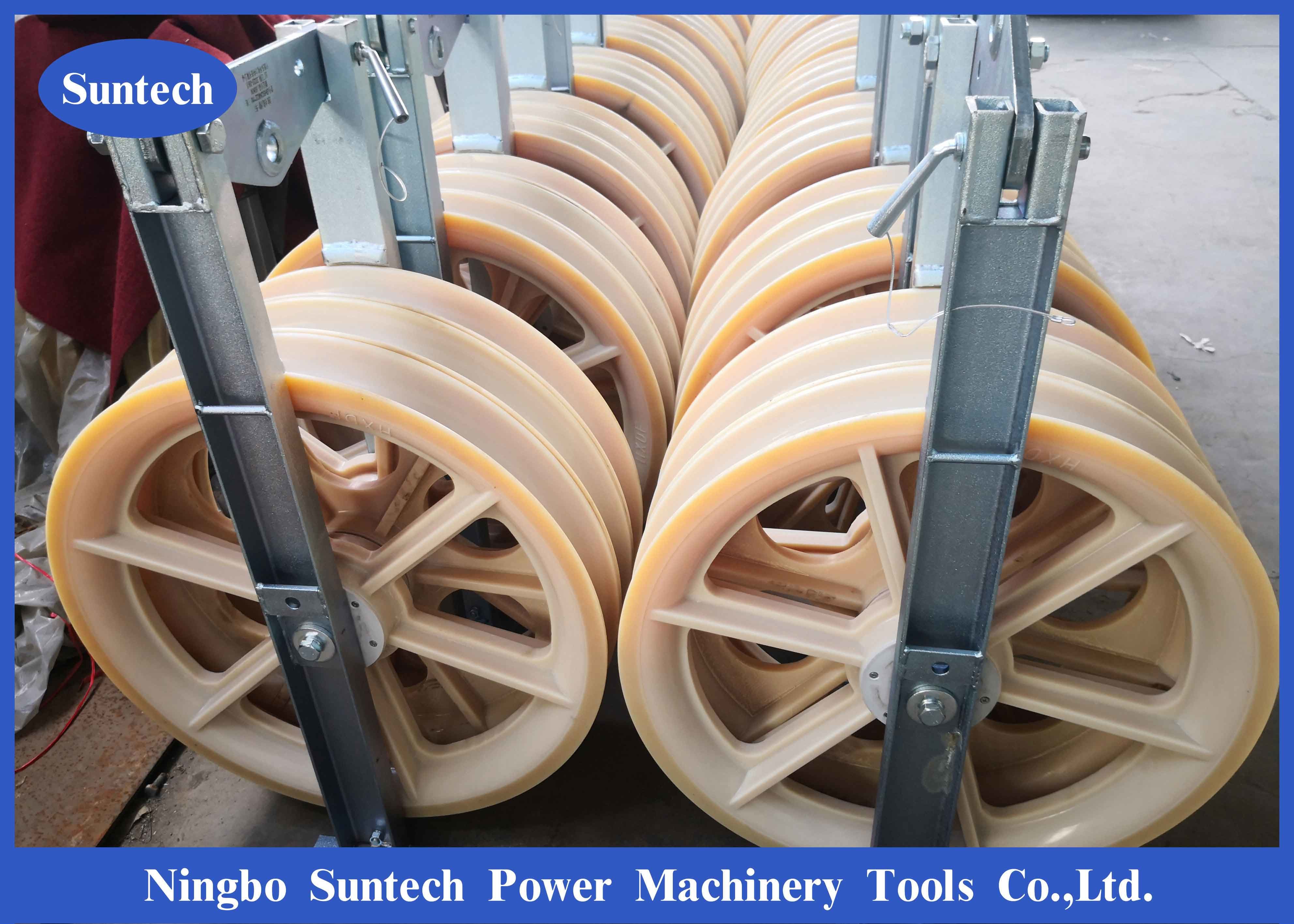

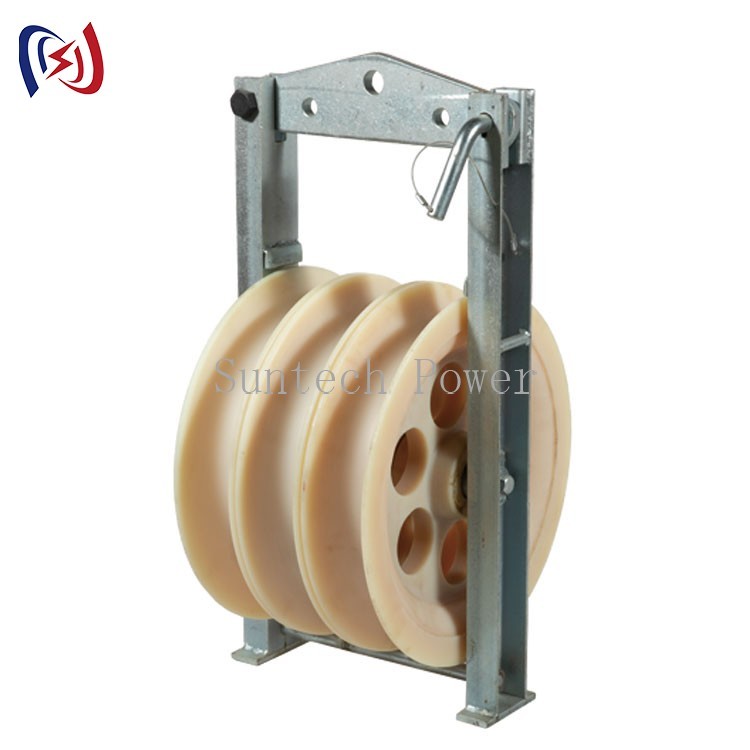

Transmission Line Single Large Diameter Conductor Stringing Blocks



Application:

It is suitable to string stranded aluminum and ACSR conductors on tangent structures. All the sheaves are

mounted on ball bearings. The frame is made of galvanized steel. Compression sleeves, swivel connectors,

and pulling rope connectors can pass through the groove.

Note:

1.Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks

could be supplied on request.

2.The data in the model means the diameter of sheave X width of sheave (mm).

Shipment

1. The blocks will be shipped in container or by air.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Package

1. The blocks will be loaded in plywood case.

2. It also can be packed in wooden case or steel frame case.



Model Wheel size Diameter x Width Conductor size Rated load Weight Wheel material
(mm) (mm2) (kN) (kg)
SHD-508X75 508X75 ≤400 40 85.5 Middle steel
SHD-660X100 660X100 ≤500 20 106 Two Nylon
SHDN-508X75 508X75 ≤400 40 60 Nylon
SHDN-660X100 660X100 ≤500 40 85
SHDN-822X110 822X110 ≤630 60 100
SHDN-916X110 916X110 ≤800 80 140
SHDN-1040X125 1040X125 ≤1000 110 210
SHDNN-255X110 255X110 ≤630 100 160



Transmission Line Single Large Diameter Conductor Stringing Blocks 0
