Name: Transmission Line Helicopter Bundled Conductor Stringing Pulley Block
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SHDN822
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Max Suitable Conductor: LGJ630

Sheave Size: 822X710X110mm

Material: Nylon, Steel Frame

Rated Load: 60KN

Weight: 118kg

Warranty: 1 Year

Highlight:

Conductor Stringing Pulley Block System

CE Transmission Line Pulley Block System

Transmission Line Conductor Stringing Block

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO & CE

Model Number: SHDN822

Payment & Shipping Terms

Packaging Details: Exported Cartons and Pallets

Delivery Time: 7-9 DAYS AFTER DEPOSIT

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Gallery

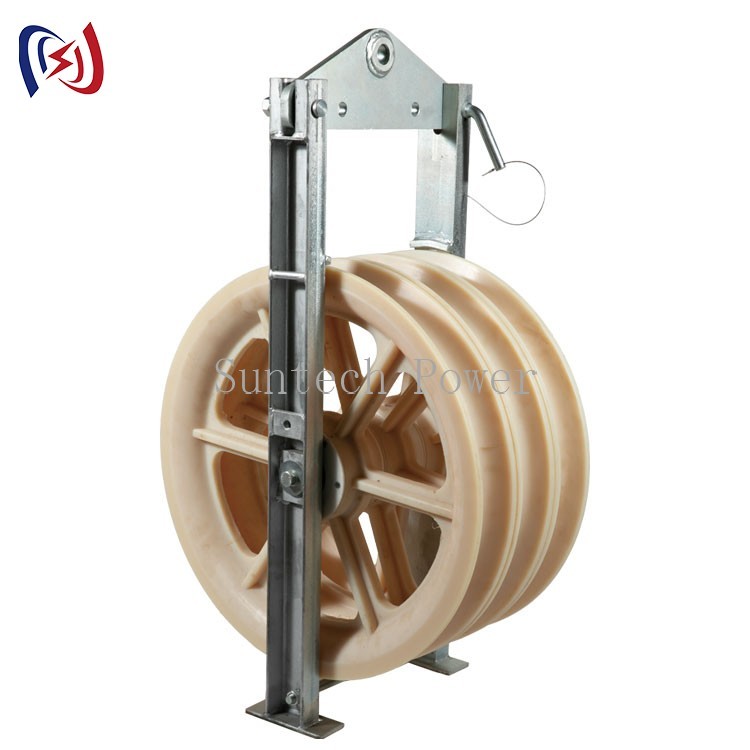

Transmission Line Helicopter Bundled Conductor Stringing Pulley Block

Product Description

Transmission Line Helicopter Bundled Conductor Stringing Pulley Block

1. Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.

2. Description:

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

660MM stringing blocks are used for stringing medium size conductor (26-31 mm) in overhead transmission line construction.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

Model	Wheel size Diameter x Width	Conductor size	Rated load	Weight	Wheel material
Model	(mm)	(mm2)	(kN)	(kg)	Wheel material
SHD-508X75	508X75	≤400	40	85.5	Middle steel
SHD-660X100	660X100	≤500	20	106	Two Nylon
SHDN-508X75	508X75	≤400	40	60	Nylon
SHDN-660X100	660X100	≤500	40	85
SHDN-822X110	822X110	≤630	60	100
SHDN-916X110	916X110	≤800	80	140
SHDN-1040X125	1040X125	≤1000	110	210
SHDNN-255X110	255X110	≤630	100	160

Transmission Line Helicopter Bundled Conductor Stringing Pulley Block 0
