Home ProductsConductor Stringing Tools

Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks

Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks

  • Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks
  • Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks
Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SZ2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the lastest price
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 5-7days after payment
Payment Terms: L/C, T/T,, Western Union, MoneyGram
Supply Ability: 800pcs per month
Contact Now
Detailed Product Description
Materials: High Strength Steel Available: Running Board For Conductor Stringing Blocks
Width: 100mm Feature: Conductor Are Independent
Warranty: At Least One Year Weight: 90kg
High Light:

Running Headboards Transmission Line Conductor

,

Pulley Stringing Blocks Transmission Line Conductor

,

100mm Power Line Conductor

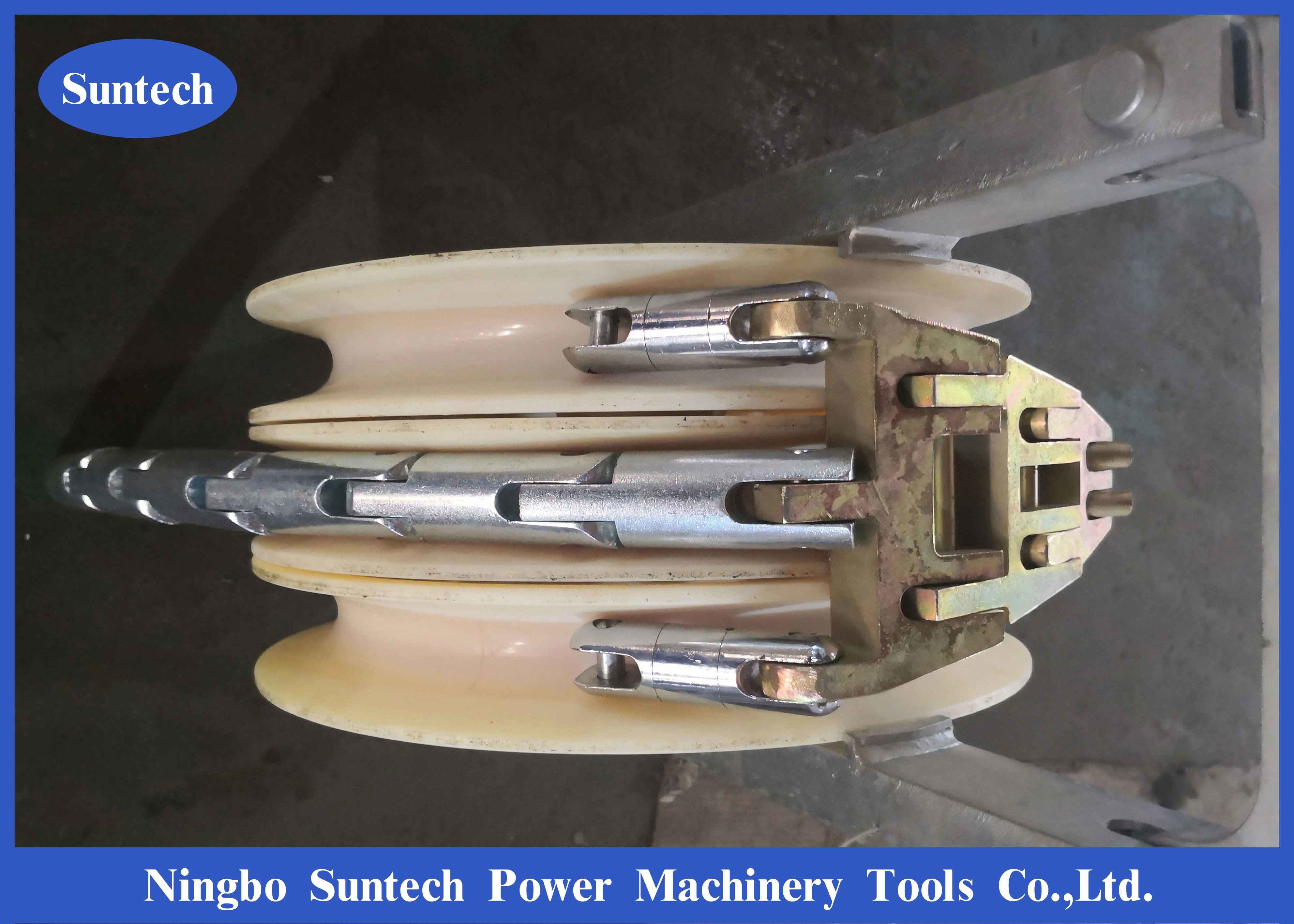

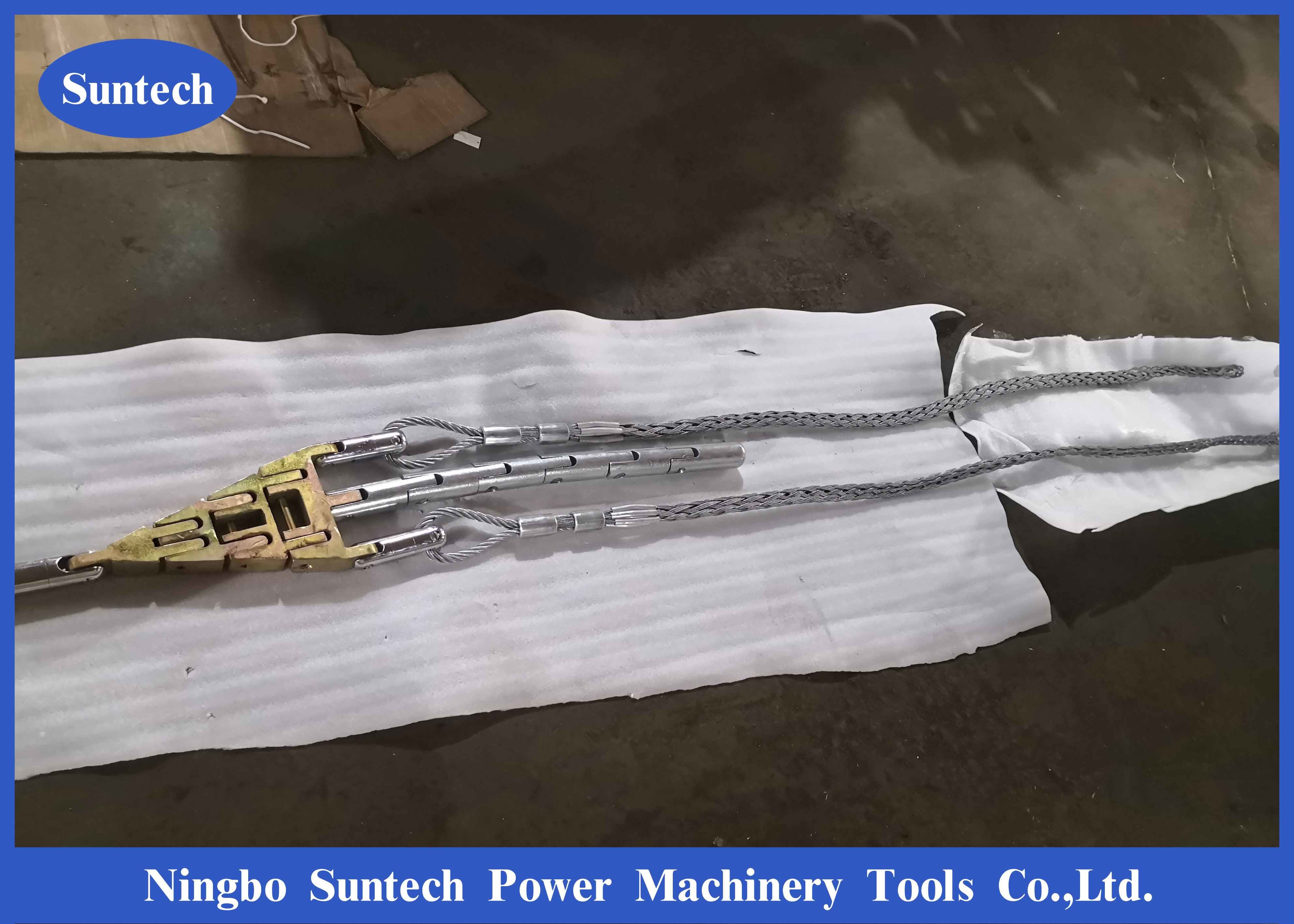

Running Head Boards transmission line conductor For Pulley Stringing Blocks



Running board for two/2 or three/3 bundles conductors is specifically designed to connect the pulling rope, with 2 or 3 bundled conductors.The equipment includes the necessary rope lengths and swivel joints; quantity and models are indicated in the following tables. Special models with different characteristics can be designed according to customers' requirement.


Notes:Can be customized according to the seecification of other stringing blocks.

Model Rated load(KN) Weight(kg) Applicable tackle width of wheel Feature
SZ2-8 80 17 75 Independent
SZ2-8A 19 100
SZ2-8B 19.5 110
SZ2A-8 90 100 Poising sheave
SZ2A-8T 100 110
SZ2B-13 130 55 110 Independent
SZ2C-13 50 110
SZ2B-18 180 90

125



Running Head Boards Transmission Line Conductor For Pulley Stringing Blocks 0
