Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Aluminum Sheaves |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Boxes and pallets |
| Delivery Time: | 7-15 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Materials: | Aluminum With Rubber Lined | Product Name: | Pulley Block |
|---|---|---|---|
| Weight: | 5kg For One Sheave | Application: | Power Line |
| Service: | Good After-sales Service | Size: | 308*80mm, 408*80mm Or Customize |
| High Light: | Aluminum Sheaves Conductor Stringing Block,Triple Conductor Stringing Block,Neoprene Triple Sheave Pulley Block |
||

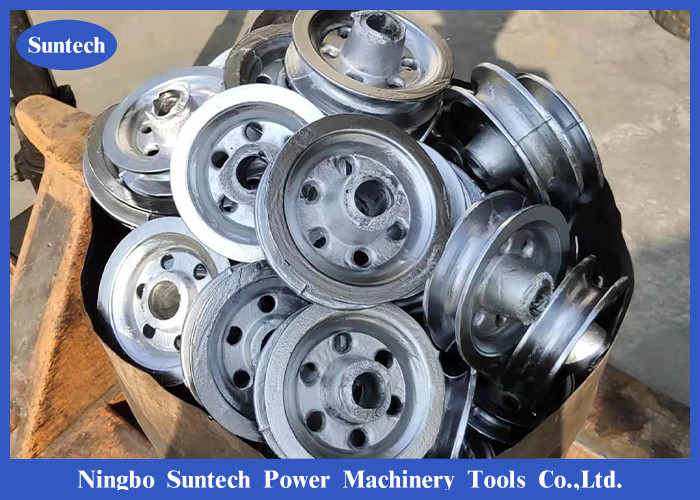

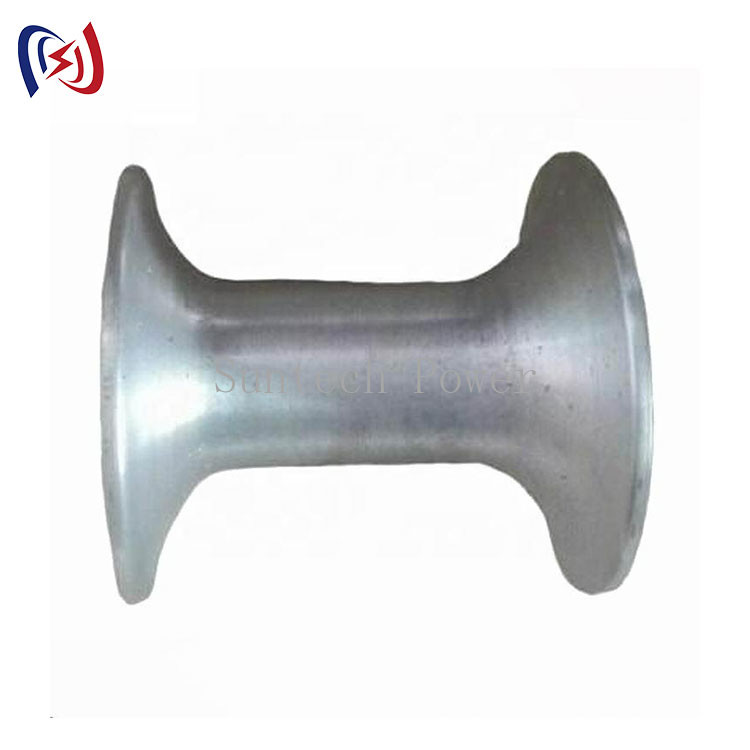

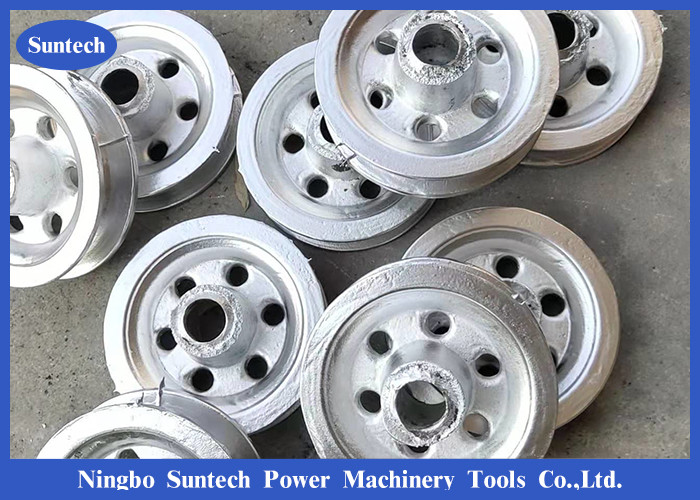

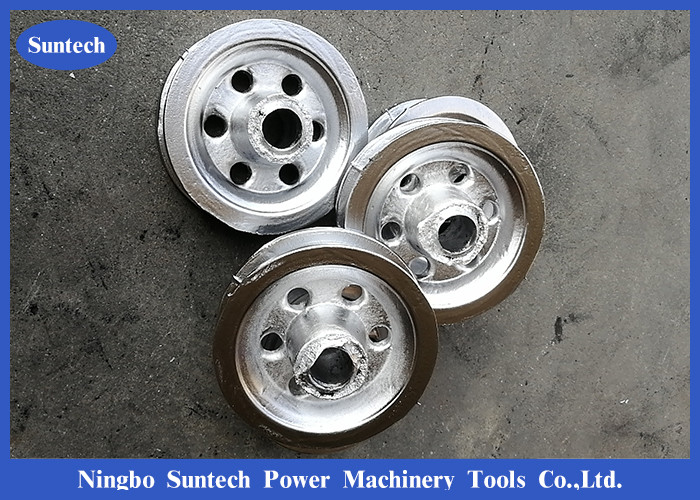

Conductor Stringing Block Aluminum Sheaves For Stringing Pulley With Neoprene Lined
We are a professional manufacture of conductor stringing blocks (conductor pulleys) in China, products are exported to more
than 50 countries in the world. We produce single sheave, 3 sheaves, 5 sheaves, 7 sheaves, 9 sheaves stringing blocks,
include helicopter stringing blocks. Our stringing blocks are produced under special and strict process: 1. Steel frames are
welded by welding robot. 2. Shot peening surface treatment before galvanization. 3. Best ball bearings and special grease
according to different conditions. 4. Strict assemble procedure, load test before ex-works.
Remarks:
1. The product is classified as hook style, clevis, etc. it must be explained clearly in writing when ordering, exceptional specification
can be customized.
2. The meading of model is outside diameter of sheave × with of sheave (mm)
Specifications
| Item number | Model |
Diameter(mm) |
Width(mm) |
Blank weigh(kg) |
| 10010L | 80*50 | 80 | 50 | 0.2 |
| 10011L | 120*35 | 120 | 35 | 0.3 |
| 10012L | 120*58 | 120 | 58 | 0.5 |
| 10013L | 120*80 | 120 | 80 | 0.6 |
| 10014L | 120*130 | 120 | 130 | 0.7 |
| 10015L | 120*200 | 120 | 200 | 1.2 |
| 10016L | 140*160 | 140 | 160 | 0.9 |
| 10017L | 140*210 | 140 | 210 | 1.1 |
| 10018L | 160*40 | 160 | 40 | 0.5 |
| 10020L | 160*230 | 160 | 230 | 1.7 |
| 10021L | 200*40 | 200 | 40 | 0.6 |
| 10022L | 200*60 | 200 | 60 | 0.8 |
| 10024L | 250*60 | 250 | 60 | 1.2 |
| 10026L | 270*60 | 270 | 60 | 1.6 |
| 10027L | 320*60 | 320 | 60 | 1.9 |
| 10028L | 320*80 | 320 | 80 | 2.2 |
| 10029L | 408*80 | 408 | 80 | 4.1 |
| 10050L | 508*75 | 508 | 75 | 6.0 |
| 10051L | 508*100 | 508 | 100 | 7.0 |
| 10052L | 660*100 | 660 | 100 | 10.0 |
| 10055L | 822*110 | 822 | 110 | 18.0 |
Contact Person: Peter
Tel: 86-13958364836
