Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block

1 pcs
MOQ
Get newest price
Price
Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block
Features Gallery Product Description Request A Quote
Features
Specifications
Materials: Aluminum Or Nylon
Name: Stringing Blocks
Apply: Constructure Works
Use: Pulling Conductor
Weight: 25kg
Size: 308*80mm Pulley Block
Highlight:

Conductor Stringing Sheave Pulley Block

,

Neoprene Lined Sheave Pulley Block

,

Aluminum Cable Pulley Wheel

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Conductor Stringing Pulley Blocks
Payment & Shipping Terms
Packaging Details: Exported Wooden Boxes
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Product Description

Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block



Application:

  • Widely used in overhead power line construction. Used to release conductors. It can be passed byconnectors, swivel joints.
  • A block and tackle system which combined with many pulleys is often in conjunction with a winch, mast or other lifting equipments and it is usually used in construction and installation work like lifting tower, stringing, hoisting works. It can be also used in lifting and hoisting works of dock, shipyard, warehouse and so on.



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either



Specifications

Item number
Model

Diameter(mm)

Width(mm)

Blank weigh(kg)
10010L 80*50 80 50 0.2
10011L 120*35 120 35 0.3
10012L 120*58 120 58 0.5
10013L 120*80 120 80 0.6
10014L 120*130 120 130 0.7
10015L 120*200 120 200 1.2
10016L 140*160 140 160 0.9
10017L 140*210 140 210 1.1
10018L 160*40 160 40 0.5
10020L 160*230 160 230 1.7
10021L 200*40 200 40 0.6
10022L 200*60 200 60 0.8
10024L 250*60 250 60 1.2
10026L 270*60 270 60 1.6
10027L 320*60 320 60 1.9
10028L 320*80 320 80 2.2
10029L 408*80 408 80 4.1
10050L 508*75 508 75 6.0
10051L 508*100 508 100 7.0
10052L 660*100 660 100 10.0
10055L 822*110 822 110 18.0

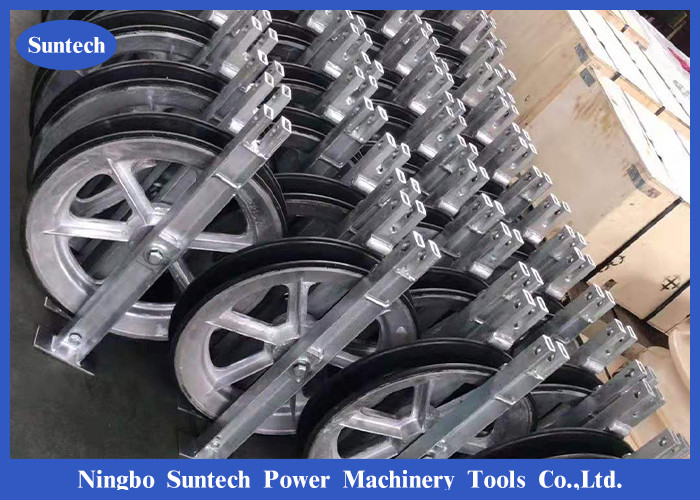

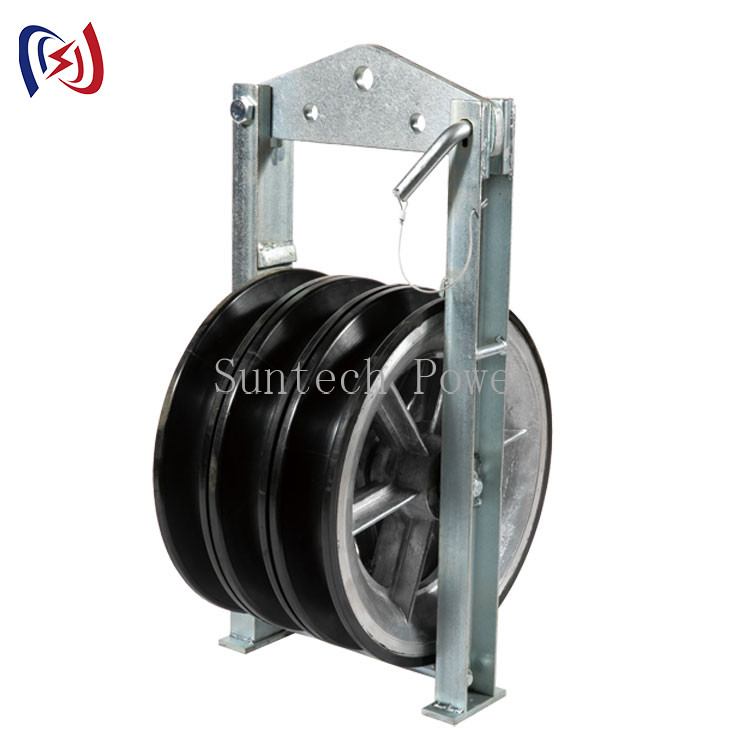

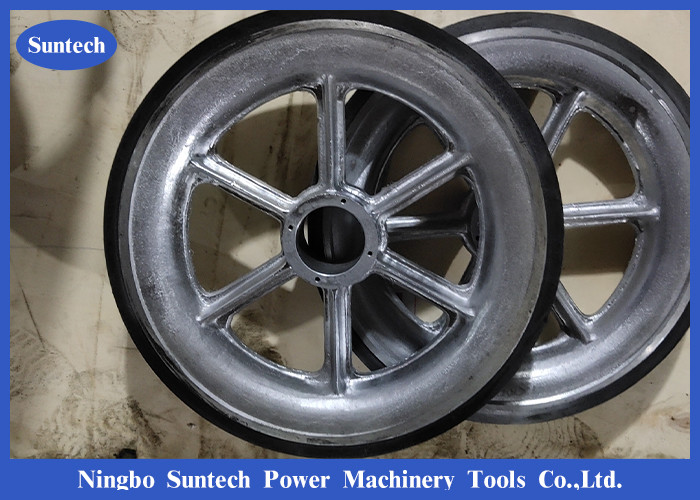

Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block 0



Aluminum Sheaves Neoprene Lined Conductor Stringing Pulley Block 1
