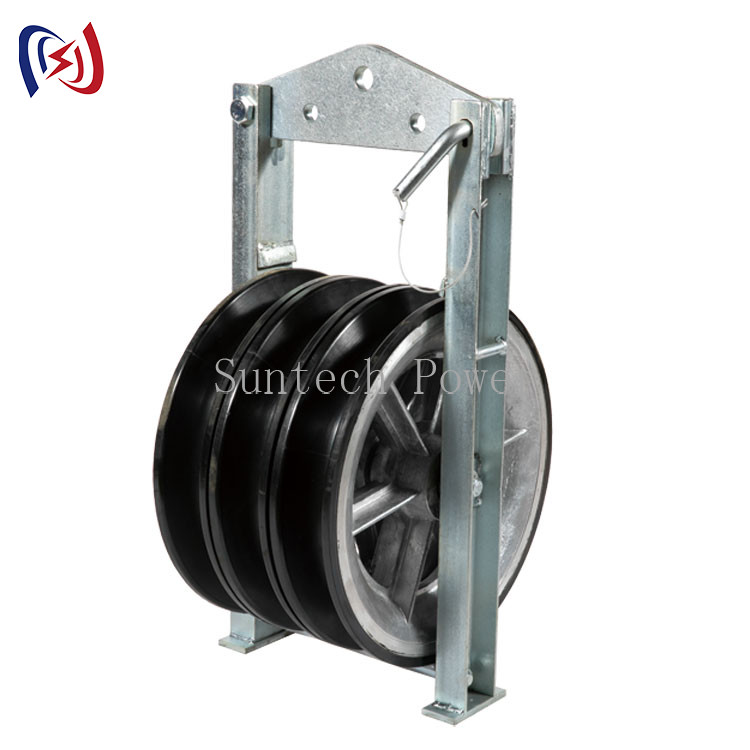

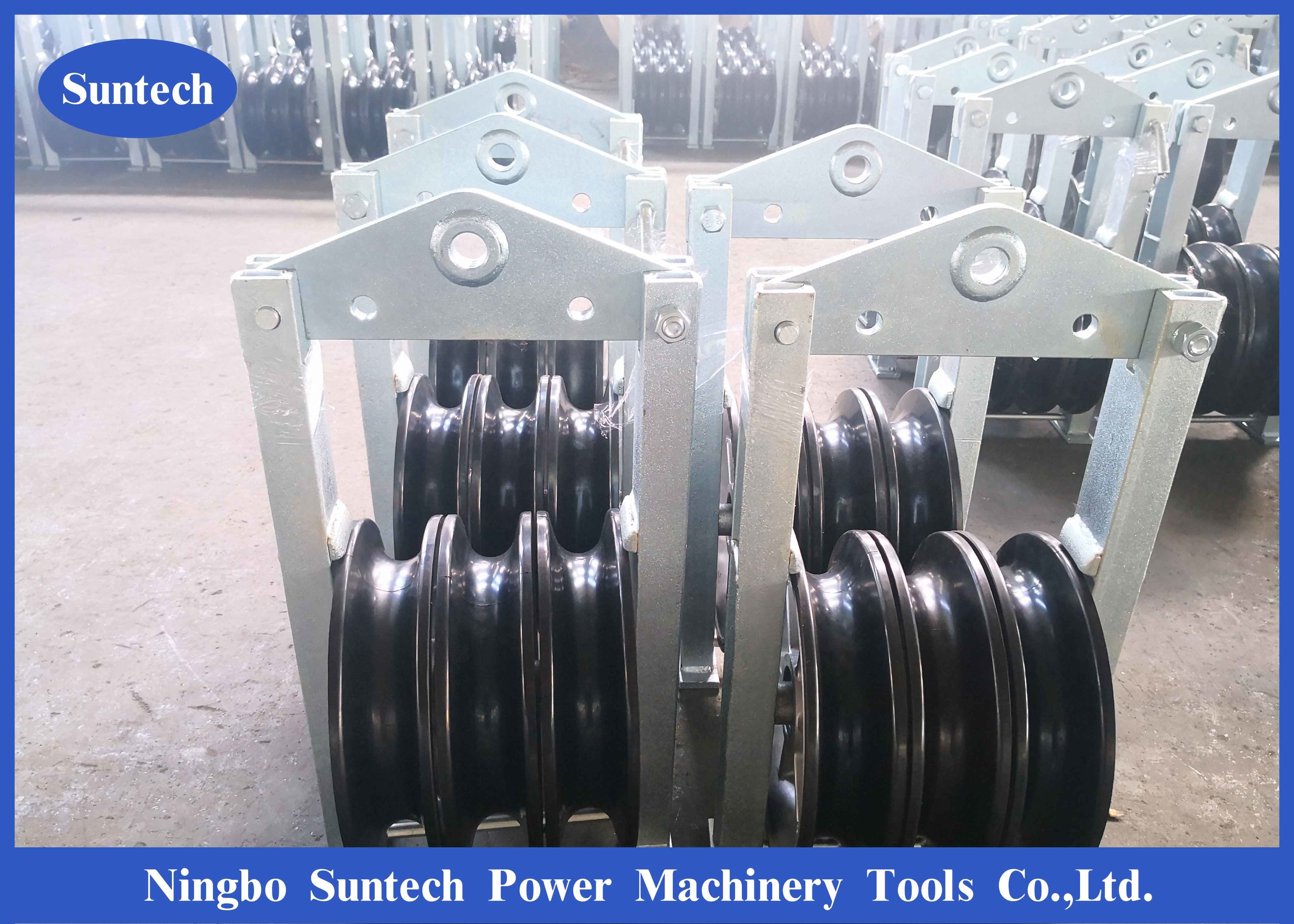

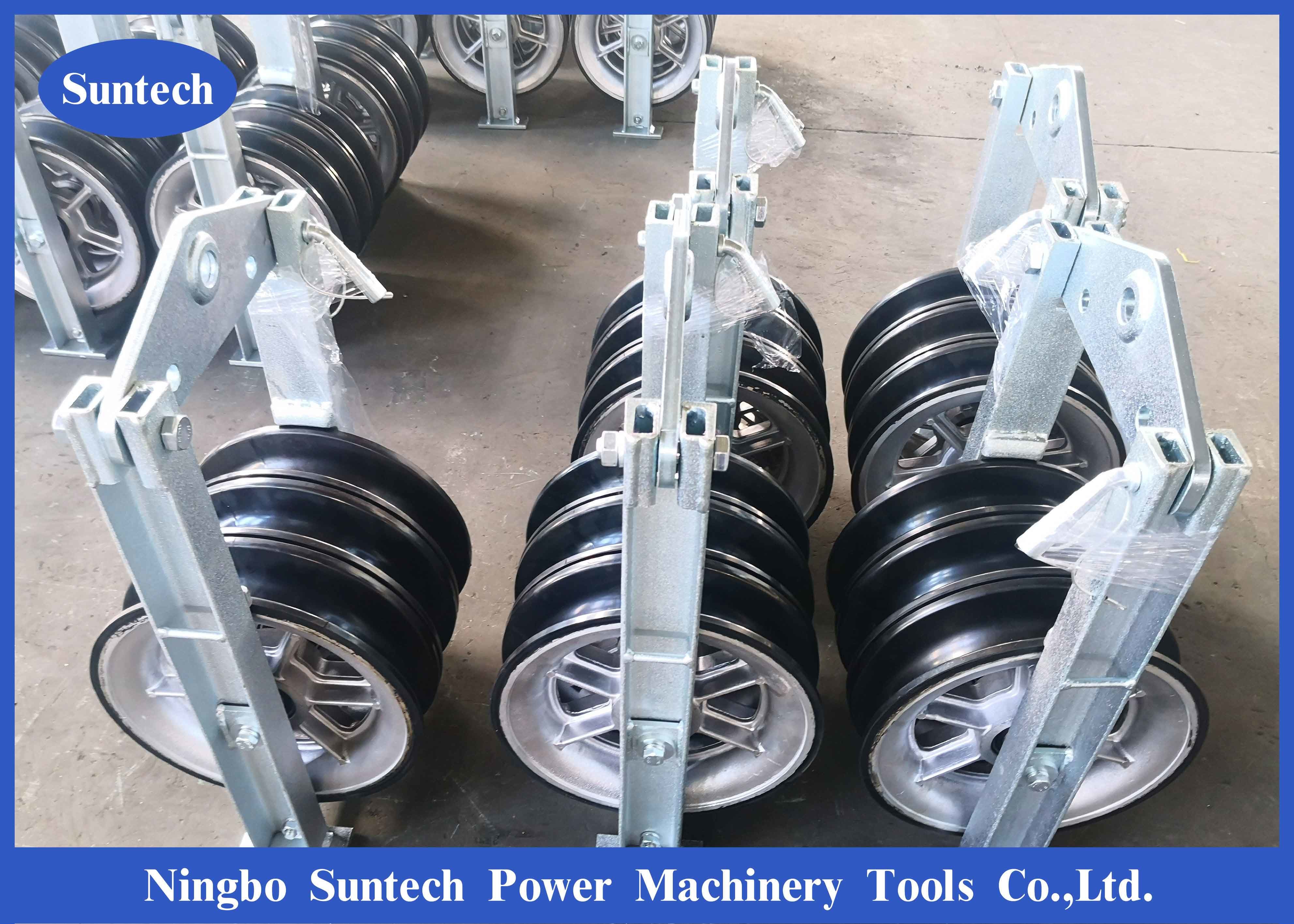

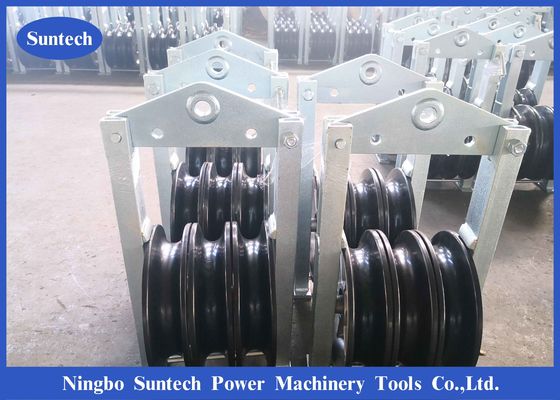

Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block

Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block

  • Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block
  • Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block
Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: Aluminum Sheaves Stringing Blocks
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get Latest Price
Packaging Details: Exported cartons or cases
Delivery Time: 15-20 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Name: Aluminum Pulley Block Material: Aluminum With Rubber Lined
Dimension: Customized Usage: Site Power
Apply: Conductor Pulling Warranty: At Least One Year
High Light:

Crosshead Conductor Stringing Block

,

Removable Locking Pins Conductor Stringing Block

,

Neoprene Lined Aluminum Pulleys

Crosshead Neoprene Lined Aluminum Conductor Stringing Block With Removable Locking Pins



Aluminum Pulleys & Sheaves is the latest products developed by us,which is mainly used in large hoist as the passive ture,

to lighten the weight of itself and prolong the longevity of cable.

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.



Specifications

Item number
Model

Diameter(mm)

Width(mm)

Blank weigh(kg)
10010L 80*50 80 50 0.2
10011L 120*35 120 35 0.3
10012L 120*58 120 58 0.5
10013L 120*80 120 80 0.6
10014L 120*130 120 130 0.7
10015L 120*200 120 200 1.2
10016L 140*160 140 160 0.9
10017L 140*210 140 210 1.1
10018L 160*40 160 40 0.5
10020L 160*230 160 230 1.7
10021L 200*40 200 40 0.6
10022L 200*60 200 60 0.8
10024L 250*60 250 60 1.2
10026L 270*60 270 60 1.6
10027L 320*60 320 60 1.9
10028L 320*80 320 80 2.2
10029L 408*80 408 80 4.1
10050L 508*75 508 75 6.0
10051L 508*100 508 100 7.0
10052L 660*100 660 100 10.0
10055L 822*110 822 110 18.0



Transmission Line Neoprene Lined Aluminum Triple Conductor Stringing Block 0
