Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | NINGBO CHINA |
| Brand Name: | Suntech |
| Certification: | ISO9001,CE |
| Model Number: | YJD1000 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 5-7 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pcs per month |
| Crimping Force:: | 100T | Model: | YJD1000 |
|---|---|---|---|
| Crimping Type: | Hexagon Crimping | Tube: | Aluminum And Steel |
| Use: | Pressing | Item: | 16103A |
| High Light: | 80mpa pump hydraulic crimping head,100T hydraulic crimping head,gasoline pump hydraulic crimping head |
||

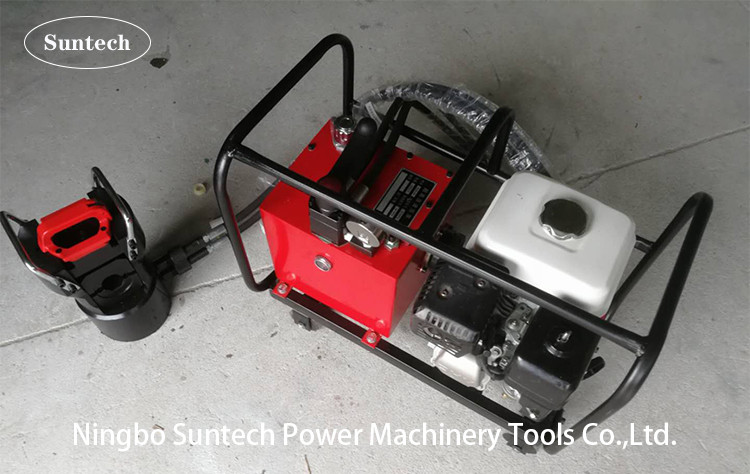

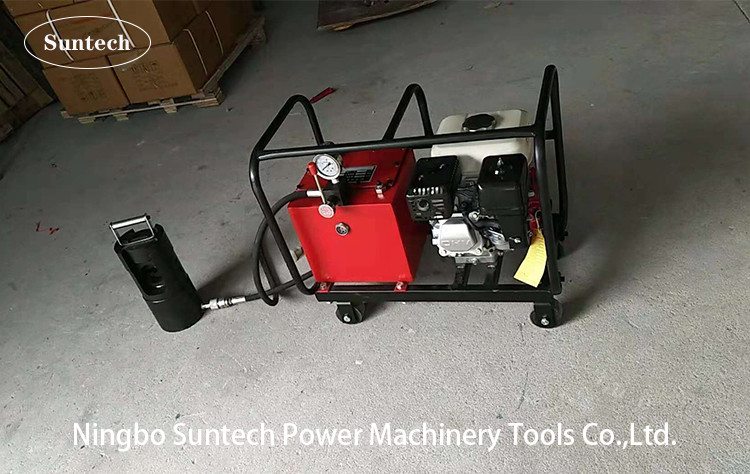

100 Ton Hydraulic Compressor Head with 80Mpa Honda Gasoline Pump for Press Tube
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All can accept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
1. Suntech Brand
2. Hydraulic compressor tools for pressing aluimnum tube and steel tue
3. Die size can accoridngly make per your drawings

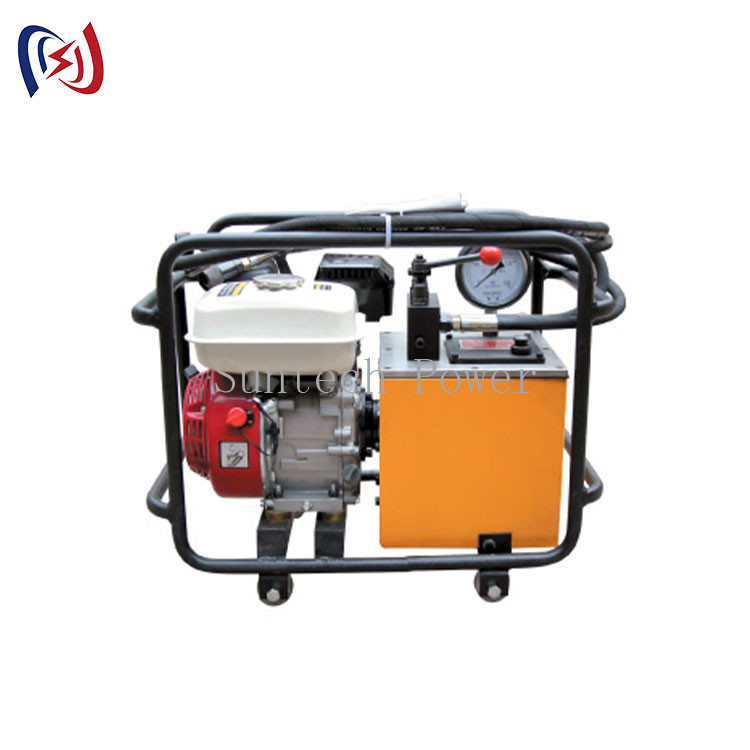

4. work with 80MPA hydraulic electrical pump or gasoline pump
5. Hexa head crimping
| Item number | 16103 | 16103A | 16104 | 16105 | 16106 |
| Model | YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
| Crimping | 60T | 100T | 125T | 200T | 300T |
| force | |||||
| Crimping | 14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
| range | |||||
| Crimping | hexagon crimping | hexagon crimping | |||
| type | |||||
| Stroke | 24mm | 24mm | 35mm | 35mm | |
| Heigth | approx.370mm | approx.480mm | |||
| (KG) | approx.N.W20KG | approx.N.W30KG | approx.N.W50KG | approx.N.W85KG | approx.N.W120KG |
| Weight | G.W30KG | G.W40KG | G.W60KG | G.W95KG | G.W130KG |
| Package | wooden case | wooden case | |||
Contact Person: Peter
Tel: 86-13958364836
