Name: | Hydraulic Tensioner | Max Tension: | 30KN |
---|---|---|---|
Max Speed: | 5km/h | Number Of Grooves: | 5 |
Weight: | 1700 Kg | Site: | Transmission Line |
High Light: | 3t hydraulic cable tensioner,Stringing hydraulic cable tensioner,hydraulic Stringing tensioner 3t |

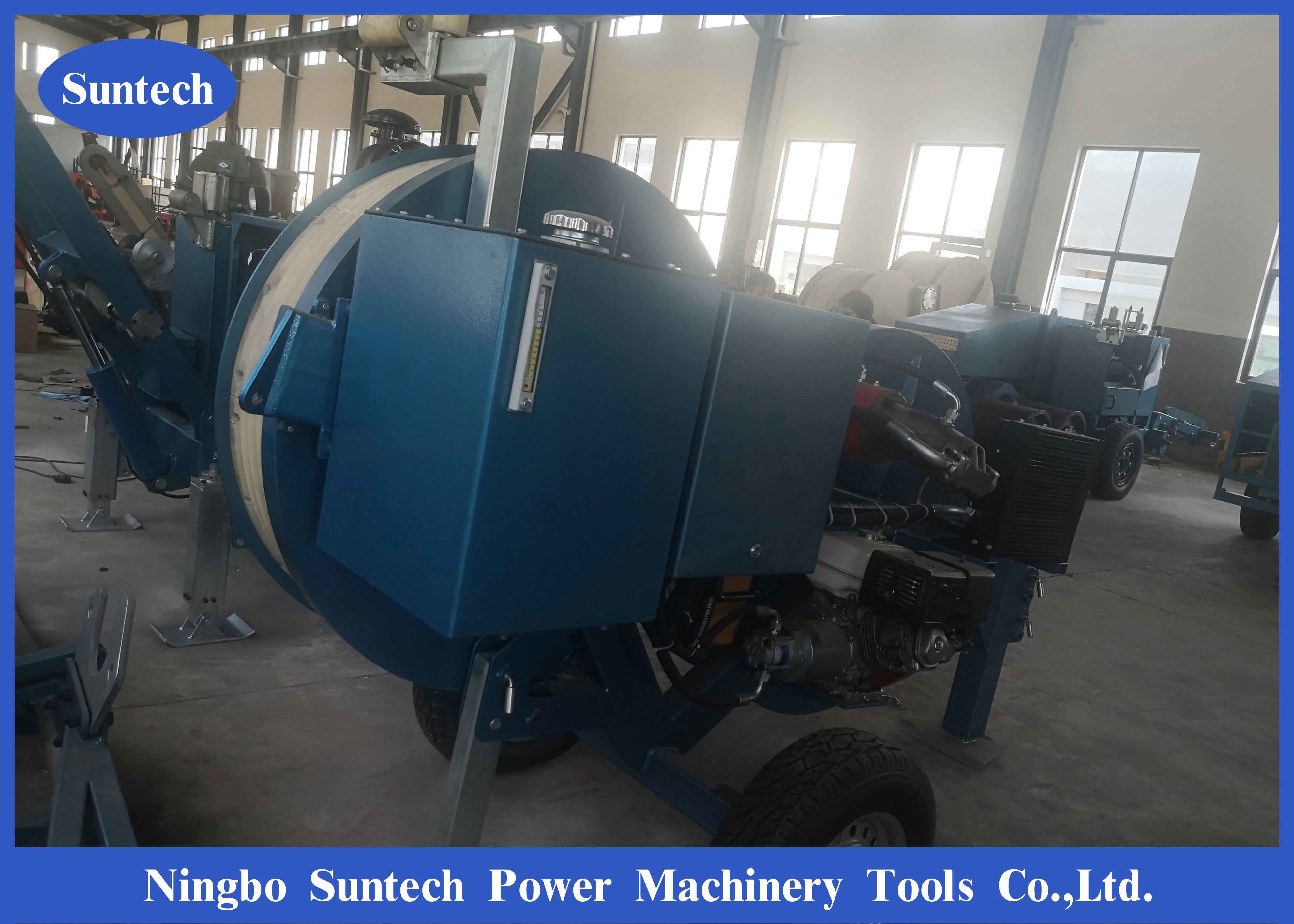

SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
Our SA-YZ30A Hydraulic Tensioner is an ideal product for releasing a variety of electric conductors and ground. Also, it is applicable for the tension stringing operation of both optical fiber composite overhead ground wire (OPGW) and all-dielectric self-supporting optic fiber cable (ADSS).

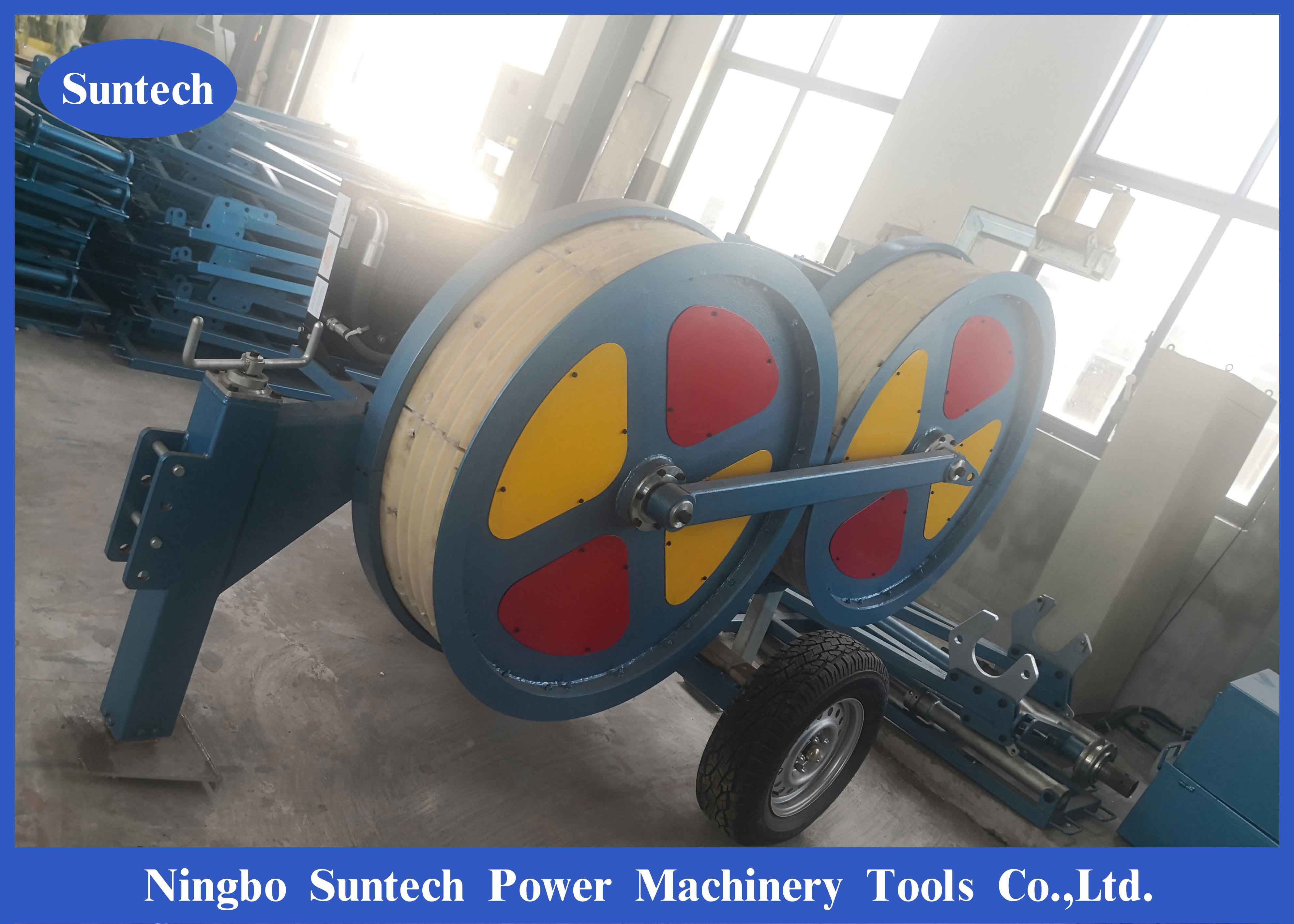

The bullwheel of our SA-YZ30A Hydraulic Tensioner adopts the wear resistant MC nylon lining segments. In addition, the infinitely variable pay-off tension can make the constant tension stringing come true. In case of hydraulic failure, the spring applied hydraulically released multi-plate brake can work automatically to ensure the safe operation.
Uses: be applied in a variety of electric conductors and ground. Also can for the tension stringing operation of both optical diber composite overhead ground wire (OPGW)and all- dielectric self-supporting optic fiber cable(ADSS).
Features:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
1) This Tensioner adopt the wear resistant MC nylon lining segments.
2) The infinitely variable pay-off tension can make the canstant tension stringing come true.
3) Due to the spring applied hydraulically released multi-plate brake, when the hydraulic failure happens,it can still work automatically to enwure the safe operation.
Main Specifications:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
Model | SA-YZ30 Hydraulic Tensioner |
Maximum Tension (kN) | 30 |
Continuous Tension (kN) | 25 |
Maximum Speed (km/h) | 5 |
Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
Number of Grooves | 5 |
Maximum Pullback (kN) | 20 |
Maximum Diameter of Suitable Conductor (mm) | Φ32 |
Engine Power / Speed (kW/rpm) | 11/2200 |
Dimensions (mm) | 3560 × 1600 × 2220 |
Weight (kg) | 1700 |

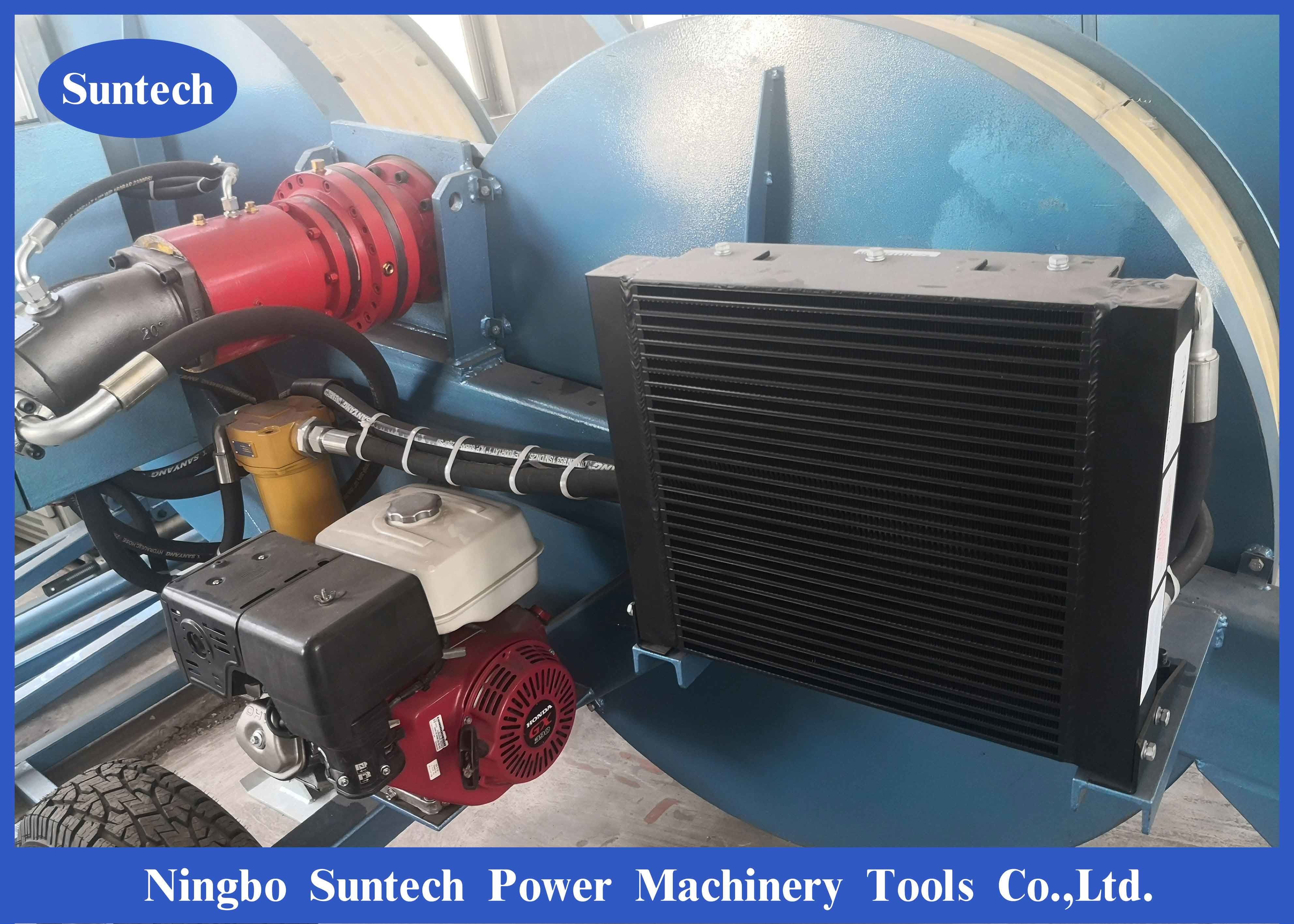

Main Components:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
Engine | Chinese top-brand water-cooled diesel engine |
Main Pump/Motor | Chinese famous-brand pump and motor |
Reducer | RR (Italian) |
Radiator | AKG |
Hydraulic Instrument | WIKA |
Option | Imported engine (Product Model: SA-YZ30B, Item number: 07156) |
