Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope

200 meter
MOQ
Get Latest Price
Price
Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Anti Twisting Braided Steel Rope
Structure: 12 And 18 Strand
Diameter: 9mm-42mm
Breaking Force: 64-172kn
Weight: 0.3-4.22 Kg/m
Feature: High Strength
Highlight:

braided galvanised steel wire rope

,

anti twisting galvanised steel wire rope

,

conductor pulling 9mm galvanised wire rope

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: Galvanised Steel Wire Rope
Payment & Shipping Terms
Packaging Details: Steel Drum Roll and Containers
Delivery Time: 5-10 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500000m per month
Product Description

Conductor Pulling Galvanised Steel Wire Rope / Anti Twisting Braided Steel Rope



Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,

inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc



●Uses :Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.
●Feature: Braided 1960 Mpa high-strength galvanized steel wire .rotation resistance during pulling .
●The specification and length of the steel wire rope can be customized according to your request.



Item number Structure Diameter (mm) Single bundle diameter (mm) Breaking force (kN) Weight (kg/m) Production length (m)
18101 Square eight strands 7 φ2.0 34.38 0.178 1000
18102 9 φ2.5 53.9 0.305
18103 11 φ3.0 76.94 0.386
18104 13 φ3.5 105.04 0.552
18105 15 φ4.0 137.51 0.692
18108 Square twelve strands 9 φ2.0 51.57 0.25
18109 11 φ2.5 80.8 0.458
18110 13 φ3.0 115.4 0.579
18111 15 φ3.5 157.55 0.828
18112 18 φ4.0 206.27 1.038
18113 20 φ4.5 260.3 1.331 800
18114 23 φ5.0 320.82 1.557
18115 25 φ5.5 387.83 1.882
18118 Hexagon twelve strands 11 φ2.5 80.8 0.458 1000
18119 13 φ3.0 115.4 0.579
18120 15 φ3.5 157.5 0.828
18121 18 φ4.0 205.71 1.038
18122 20 φ4.5 260.34 1.331 800
18123 23 φ5.0 320.82 1.638
18124 25 φ5.5 387.82 2.039 600
18125 27 φ6.0 461.5 2.373
18126 28 φ6.2 520 2.6
18127 30 φ6.5 560 3.12
18140 Hexagon eighteen strands 21 φ3.0 173.1 0.87 800
18141 24 φ3.5 236.33 1.242
18151 27 φ4.0 309.4 1.557 600
18152 30 φ4.5 389.28 1.997
18153 33 φ5.0 481.22 2.457
18154 36 φ5.5 581.75 3.059
18154A 39 φ6.0 692.26 3.56
18154B 42 φ6.5 817 4.227

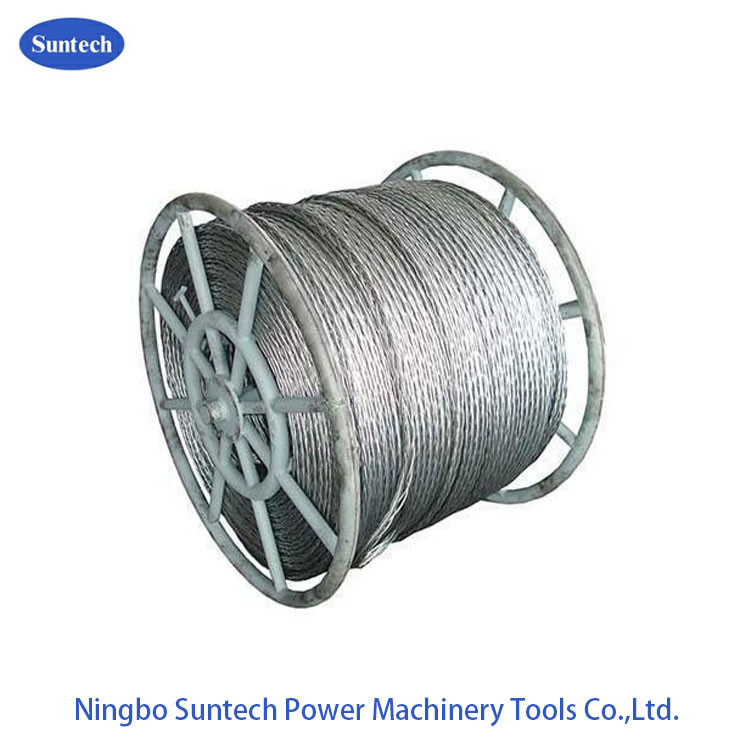

Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope 0

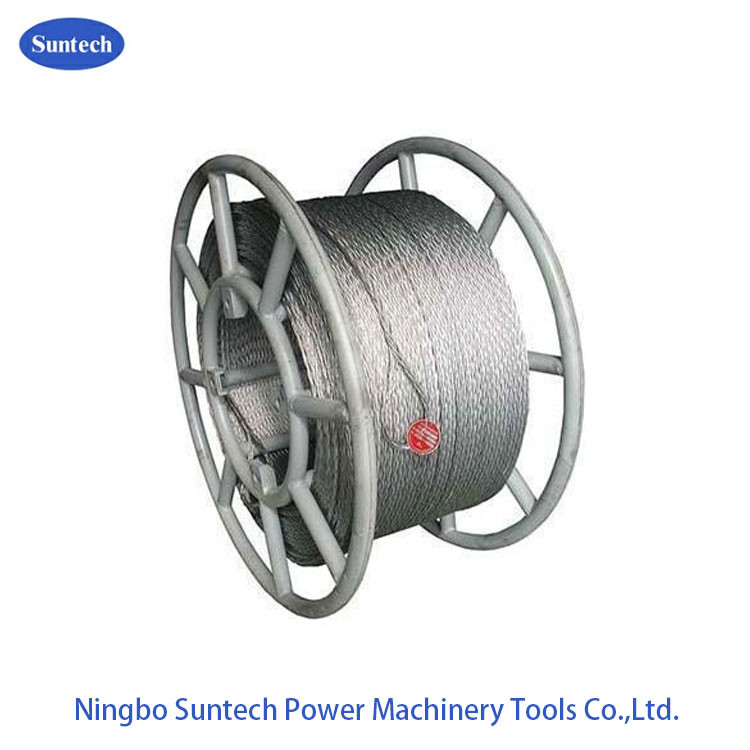

Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope 1



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
