Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Zhejiang,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SI-10A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 800sets/month |
| Feature: | With Small Wheels | Name: | Cable Drum Stand |
|---|---|---|---|
| Advantage: | Easy To Move | Hydraulic Jack: | Both Side Is 10T |
| Load: | 5Ton | Usage: | Lifting Cable Reel |
| High Light: | 10T Hydraulic Cable Drum Roller Stand,ISO Wheels Cable Drum Roller Stand |
||
Hydraulic Cable Drum Reel Stand / Elevator Cable Jack Stand
| Item number | Model |
KN) Rated Load |
(MM) Applicable Cable Reel |
(KG) Weight |
||
| Diameter | Width | Hole Diameter | ||||
| 21346 | SI-5 | 50 | ≤ Φ2400 | ≤1600 | Φ76-103 | 172 |
| 21347 | SI-10 | 100 | ≤ Φ2700 | ≤1700 | Φ120-135 | 230 |
| 21348 | SI-10A | 100 | ≤ Φ3400 | ≤1900 | Φ120-135 | 230 |
| 21343 | SI-20 | 200 | ≤ Φ4000 | ≤2500 | Φ135-160 | 450 |

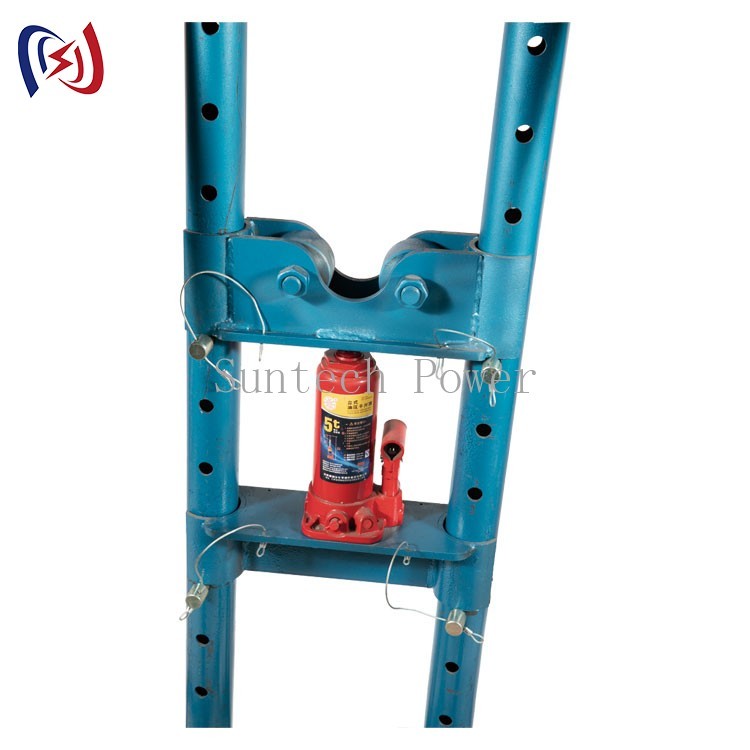

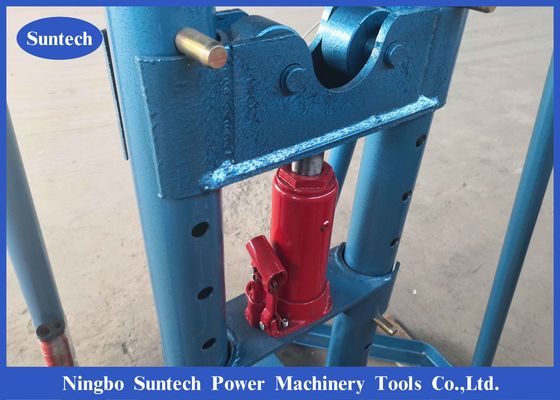

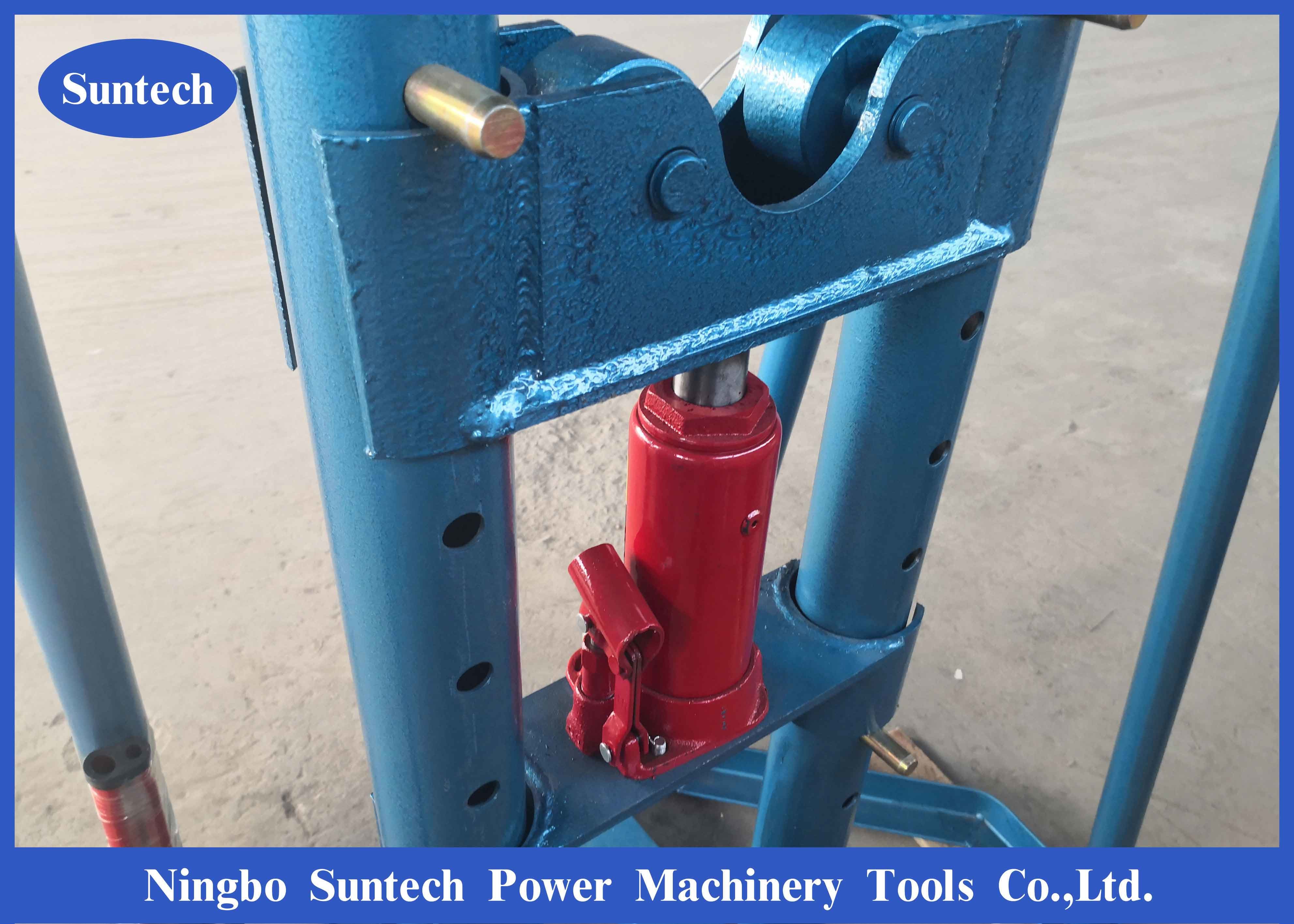

Hydraulic lifting jack stand, drum stands for cable drum lifting.
1. According to the lifting form, it can be divided into hydraulic cable release frame and mechanical cable release support.
2. According to its usage and structure, it can be divided into adjustable hydraulic release frame, column release frame, top rod cable release frame, horizontal cable disc frame, foot brake cable release frame, disassembly cable release frame and tension release frame.
3. According to the load capacity, it can be divided into: 3T cable release frame, 5T cable release frame, 10T cable release frame, 15T cable disk support, 20T cable disk support and larger tonnage cable disk release support.

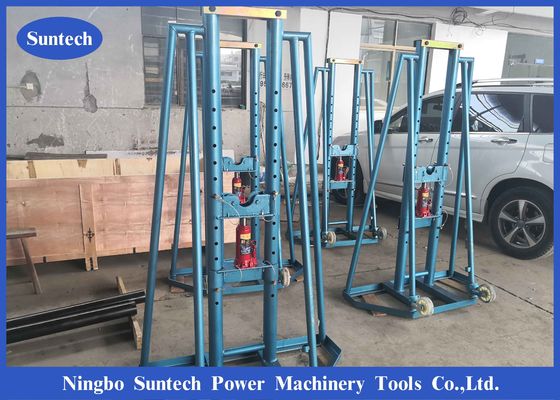

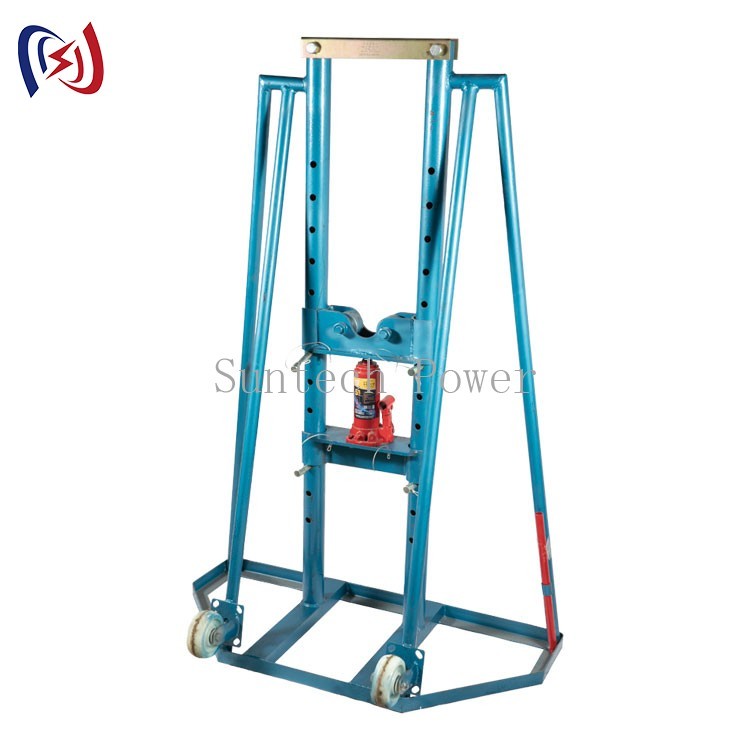

This electrical cable stand, cable drum stands is applied for carrying cable reel in the line constructions, it has the hydraulic lifter,and shaft. bottom has the samll wheels for the easy moving in site
