Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner

Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner

  • Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner
  • Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner
Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner
Product Details:
Place of Origin: Zhejiang,China
Brand Name: Suntech
Certification: ISO9001
Model Number: DW2240A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Exported Pallets and Cartons
Delivery Time: In Stock
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/month
Contact Now
Detailed Product Description
Application: Releasing Wire Name: Hydraulic Cable Reel Stand
Usage: Carrying Cable Reel Material: Steel
Load: 5Ton Warranty: One Year
High Light:

Electrical Carrying Hydraulic Cable Drum Stand

,

Cable Drum Stand For Puller Tensioner

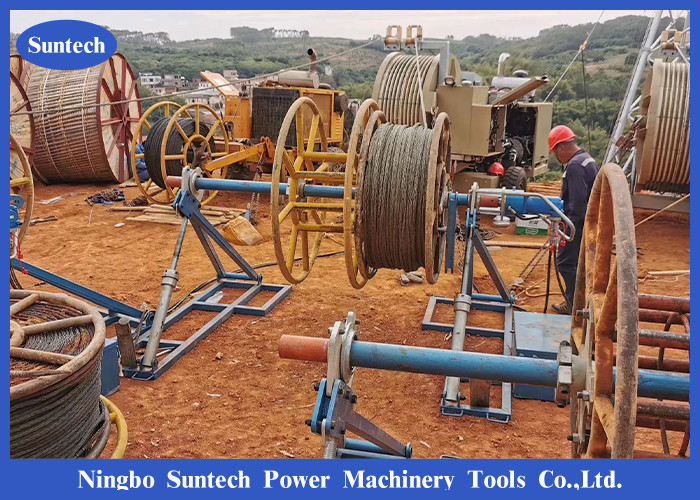

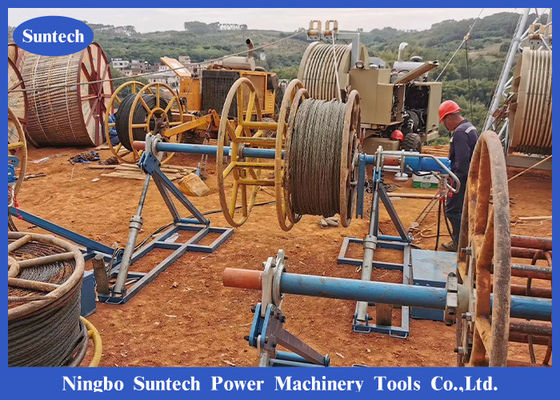

Electrical Carrying Hydraulic Jack Conductor Reel Stand For Hydraulic Puller Tensioner

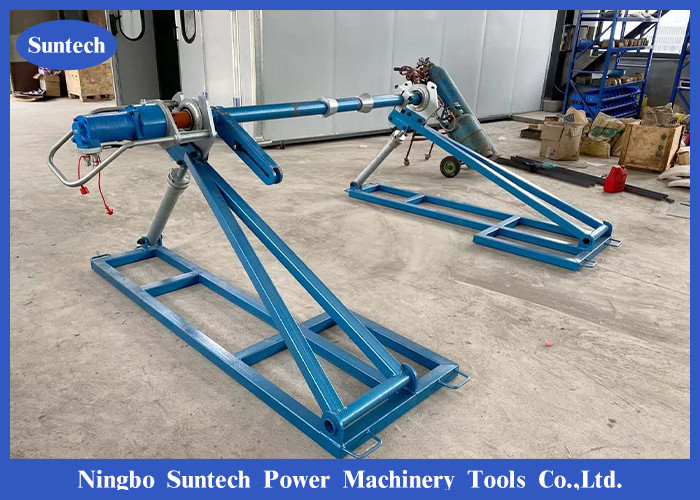

Hydraulic Cable Drum Stand with Spindle Bar Hydraulic Lifting Jack Stand

Apply to carrying cable reel. Feature:Hydraulic lifter with small wheels in the bottom for easy moving.

Explain:Standard configuration,including shaft.



1. According to the lifting form, it can be divided into hydraulic cable release frame and mechanical cable release support.
2. According to its usage and structure, it can be divided into adjustable hydraulic release frame, column release frame, top rod cable release frame, horizontal cable disc frame, foot brake cable release frame, disassembly cable release frame and tension release frame.
3. According to the load capacity, it can be divided into: 3T cable release frame, 5T cable release frame, 10T cable release frame, 15T cable disk support, 20T cable disk support and larger tonnage cable disk release support.

Hydraulic Conductor Reel Stands

Item number151511515215153
ModelDW2240ASIPZ-7HSIPZ-7K
Applicable reelDiameter of coil (mm)Φ1250~2240Φ1250~2500Φ1800~2800
Max width of coil (mm)140014001700
Diameter of axle hole (mm)Φ80-125Φ80-125Φ80-160
Maximum weight (kg)500070008000
Max working torque (N.m)120020002500
Max Speed (rpm)454545
Axle diameterΦ76Φ76Φ69
Weight (kg)270350350
Length of hydraulic tube131313

Notes: Connect with hydraulic tensioner or hydraulic puller tensioner throught quick coupling
 Other Hydraulic Cable Reel Stand 5Ton Below For Your Reference.
Electrical Carrying Hydraulic Cable Drum Stand For Puller Tensioner 0
