Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Cable Roller Sheaves |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Wooden Boxes |
Delivery Time: | 10-15days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20000pcs per month |
Material: | Nylon | Brand: | Suntech |
---|---|---|---|
Performance: | Wear Reisistance, Durable, Corrosion Resistant,self -lubricating | Package: | Carton Box Or As Client's Requirement |
High Light: | self lubricating conductor stringing blocks,plastic conductor stringing blocks,corrosion resistant conductor stringing blocks |

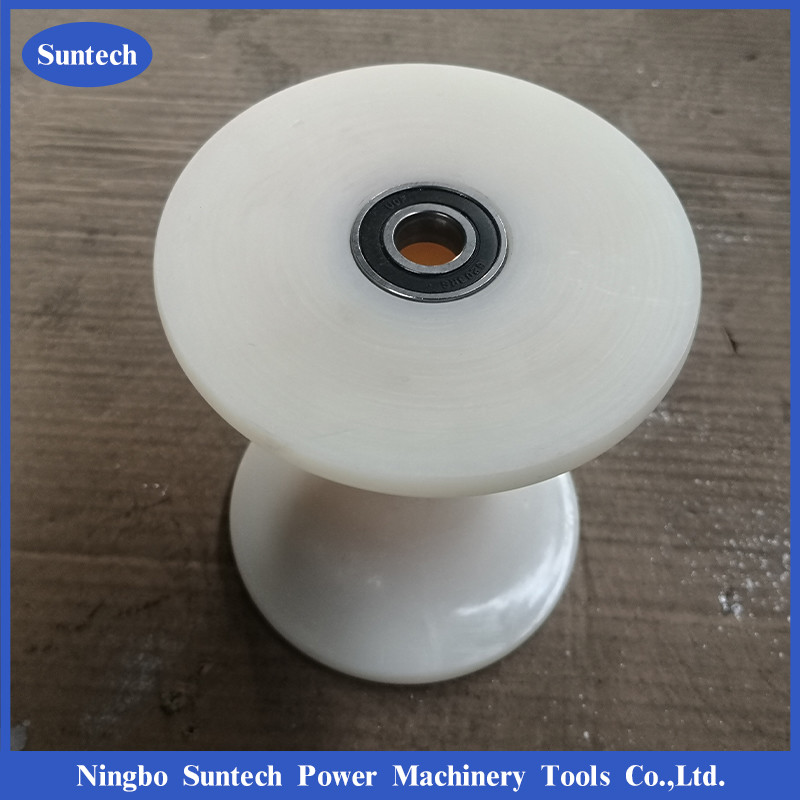

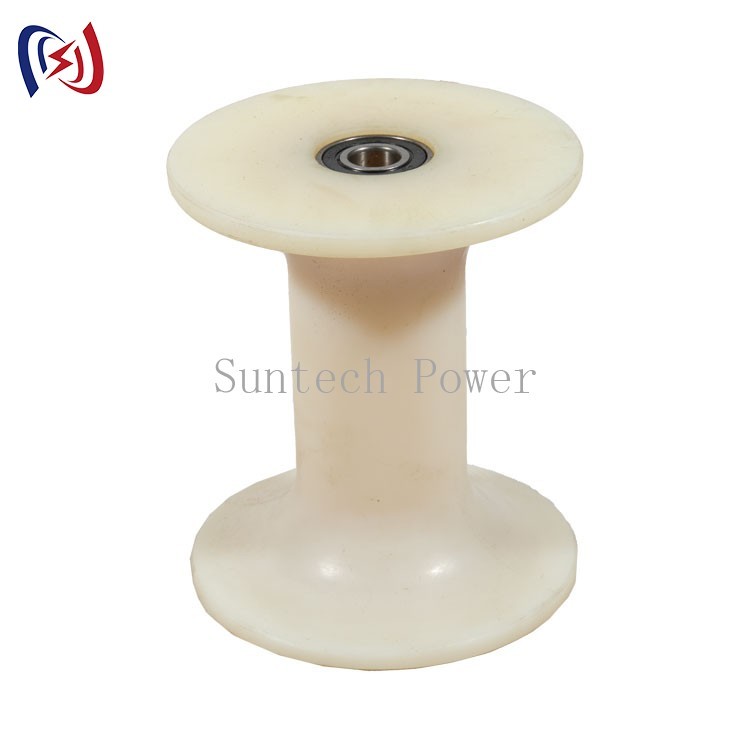

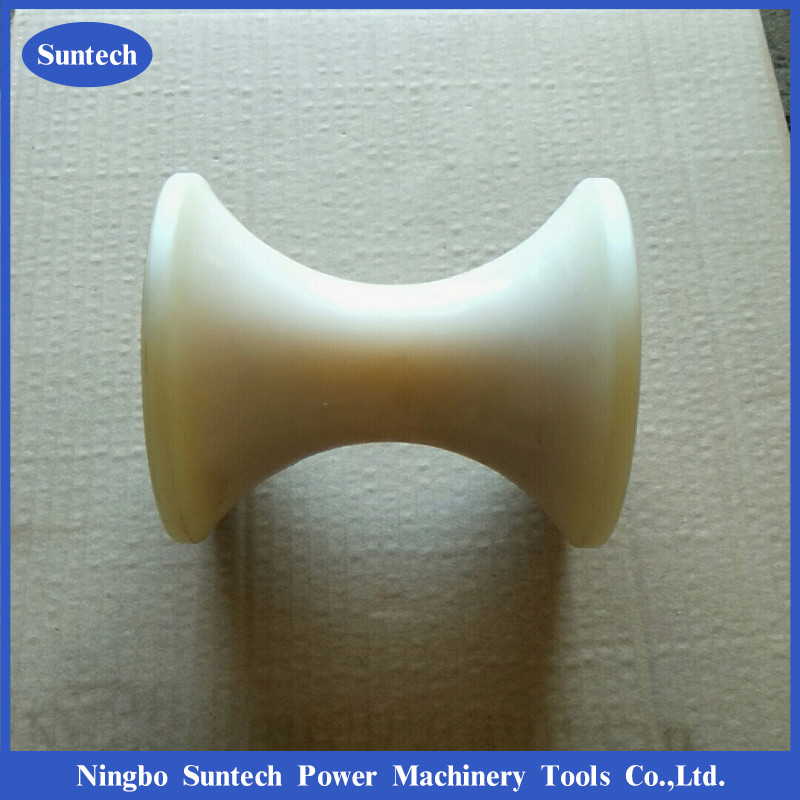

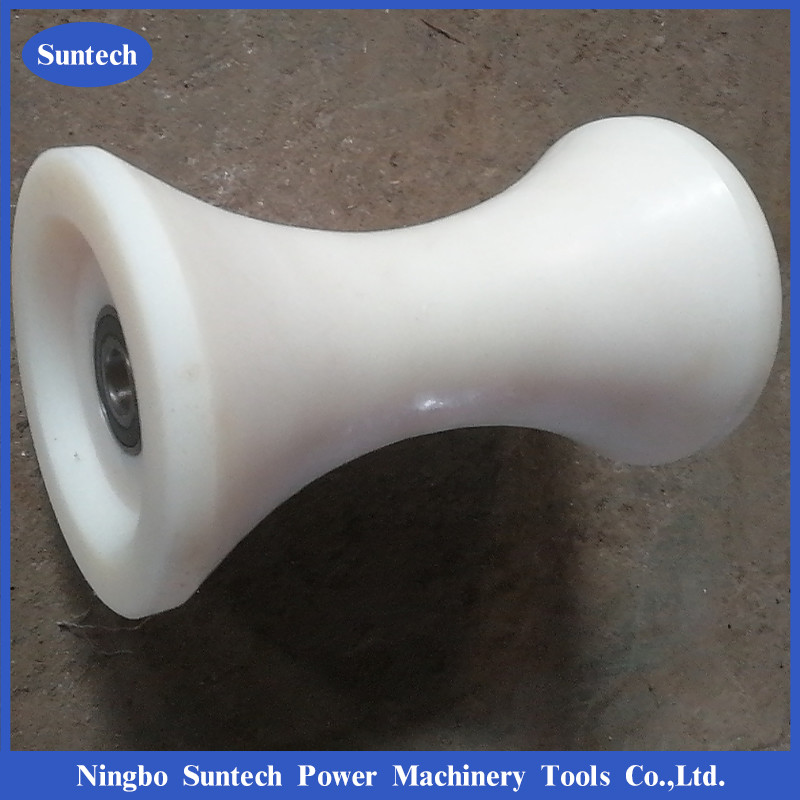

Construction Works Nylon Sheave Rollers For Undergrounding Cable Roller
Plastic Nylon Pulleys & Sheaves is the latest products developed by Suntech Power.
They are used for stringing blocks,cable rollers in transmission line,underground cable pulling,etc.
In order to rprotect conductors and cables and be prolong the longevity of them.
Features:
(1) Light weight: reducing dead weight at the end of a boom, which provides more greater stability and lifting capability.
(2) Improved wire rope life: self-lubricating, hardness lower than steel rope.
(3) Wear resistance: 8.8 times of steel, 8.3 times of copper.
(4) Improved the property of crane ,cable , little or non maintenance.
(5) Corrosive resistance
Item number | Model |
Diameter(mm) |
Width(mm) |
Blank weigh(kg) |
10010 | 80*50 | 80 | 50 | 0.2 |
10011 | 120*35 | 120 | 35 | 0.3 |
10012 | 120*60 | 120 | 60 | 0.5 |
10013 | 120*80 | 120 | 80 | 0.6 |
10014 | 120*130 | 120 | 130 | 0.7 |
10015 | 120*200 | 120 | 200 | 1.2 |
10016 | 140*160 | 140 | 160 | 0.9 |
10017 | 140*210 | 140 | 210 | 1.1 |
10018 | 160*40 | 160 | 40 | 0.5 |
10019 | 160*85 | 160 | 85 | 1.1 |
10020 | 160*230 | 160 | 230 | 1.7 |
10021 | 200*40 | 200 | 40 | 0.6 |
10022 | 200*60 | 200 | 60 | 0.8 |
10023 | 200*80 | 200 | 80 | 1.0 |
10024 | 250*60 | 250 | 60 | 1.2 |
10025 | 250*80 | 250 | 80 | 1.5 |
10026 | 270*60 | 270 | 60 | 1.6 |
10027 | 320*60 | 320 | 60 | 1.9 |
10028 | 320*80 | 320 | 80 | 2.2 |
10029 | 408*80 | 408 | 80 | 4.1 |
10030 | 408*100 | 408 | 100 | 4.8 |
10031 | 408*120 | 408 | 120 | 5.8 |
10050 | 508*75 | 508 | 75 | 6.0 |
10051 | 508*100 | 508 | 100 | 7.0 |
10052 | 660*100 | 660 | 100 | 10.0 |
10053 | 660*110 | 660 | 110 | 12.5 |
10054 | 750*110 | 750 | 110 | 15.0 |
10055 | 822*110 | 822 | 110 | 18.0 |
10056 | 916*110 | 916 | 110 | 22.0 |
10057 | 916*125 | 916 | 125 | 25.0 |
10058 | 1040*125 | 1040 | 125 | 32.0 |
10059 | 1160*150 | 1160 | 150 | 41.0 |
10060 | 1160*130 | 1160 | 130 | 39.0 |
FAQ:
1. Can we ask for free samples?
Yes,we can send one small sample in nature color to confirm the material and texture,but freight collect.
2. What's your MOQ,can you accept small order?
Yes,we can accept trial orders.Generally the MOQ of nature color(white)fuction of cutting board,plastic cutting board, flexible cutting board is 1 piece.But coloredfuction of cutting board,plastic cutting board, flexible cutting board has a MOQ of at least 200 pcs.
3.Do you inspect the product? How?
Yes,each step of production and finished products will be carried out inspection by QC before shipping.100% qualified products handing to you.
4.What's your payment term?
We aceept T/T,Western Union,MoneyGram,etc.
5.Can you accept customized color?
Yes,the style,size,texture,and color,all can be customized as your require.
