Cable Protection Bend Plate, Curved Cable Entrance Protective Sleeve

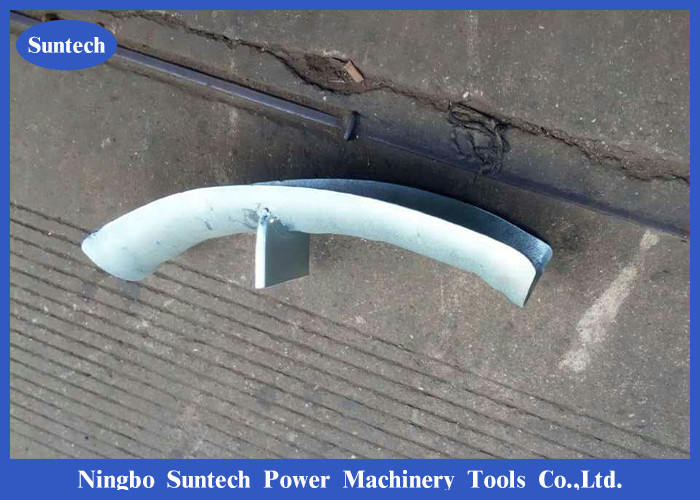

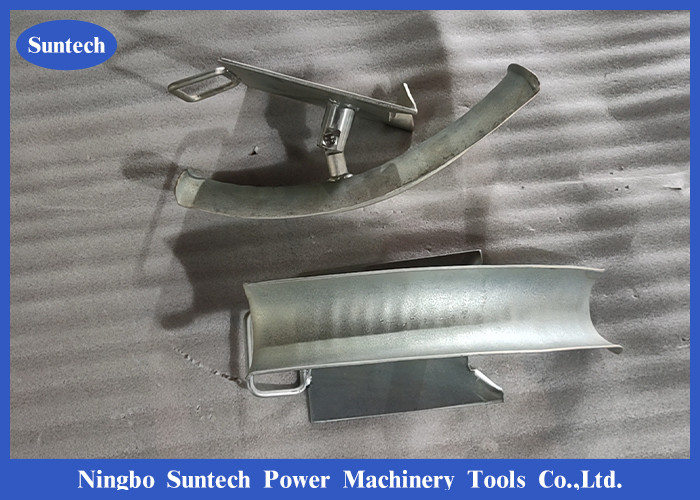

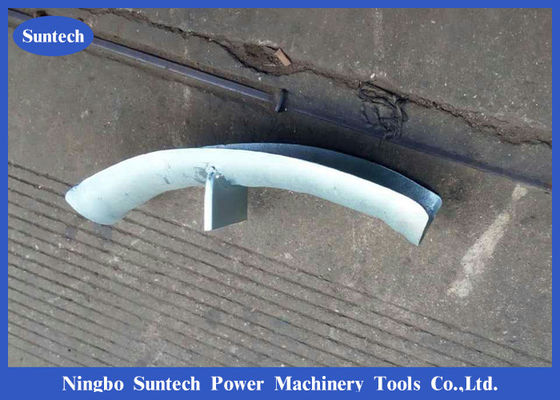

This cable protection bend plate plays a vital role in safeguarding the cable and pulling rope at the cable pithead. It is constructed from galvanized steel.
Item Number | 21305 | 21307 | 21306 | 21308 |
Model | JKD80 | JKD100 | JKD130 | JKD150 |
Curvature Radius (mm) | R400 | R400 | R500 | R500 |
Maximum Through Diameter (mm) | Φ80 | Φ100 | Φ130 | Φ150 |
Weight (kg) | 5 | 5.2 | 6.0 | 6.5 |
Curved Cable Entrance Protective Sleeve
This curved cable entrance protective sleeve can effectively avoid the damage to cable when entering the tube. The flare tube end comes with a turning angle of 30°.
Item Number | Specification | Diameter of Applicable Tube End (mm) | Weight (kg) |
21316 | DKT90W | Φ90 | 1.35 |
21317 | DKT100W | Φ100 | 1.75 |
21318 | DKT130W | Φ130 | 3 |
21319 | DKT150W | Φ150 | 3.8 |

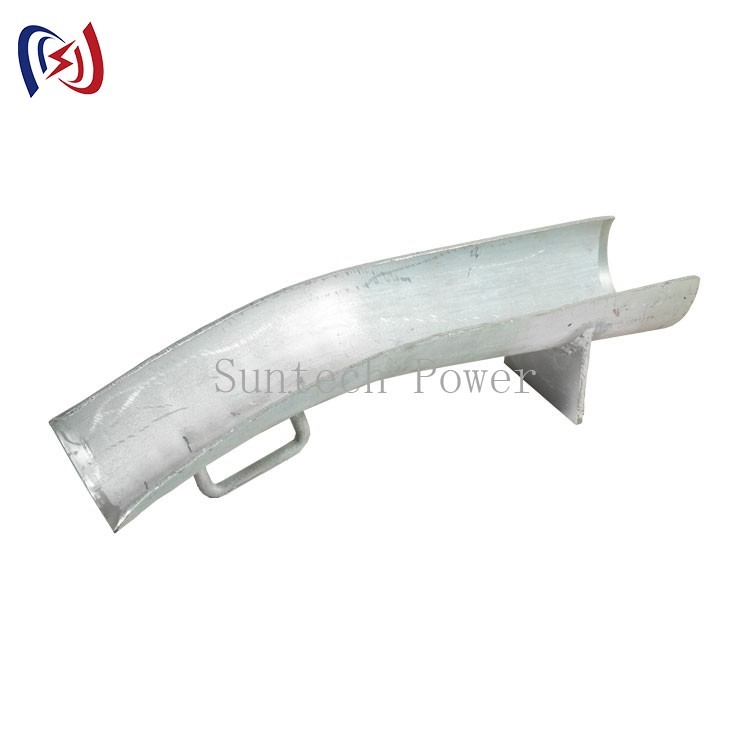

Our cable protective bend is made of galvanized steel material. It is extensively applicable to the protection of cable and pulling rope at the cable hole.

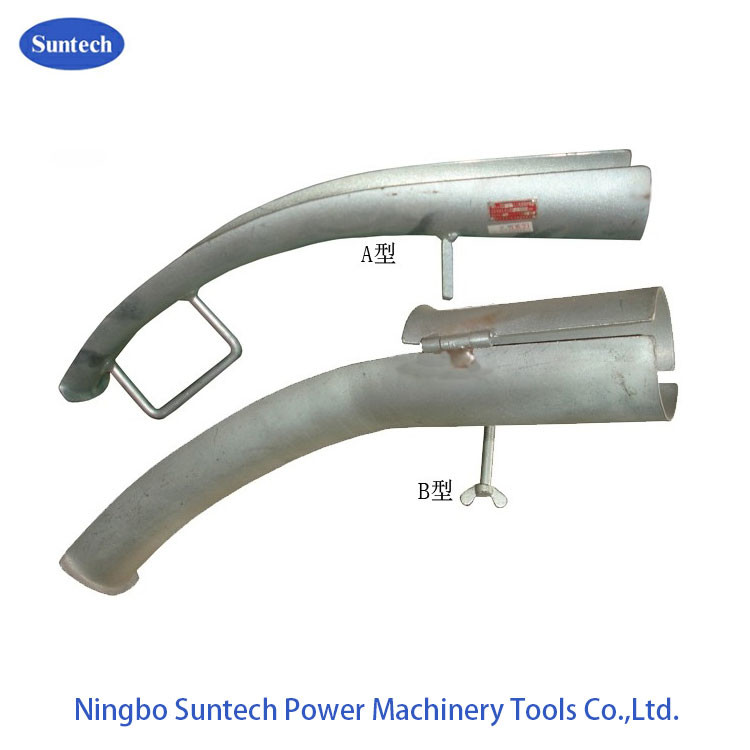

Item Number | 21321 | 21322 | 21322A | 21325 | 21326 |
Structural Style | A | A | A | B | B |
Diameter of Tube (mm) | Φ100 | Φ130 | Φ150 | Φ100 | Φ130 |
Curvature Radius (mm) | R400 | R450 | R450 | R400 | R450 |
Weight (kg) | 3.2 | 5.2 | 5.9 | 3.4 | 6 |
