Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO CE |
Model Number: | SHY |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Exported cartons or cases |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, D/A, Western Union,, MoneyGram |
Supply Ability: | 300pcs per month |
Length: | 530mm | Height: | 260mm |
---|---|---|---|
Width: | 230mm | Material: | Aluminum Or Nylon |
Load: | 10kn | Warranty: | 1 Year |
High Light: | triple wheels cable pulling pulley,nylon guiding wheels cable pulling pulley,underground cable pulling pulley |

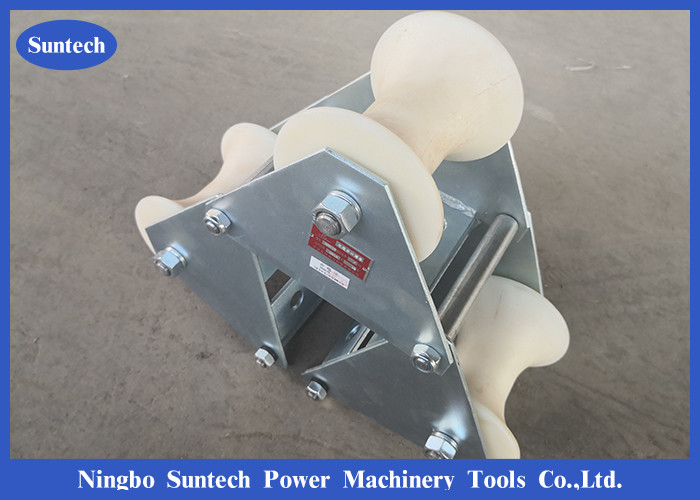

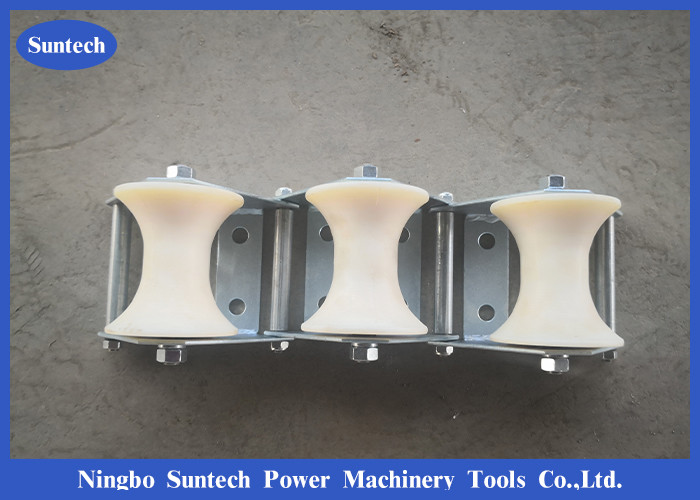

10KN Triple Underground Cable Nylon Rollers,Three Wheel Cable Pulling Pulley
Features:10KN Triple Nylon Cable Pulling Rollers/Three Wheels Cable Pulling Pulley
Triple Underground Cable Nylon Rollers,Three Wheel Cable Pulling Pulley, is used to lay the cable on the ground or cable brigde. it can be the aluminum roller, or nylon rollers, applied in the striaght line or corner. More, it can be disassembled as three rollers.
Data Sheet
10KN Triple Underground Cable Nylon Rollers,Three Wheel Cable Pulling Pulley
Product No. | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | Payload Max |
YT1111 | 530 | 230 | 260 | 8 | 10KN |
Cable Pulley Introduction
A cable pulley is a type of guiding wheel around which a woven cable, usually made of steel, can be wound.The pulley wheel will feature an axle to allow the wheel to spin, and the axle will usually be mounted to a frame that can be affixed to a solid object for stability and strength. The pulley wheel itself is usually made of a tough metal such as steel to prevent premature wear or other damage. The cable pulley wheel is usually grooved or scooped around its perimeter to provide a better guiding track for the cable.
