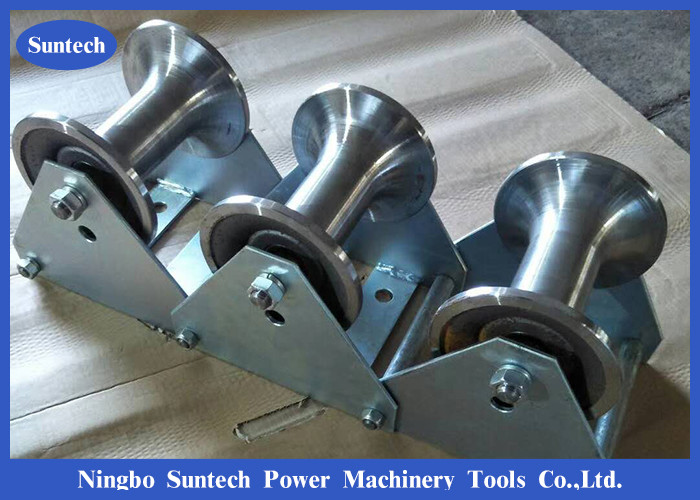

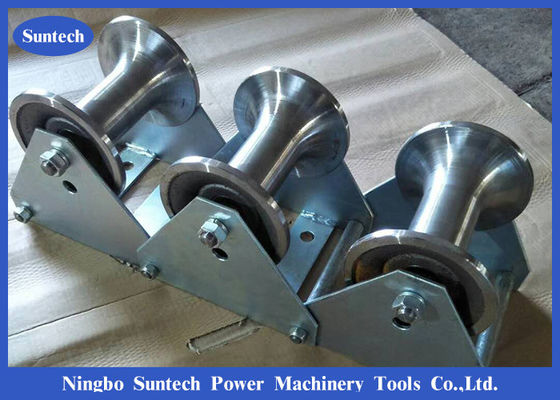

Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel

Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel

Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel
Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel
Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001-2008
Model Number: YT1111
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: Negotiation
Packaging Details: Pallets and Cartons
Delivery Time: 7-9 workdays after payment
Payment Terms: L/C, T/T, D/A, Western Union,
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Name: Three Cable Roller Apply: Underground Cable Pulling
Load: 2T Roller Material: Nylon Or Aluminum
Surface: Galvanized Or Painting Usage: Cable Extension
High Light:

galvanized frame cable pulling roller

,

three aluminum wheels cable pulling roller

,

2T cable pulling roller

Galvanized Frame Three Aluminum Wheel Cable Pulling Roller



Application:

Cable rollers can be divided into ground cable pulleys, power cable pulleys, overhead string pulleys, nylon pulleys, cable wire guide pulleys, large-diameter pulleys, dual-use cable tackles, and lifting pulleys. It is mainly used for protection when laying cable conductors. It saves time and effort. The purpose of the ground cable pulley is to change the direction of cable extension and to protect the cable from friction.



Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel 0



Three Wheel Cable Roller Data Sheet

Product No. Length(mm) Width(mm) Height(mm) Weight(kg) Payload Max
YT1111 530 230 260 8 10KN



What is Cable Roller?

Cable rollers also called cable pulley, it is widely used in the field of construction during the cable-laying. It is one of the cable pulling equipment which can be match use for cable laying contractor, and electricity supply industry, Ideal for guiding and protecting cables.



Hot sale mainly includes straight cable rollers, corner cable rollers, triple cable rollers, and some other rope cable roller and specialist cable rollers for pulling underground cables into trenches and ducts .

Cable roller prices are based on your customized quantity and specifications.



Galvanized Frame Cable Pulling Roller With Three Aluminum Wheel 1
