Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller

Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller

  • Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller
  • Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller
  • Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller
Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: SHC
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: Negotiated
Packaging Details: Exported Wooden Boxes
Delivery Time: In Stock
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300pcs in Month
Contact Now
Detailed Product Description
Model: SHC100C Tube Dia: 100mm
Using: Protecting Cable Apply: Underground Site
Weight: 20KG Wheel Material: Nylon
High Light:

100mm Trench Roller

,

100mm Cable Guide Roller

,

20KG Cable Guide Roller

B Series Cable And Rope Entrance Protection Trench Roller Cable Guide Roller



Application Cable And Rope Entrance Protection Trench Roller Cable Guide Roller

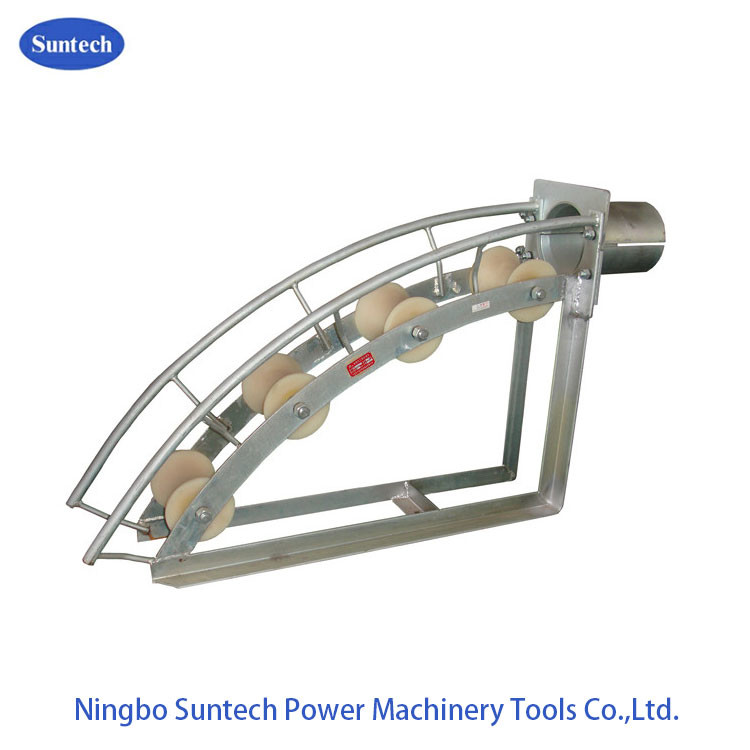

B Series lead in cable entrance protection roller with three nylon wheels is used for pulling underground cables.It has three rollers which are made of nylon.The curvature radius is 450mm.The roller can be placed in the tube orifice at arbitrary angle,lockable.



Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller 0

Technical Data

B Series SH150C Cable Pulling Pulley Block Guide Roller Nylon Wheel

Model Tube diameter(mm) Weight(kg)
SH80C 80 17
SH90C 90 18
SH100C 100 20
SH130C 130 20.5
SH150C 150 21
SH180C 180 22
SH200C 200 23

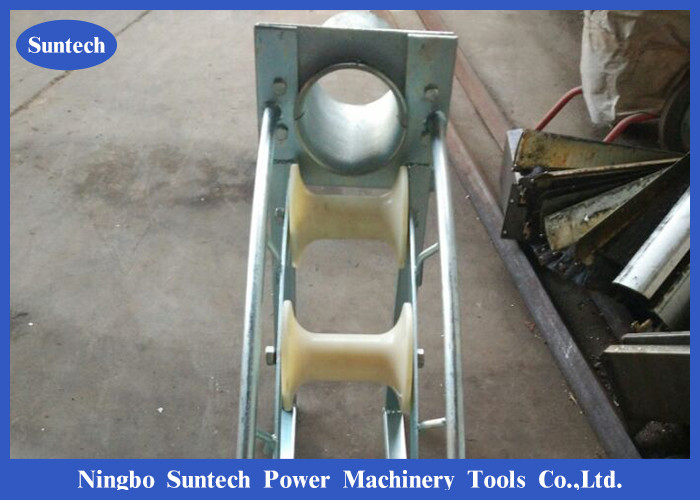

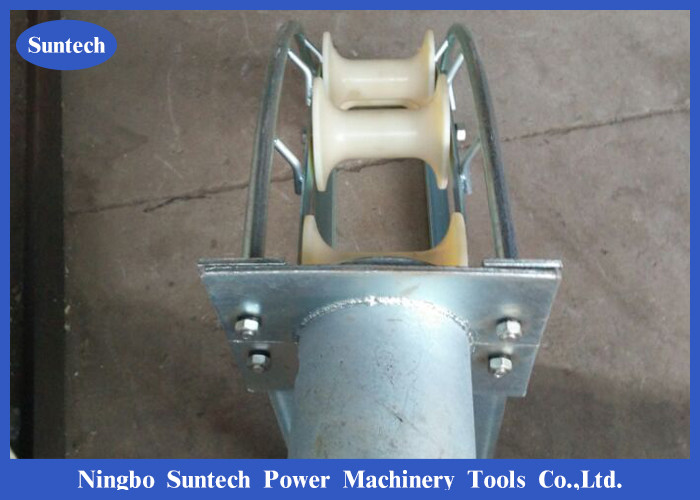

Pictured: Trench Cable Rollers

Cable rollers should always be used when pulling cables.
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud.

Cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending radius.

Ground Cable Entrance Protection 100mm Trench Roller , Cable Guide Roller 1

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
