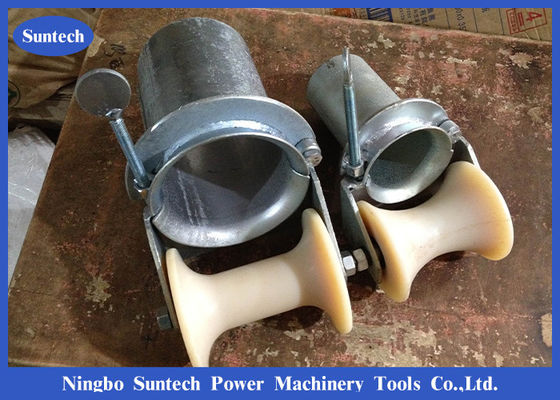

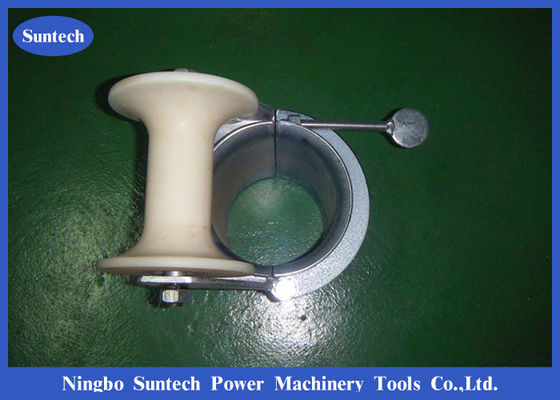

SH90B Model Lackable Cable Reel Roller Bell Mouth Type With Nylon Wheel
Technical Data of Cable reel roller bell mouth type with nylon wheel
| Model | Tube diameter(mm) | Weight(kg) |
| SH80B | 80 | 4.3 |
| SH90B | 90 | 4.9 |
| SH100B | 100 | 5.2 |
| SH130B | 130 | 6.3 |
| SH150B | 150 | 7.6 |
| SH180B | 180 | 10 |
| SH200B | 200 | 12 |
SH90B Model Lackable Cable Reel Roller Bell Mouth Type With Nylon Wheel:
This cable ground roller, has the nylon and aluminum material two kinds, and suit to different tube diameters, from 80mm to 200mm, smooth surface, and light weight, the most important feature, it is lockable, when you use it, please nicely palce in the tube entrance at arbitrary angle. To meet more customized requirements, some client will demand the highly galvanzied frame, it will be the highest level of this roller, duwe to the zinc frame, it keeps more lift time, and durable, and better than spraying paint. So you should indicate it especially.
Cable Laying Tool Protect Cable Roller
Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Electrical steel cable pulling roller, Straight line cable block be packed by carton.
