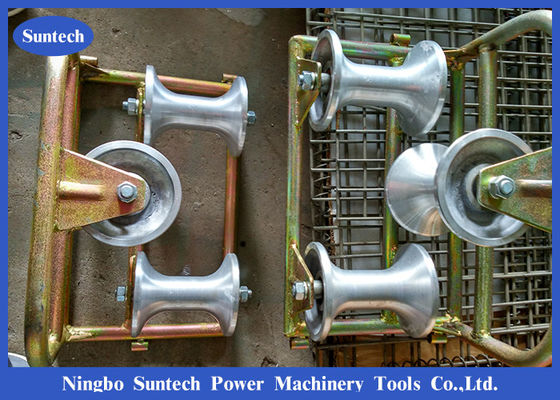

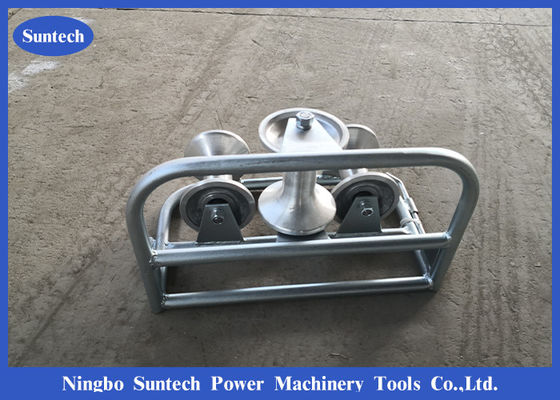

Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels

Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels

    • Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels
    • Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels
    • Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels
  • Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: Suntech
    Certification: CE,ISO
    Model Number: SHL3,SHL3N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Get the newest price
    Packaging Details: Wooden Case
    Delivery Time: 5-7days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 900pcs/month
    Contact Now
    Detailed Product Description
    Item: Cable Roller Apply: Guilde Cable Pulling
    Type: 3 Rollers Frame: Steel Tube
    Sheaves: Aluminum Warranty: 1 Year
    High Light:

    triple corner cable pulling rollers

    ,

    140mm cable pulling rollers

    ,

    cable pulling rollers 140mm

    Triple Corner Ground Cable Roller Pulling Roller with Aluminum Alloy Wheels



    1.The Cable Rollers that are available from LS are specifically designed for either Trench or Duct applications.

    Trench rollers are lightweight, for narrower applications, designed to lay on the ground and protect the cable from the surface..

    2.Duct rollers are designed to be placed at the entrance to a duct so the cable is protected from the rim and corner, to ease the cable in and avoid damage.Depending on your application you may want to consider multiple Cable Rollers.

    3.To discuss your application needs with an expert or for the best available prices, feel free to call our team or get in touch via our Contact Form. We are always more than happy to help.

    Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels 0

    Triple Corner Ground Cable Roller Pulling Roller with Aluminum Alloy Wheels Feature:

    • Heavy duty corner roller from tubular sections
    • 3off 140mm Diameter Large Waisted Aluminm Rollers
    • Sealed roller bearing fitted
    • Zinc Plated Finish
    • Universal link pin mount positions
    • Size 53cms Long x 30cms Wide x 30cms High
    • Weight 12 Kg

    Technical Data

    triple corner cable roller
    Model Rated Load(KN) Structure Weight(Kg)
          Aluminum roller Nylon roller
    HB-1 10 three rollers; steel tube frame 12.4 12.0

    We also have the other sizes of this type roller, it can be said customized. Pls freely ask us.

    Triple Corner Ground 140mm Cable Pulling Rollers With Aluminum Alloy Wheels 1
