Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | CR High Frame Cable Straight Roller |
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Exported Cartons |
Delivery Time: | 5-7days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 800pcs per month |
Item: | Wire Rope Straight Type Cable Roller For Underground Cable Pulling | Application: | Underground Cable Pulling |
---|---|---|---|
Usage: | Cable Pulling | Roller For: | Cable Laying Project |
Material: | Aluminium Wheel Or Nylon Sheave | Wheel: | Aluminum/nylone |
High Light: | underground cable drum roller,Nylon Sheave cable drum roller,10kn cable drum roller |

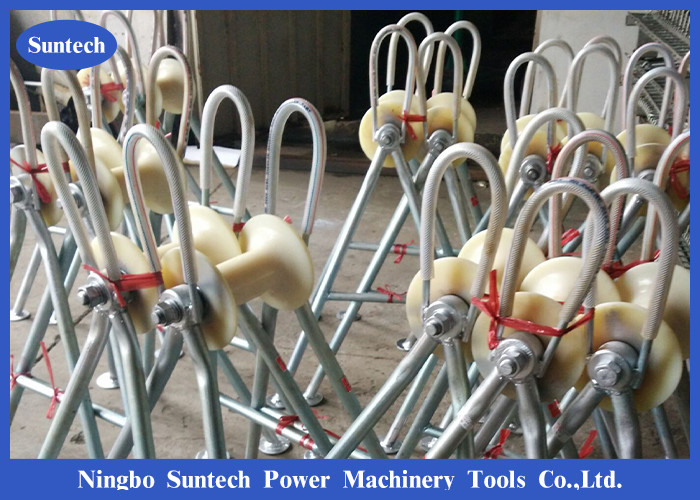

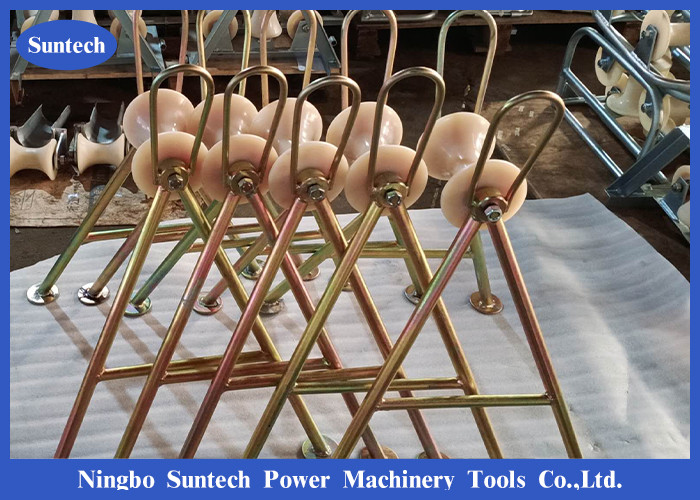

Wire Rope Straight Type Cable Roller For Underground Cable Pulling
Name:Cable Rollers, cable pulley, Cable Sheaves, Cable Drum Jacks, direct deal, corner roller
Detailed Description:Used in the cable changing the direction place protection cable not to wear.
Features:Divides into according to the material quality: Alloy wheels and MC nylon wheels
Type: Tubular and plate type
Cat. No. | Rated Load (KN) | Construction | Weight (kg) |
CR0110 | 10 | Cast aluminum frame, aluminum (nylon) roller | 5.4/3.6 |
CR0111 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.5/3.1 |
CR0112 | 10 | Steel tubing, long legs, aluminum (nylon) roller | 5.8/4.2 |
CR0113 | 10 | Steel plate base, aluminum (nylon) roller | 5.5/3.7 |
CR0114 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
CR0115 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
Corner Roller :Frames of corner rollers are linked together with stake pins to form
a suitable bend to guide cables around the corner.
Cat. No. | Rated Load (kN) | Max. Cable Dia. (mm) | Weight (kg) |
CR0116 | 10 | 150 | 11 |
CR0117 | 10 | 150 | 15 |
Manhole Rollers: Mounted on the verge of manhole to protect cables and pulling ropes.
Cat. No. | Rated Load (kN) | Weight (kg) |
CR0118 | 10 | 10.8 |
Multi-Roller :Used to protect the cable when it enter or run out of a manhole. Easy
to use. Aluminium/Nylon/Plastic cable roller cable pulley
Cat. No. | Rated Load (kN) | Weight (kg) |
CR0120 | 10 | 10.8 |
Cat. No. | Rated Load (kN) | Construction | Weight (kg) |
CRO121 | 10 |
Steel tubing frame, aluminum rollers Galvanize |
4.7/3.3 |
CR0122 | 10 | Steel tubing frame, aluminum rollers | 11 |
CRO123 | 10 |
Angle steel base, steel roller Galvanize |
22 |
CRO124 | 10 |
Steel plate base (nylon) roller Galvanize |
5 |
Multi-Roller: Used to protect the cable when it enter or run out of a manhole. Easy
to use.
Cat. No. | Rated Load (kN) | Weight (kg) |
CR0125 | 80 | 3.3 |
CR0126 | 90 | 3.5 |
CR0127 | 100 | 3.8 |
CR0128 | 130 | 6 |
CR0129 | 150 |
7.2 |
