Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJQ Belt Type |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Pallets and Cartons |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 800 sets per month |

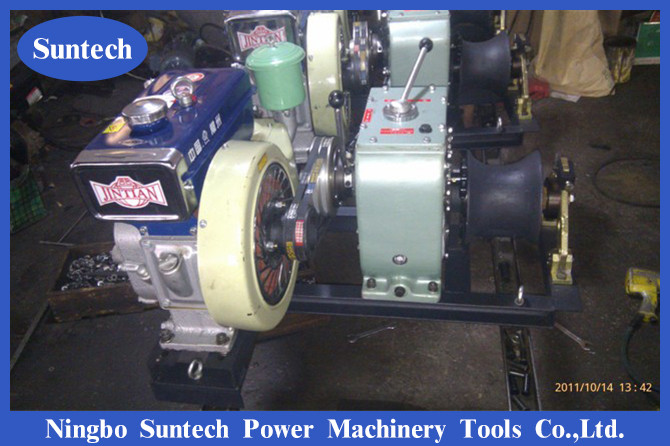

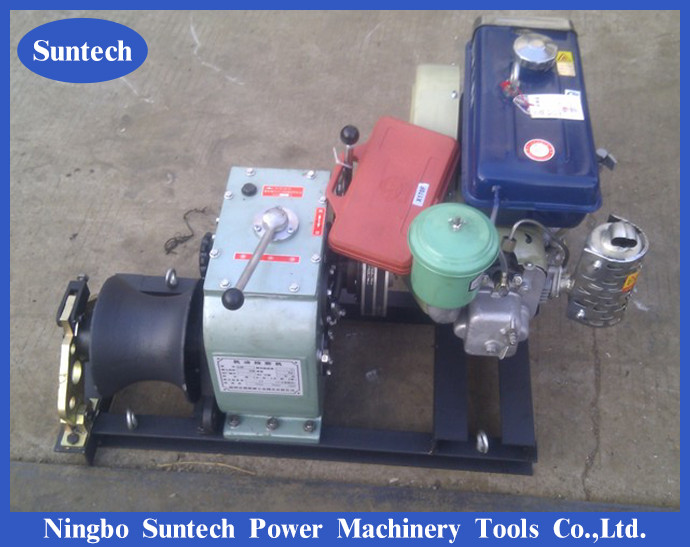

| Name: | Belt Type Cable Winch | Power: | 4.1kw |
|---|---|---|---|
| Engine: | Gas, Diesel, Electrical Motor | Approve: | ISO |
| Pulling Force: | 3,5.8 Ton | Weight: | 100kg |
| High Light: | 5T winch cable puller,30KN winch cable puller,4.1kw winch cable puller |
||
| Item number | Model |
Rotation direction |
Gear |
rotational speed () |
Traction speed (m/min) |
Tractive force (T) |
Power (KW) |
Outline size (mm) |
Weight (kg) |
| 09121 |
JJQ-3Q 6HP Gasoline engine |
corotation |
Ⅰ Slow |
9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
|
Ⅱ Fast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A |
JJC-30 170F Diesel engine |
corotation |
Ⅰ Slow |
11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
|
Ⅱ Fast |
21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B |
JJD-30 3KW Electromotor |
corotation |
Ⅰ Slow |
8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
|
Ⅱ Fast |
10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 |
JJQ-50 9HP Gasoline engine |
corotation |
Ⅰ Slow |
6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
|
Ⅱ Fast |
16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A |
JJC-50 6.6HP Diesel engine |
corotation |
Ⅰ Slow |
8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
|
Ⅱ Fast |
19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B |
JJD-50 4KW Electromotor |
corotation |
Ⅰ Slow |
5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
|
Ⅱ Fast |
14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 |
JJQ-80 13HP Gasoline engine |
corotation |
Ⅰ Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
|
Ⅱ Fast |
9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A |
JJC-80 10.5HP Diesel engine |
corotation |
Ⅰ Slow |
7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
|
Ⅱ Fast |
13 | 7.5 | 4 | ||||||
| reversal | Reverse | 6.5 | 3.7 | No liftin |
