| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SIDZ-7 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Exported Wooden Boxes |
| Delivery Time: | 5-7days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 500sets/month |
| Name: | Cable Reel Stand | Model Number: | SIZD7 |
|---|---|---|---|
| Usage: | Stringing | Item: | 15143 |
| Width: | <=1200mm | Cable Reel Diameter: | <=2500mm |
| Weight: | 450kg | ||
| High Light: | 70 KN Underground Cable Reel Stand,2500mm Cable Reel Stand,7Ton Stringing cable drum stand |
||

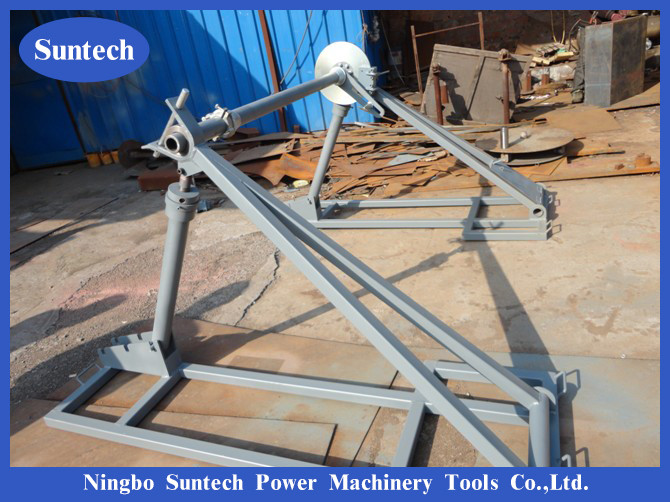

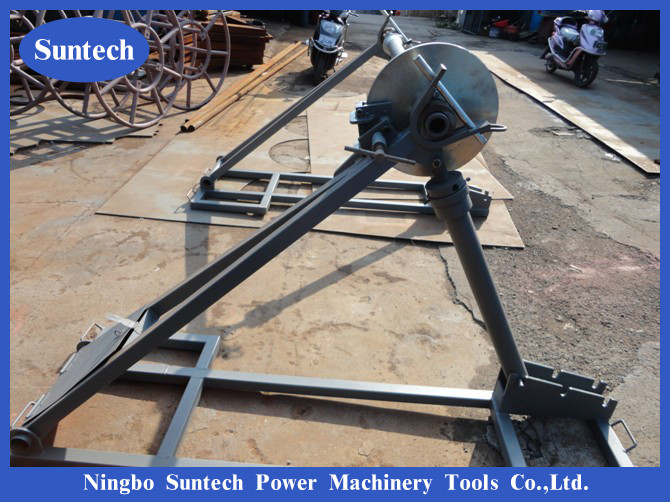

70 KN Underground Mechanical Cable Drum Lifting Jack For Stringing Construction
Detachable type cable reel stand
| Item number | Model |
(KN) Rated Load |
(MM) Applicable Cable Reel |
(KG) Weight |
||
| Diameter | Width | Hole Diameter | ||||
| 15141 | SIDZ-3 | 30 | ≤ Φ2000 | ≤1200 | Φ65-80 | 150 |
| 15142 | SIDZ-5 | 50 | ≤ Φ2400 | ≤1200 | Φ76-103 | 240 |
| 15143 | SIDZ-7 | 70 | ≤ Φ2500 | ≤1700 | Φ120 | 450 |
Mechnical Cable Drum Lifting Jack Cable Reel Stand Configuration:
During the construction of the line,the supporting cable reel is used for stringing construction.
7Ton mechanical cable jack stand
1. applicable to be as the support of large cable reel in laying cables in the city
2. easy to move with the trundles in the bottom
3. can be equipped with a braking device, using the foot brake.
7Ton cable drum stand:
To support reel in tension releasing wire or mechanically pull wire and to brake the reel
can be disassembled into 3 pieces for the convenient transportation, packinged into wooden case after the wrapping.
