Place of Origin: | Fenghua,Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | SHR-2.5,SHRN-2.5 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Wooden Boxes and pallets |
Delivery Time: | 7-10 workdays after deposit |
Payment Terms: | L/C, T/T, D/A, Western Union |
Supply Ability: | 1000pcs per month |
Material: | Nylon Or Aluminum Sheave | Application: | Stringing Conductor |
---|---|---|---|
Rated Load: | 50KN | Conductor: | LGJ240-400 |
Weight: | 8kg | Name: | Tandem Sheave Stringing Block |
High Light: | 50KN stringing blocks,Aluminum Sheave stringing blocks,2.5 Tandem conductor stringing blocks |
50KN 2.5 Tandem Aluminum Nylon Sheave Conductor Stringing Blocks

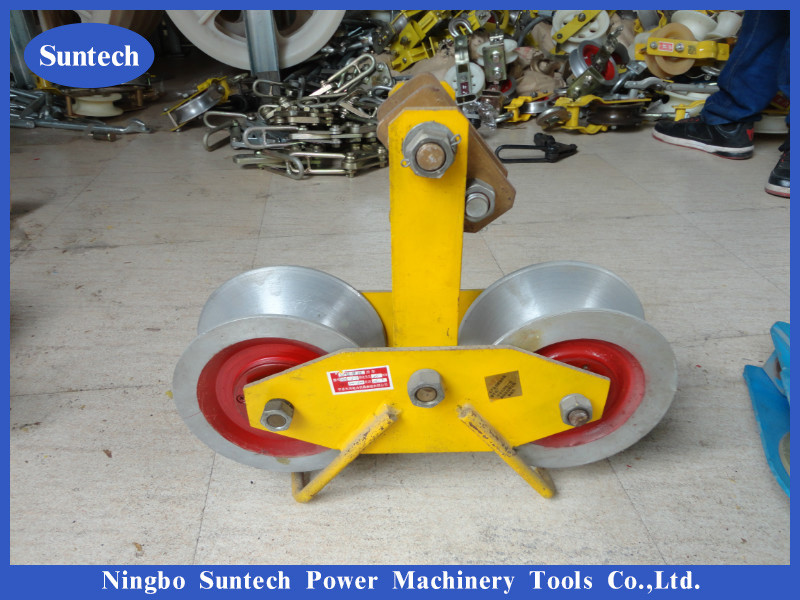

Model SHR-2.5 tandem sheave stringing blockare made of aluminium alloy / MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.
Technical Data
50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks
Rated load is 25kn,breaking force is 50kn, weight is very light and convenient to operate, besides, it has aluminum sheave and nylon sheave.
Item Number | Rated Load(KN) | Breaking Load(KN) | Weight(kg) | Remark |
10211 | 25 | 50 | 9.8 | Aluminum sheave |
10212 | 25 | 50 | 8 | Nylon sheave |
Notes: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel
Sheave Dimension φ180x79mm; Suitable Conductor:ACSR300-500mm2
Uses: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Nylon Wheel
Apply to leading and paying off large section conductor. Splicing sleeve can pass through from the groove.
Specification: 50KN SHR-2.5 Tandem Sheave Overhead Stringing Blocks With Aluminum Or Nylon Wheel

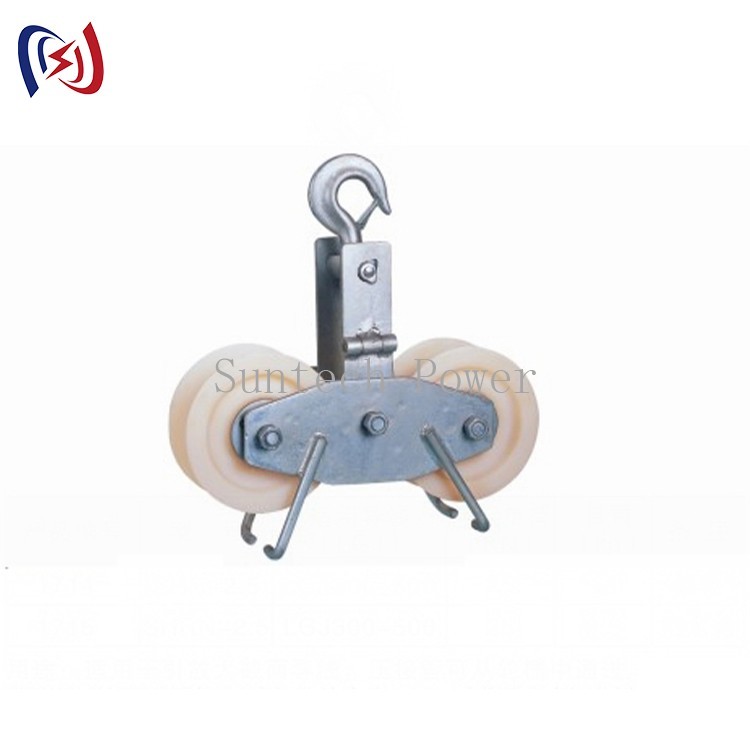

Tandem Sheave Overhead Stringing Blocks:Hanger includes hook type, plate type and ring type. This is need indicated when customer place order. Special size can be customized.
