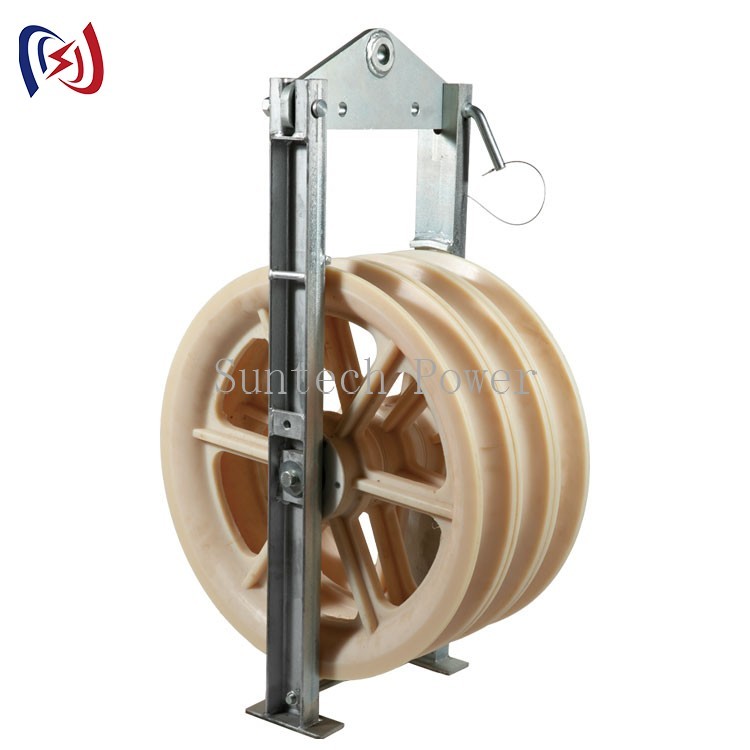

Name: 660x100mm Galvanized Steel Frame Nylon Sheaves Stringing Conductor Pulley Block
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SHDN660X100
Price: 285,715.00 USD
Availability: InStock

660x100mm Galvanized Steel Frame Nylon Sheaves Stringing Conductor Pulley Block

1 pcs

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Model: SHDN660X100

Frame: Galvanized Steel

Bundles: 2 Or 4 Lines

Application: Overhead Line Work

Warranty: One Year

Approved: ISO

Highlight:

660x100mm conductor pulley

nylon conductor pulley

galvanized steel frame conductor pulley

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO,CE

Model Number: SHDN660X100

Payment & Shipping Terms

Packaging Details: Standard export package

Delivery Time: 9-15 days after payment

Payment Terms: L/C, T/T,Western Union

Supply Ability: 1200pcs per month

Gallery

660x100mm Galvanized Steel Frame Nylon Sheaves Stringing Conductor Pulley Block

Product Description

660x100mm Galvanized Steel Frame Nylon Sheaves Stringing Conductor Pulley Block

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments,stringing blocks,cable roller,

hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor

compressors,cable pulling winch,anti twisting wire steel rope,etc.

Quick details:
1. Transmission Line Stringing Accessories
2. Two or Three Bundled Conductor Lines
3. Customizable Wheels

4. Nylon Wheels
5. Galvanized Steel Frame
6. Diameter: 660mm
7. Wheel Width: 100mm
8. With Rubber Covered or Without
9. Rated Load: 40kN

10. Conductor Size: under 500mm2

11. Lingsheng Brand

Specification:

660x100 Cream-colored Nylon Pulleys are suitable for string two or three bundled conductor lines

Performance Model	Wheel size DiameterxWidth(mm)	Conductor Size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHS-508x75	508x75	≤400	40	85.5	Middle Steel Two Nylon
SHS-660X100	660x100	≤500	20	106	Middle Steel Two Nylon
SHSN-508x75	508x75	≤400	40	60	Nylon
SHSN-660x100	660x100	≤500	40	85
SHSN-822x110	822x110	≤630	60	100
SHSN-916x110	916x110	≤800	80	140
SHSN-1040x125	1040x125	≤1000	110	210
SHSNN-255x110	255x110	≤630	50	120
SHSNN-325x150	325x150	≤1520	120	165

660x100mm Galvanized Steel Frame Nylon Sheaves Stringing Conductor Pulley Block 0
