Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | SHDN |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Pallets and Cartons |
Delivery Time: | 9-15 days after payment |
Payment Terms: | L/C, T/T,Western Union |
Supply Ability: | 1000pcs per month |
Model: | SHND 400*80 | Usage: | Bundled Conductors |
---|---|---|---|
Approved: | ISO | Application: | Conductor Stringing Tools |
Sheave Size: | Customized | Item: | Stringing Blocks |
High Light: | ISO Cable Pulling Tools,High Strength Cable Pulling Tools,400x80 Cable Pulling Tools |

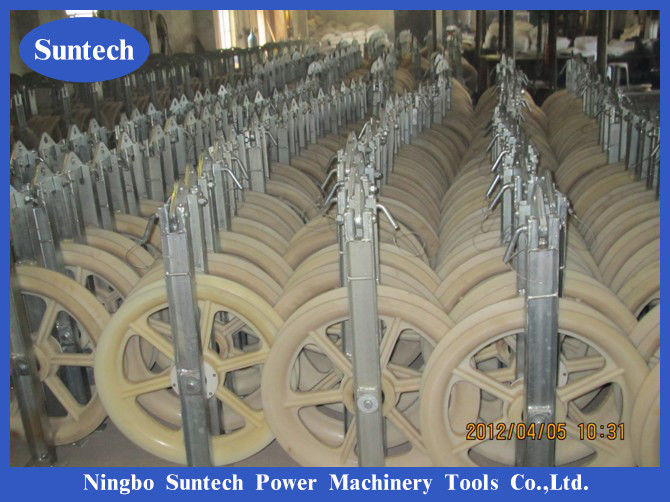

400x80mm High Strength Conductor Cable Stringing Pulley Blocks
Product: stringing pulley blocks; stringing blocks.
Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements
Cable Pulley
Stringing blocks have different diameter were used to string different conductors.
Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.
Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Our Service:
1 | Well trained sales team service for you. |
2 | Small MOQ, usually sample is available. |
3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
4 | Top quality: we have professional QC team to control the quality. |
5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
How to order?
Step 1 | Contact Us |
Show Us Item Name, Colors, Quantity and Details / Requirements | |
Step 2 | Make a Performa Invoice for you |
Step 3 | Performa Invoice Confirm and Payment |
Step 4 | Production and Shipment |
Contact Person: Peter
Tel: 86-13958364836
