822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor

822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor

  • 822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor
  • 822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor
822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor
Product Details:
Place of Origin: NINGBO
Brand Name: Suntech
Certification: ISO and CE
Model Number: SHD822 or SHDN916
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Get Latest Price
Packaging Details: Exported Box and carton
Delivery Time: 10DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000SETS Per Month
Contact Now
Detailed Product Description
Material: Aluminum Or Nylon Sheave Sheave: MC Nylon Sheave
Suitable For: ACSR 630 Name: Stringing Pulley Block
Warranty: One Year Weight: 118kg
High Light:

MC Nylon Sheave Stringing Blocks

,

ACSR 630 Stringing Blocks

,

822mm Stringing Blocks

822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor



This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width)

of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting

wire has the maximum cross section of 630 square millimeters



Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Sheave Features
10141 SHDN822 1 30 40 MC nylon sheave
10142 SHSQN822 3 60 118 Middle: cast steel sheave Conductor: MC nylon wheel
10143 SHWQN822 5 120 180
10146 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon wheel
10148 SHJ822 9 150 445



The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.



1.Maximum suitable conductor ACSR630.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3.Rubber lined MC nylon sheave for conductor can be customized.

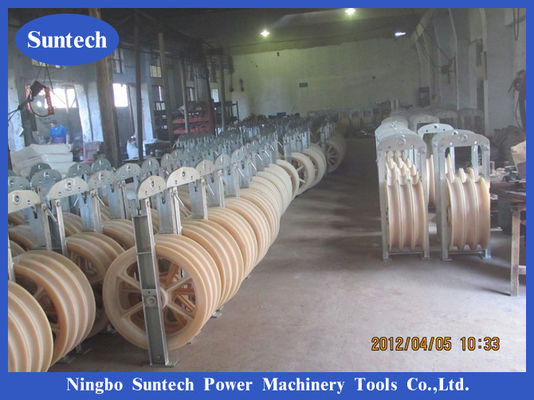

822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor 0

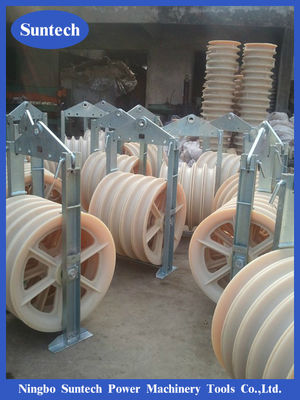

822mm ACSR 630 MC Nylon Sheave Overhead Line Stringing Blocks For Conductor 1
