CE ISO SHDN ACSR Transmission Line Stringing Pulley Conductor Stringing Blocks

1 SET
MOQ
Get Latest Price
Price
CE ISO SHDN ACSR Transmission Line Stringing Pulley Conductor Stringing Blocks
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminum Or Nylon Sheave
Type: Stringing Pulley
User: ACSR Conductor
Name: Large Diameter Stringing Blocks
Warranty: One Year
Sample: Available
Highlight:

SHDN Conductor Stringing Blocks

,

ISO Conductor Stringing Blocks

,

ACSR Conductor Stringing Blocks

Basic Infomation
Place of Origin: NINGBO
Brand Name: Suntech
Certification: ISO and CE
Model Number: SHD
Payment & Shipping Terms
Packaging Details: Exported Box and carton
Delivery Time: 7-15DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000SETS Per Month
Product Description

CE ISO SHDN ACSR Transmission Line Stringing Pulley Conductor Stringing Blocks



This 508mm Large Diameter Stringing Block comes with the maximum suitable conductor LGJ400. In other words,

our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters.

The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).



Remarks:

508MM stringing blocks are used for stringing medium size conductor (26-31 mm) in overhead transmission line construction.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted

on ball bearings. The frame of block is made of galvanized steel.



Notes:

a. It is normally used for conductor from 25-31 mm.

b. The sheave size: (outer dia. X inner dia. X width: Φ508 x Φ408 x 75 mm.

c. All kinds of pulley blocks can be manufactured according to the customers's requirements.



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

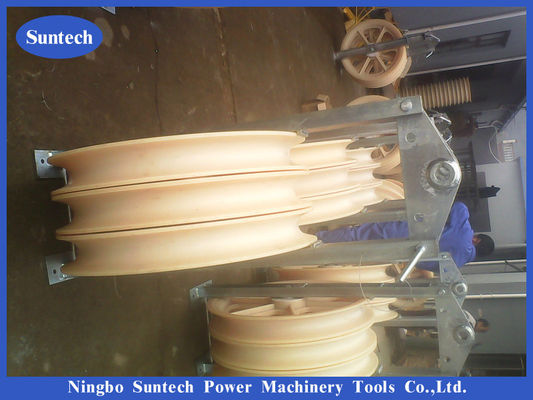

CE ISO SHDN ACSR Transmission Line Stringing Pulley Conductor Stringing Blocks 0



Technical Parameters

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features of Sheave
10101 SHD508 1 20 18 Rubber coated aluminum sheave
10102 SHS508 3 40 61 Middle: cast steel sheave Conductor: Rubber coated aluminum sheave
10103 SHW508 5 60 93
10104 SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47 Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel
10106 SHWLN508 5 60 79
10107 SHSQN508 3 40 43 MC nylon sheave
10108 SHWQN508 5 60 70



Block dimension Φ508×Φ408×100(mm) can be customized

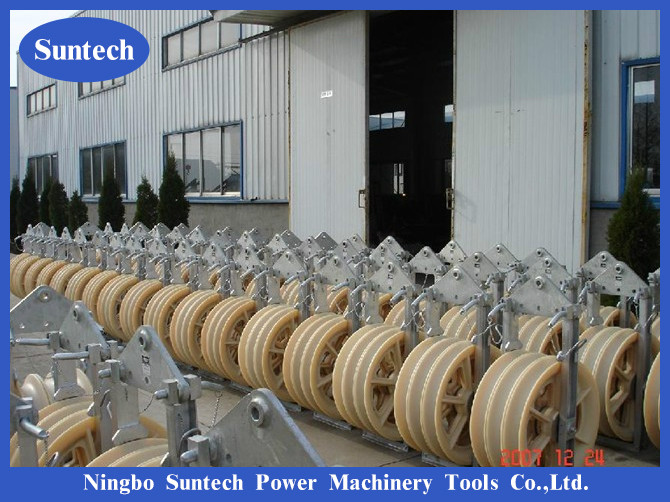

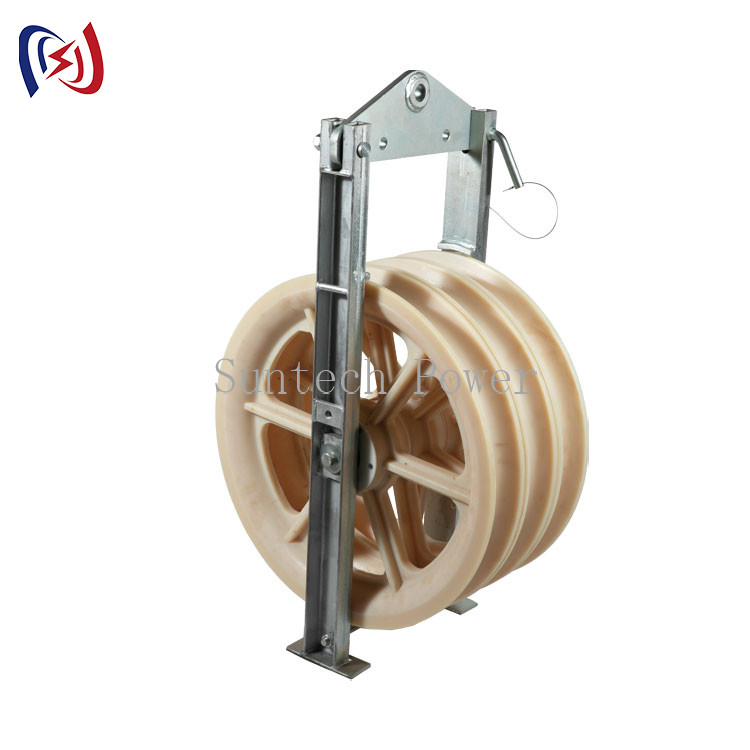

CE ISO SHDN ACSR Transmission Line Stringing Pulley Conductor Stringing Blocks 1
