Overhead Line Single Nylon Wheel Transmission Conductor Stringing Blocks

1 SET
MOQ
Get the newest price
Price
Overhead Line Single Nylon Wheel Transmission Conductor Stringing Blocks
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stringing Blocks
Material: Nylon Sheave Or Steel Sheave
Type: Single Sheave Stringing Block
Size: Customized
Highlight:

overhead line conductor stringing blocks

,

5KN Conductor Stringing Blocks

,

120×30 Conductor Stringing Blocks

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SHDN,SHD
Payment & Shipping Terms
Packaging Details: Exported Cartons
Delivery Time: 7-15DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per Month
Product Description

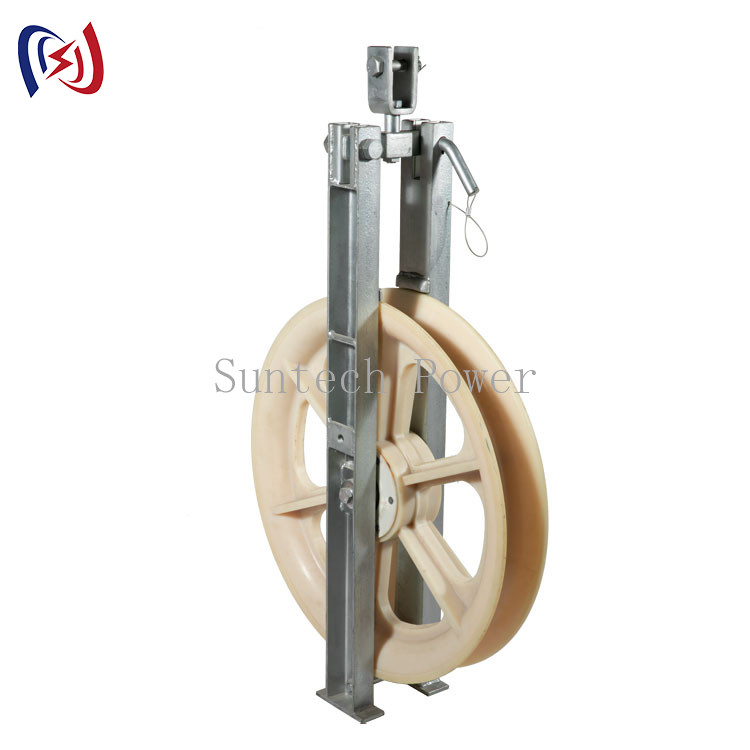

Overhead Line Single Nylon Wheel Transmission Conductor Stringing Blocks



Cable pulley block is often laid in open trenched where the road and ground conditions result in the cable route having a number of curves.

With the cable's own weight and the high tensions involved the cable cannot be fed cleanly.

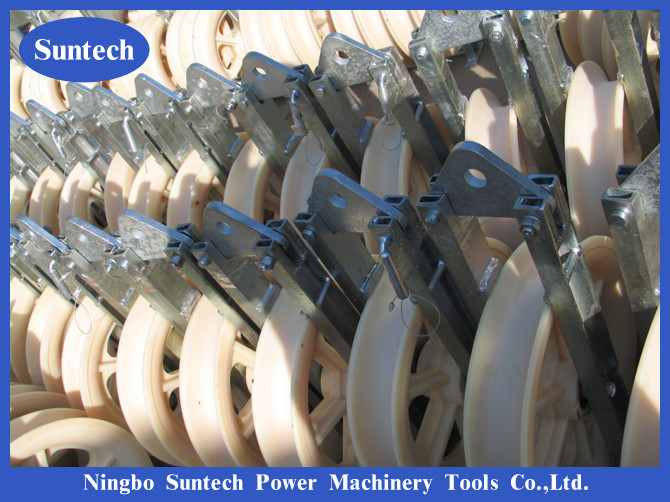

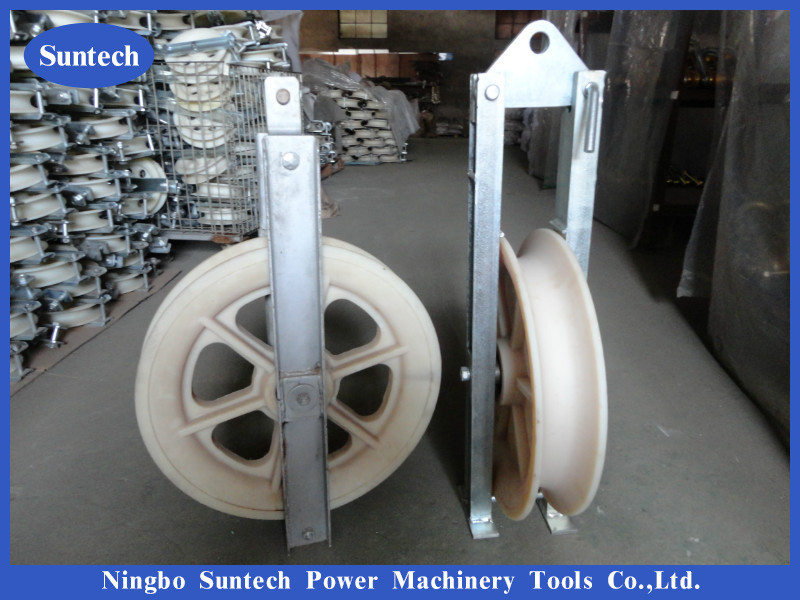

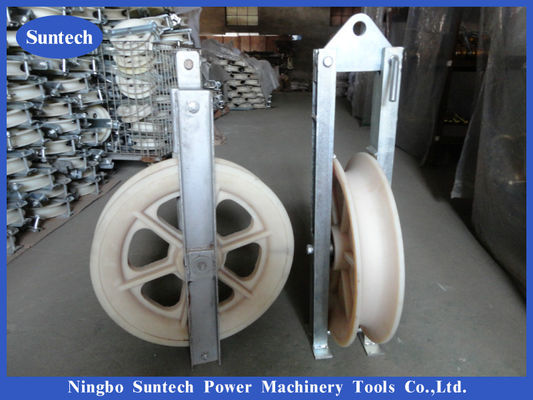

The pulley block from Suntech Power is made of aluminium or nylon, frame is high grade galvanized steel or copper. The sturdy and robust steel

frames are completely galvanized and guarantee a long working life even under extreme conditions.



Model Rated load (KN) Applicable Conductor (mm²) Weight (kg) Features
SHD120×30 5 LGJ25-70 1.8 Aluminum sheave
SHD160×40 10 LGJ95-120 3.1
SHD200×40 15 LGJ150-240 4
SHD200×60 15 LGJ150-240 4.6
SHD250×40 20 LGJ150-240 4.6
SHD250×60 20 LGJ300-400 6
SHD270×60 20 LGJ300-400 7
SHD320×60 30 LGJ300-400 9.5
SHD400×80 30 LGJ400-500 15



Stringing pulley block features

1. To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2. Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3. The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.



Remarks:

1. The product is classified as hook style, clevis, etc. it must be explained clearly in writing when ordering, exceptional specification can be customized.

2. The meading of model is outside diameter of sheave × with of sheave (mm)



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
