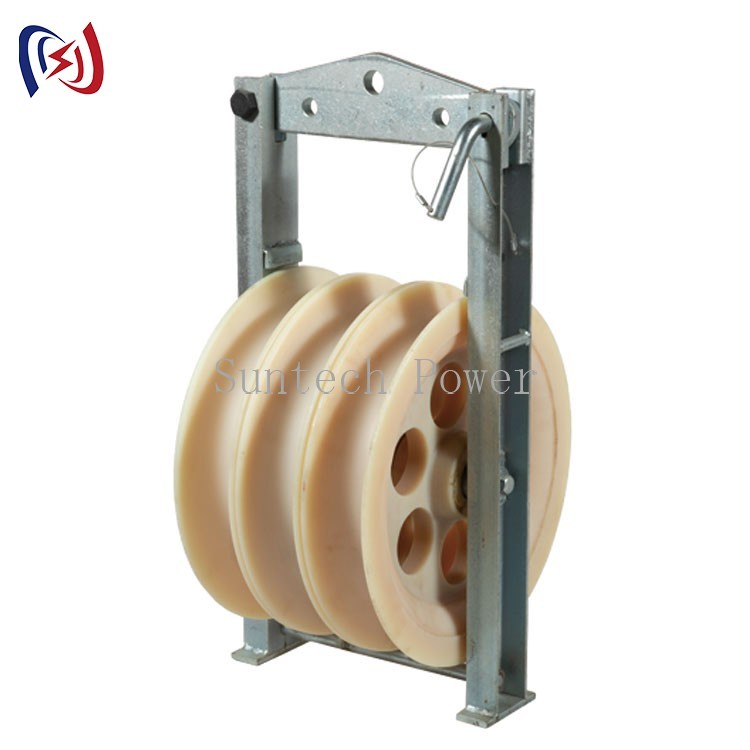

916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line

916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line

  • 916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line
  • 916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line
916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SHDN916
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Get Latest Price
Packaging Details: Exported Cases and Containers
Delivery Time: 7-15 DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per Month
Contact Now
Detailed Product Description
Number: 1,3,5 Sheaves: MC Nylon
Item: Stringing Blocks Application: Power Line
Suitable Conductor: ACSR720 Warranty: 1 Year
High Light:

Five Nylon Wheels conductor pulley

,

bundled conductor pulley

,

Diameter 916mm conductor pulley

916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line



Wheels ACSR Conductor Large Diameter Pulley Block

Stringing Block for ACSR line stringing construction has the galvanized steel frame, It could use for releasing large diameter conductors,like ACSR 350--500KV voltage line in transmission line with the very smoothly and durable Nylon wheels.



Application and Features

Five Nylon Wheels Diameter 916mm Bundled Conductor Pulley For Overhead Line

Large diameter Stringing Block And Tackle is used to release the wire in the overhead transmission line.

And it can be used for single conductor, double split wire, four split wire, six split wire and so on.



Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Feature
10151 SHDN916 1 50 51 MC nylon sheave
10152 SHSQN916 3 75 120
10153 SHWQN916 5 150 200



Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features
10165 SHDN1040 1 50 60 MC nylon sheave
10166 SHSQN1040 3 105 200 Middle: MC nylon sheave Conductor: rubber coated nylon sheave
10167 SHWQN1040 5 180 330



Item number Model Number of sheave Rated load (kN) Weight (kg) Feature
10168-1 SHDN1160 1 60 65 Middle :MC nylon sheave
10168-2 SHSQNK1160 3 120 220 Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave

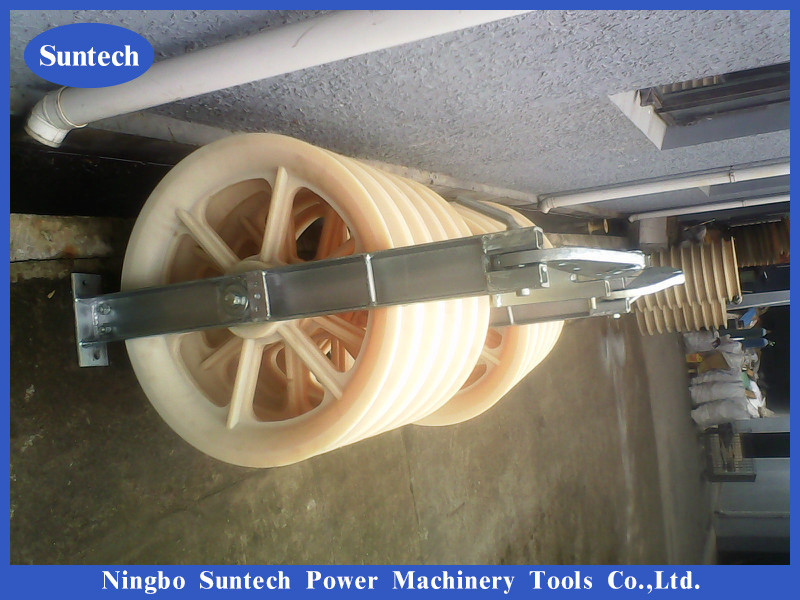

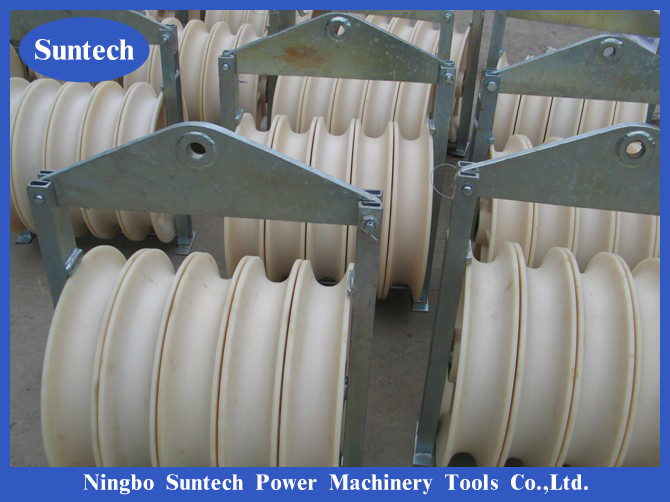

916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line 0



916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line 1
