Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | SHDN822 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Pallets and Cartons |
| Delivery Time: | 9-15DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 sets per Month |
| Name: | Large Diameter Stringing Block | Sheaves: | 1,3 Or 5 |
|---|---|---|---|
| Material: | Nylon Sheave Or Aluminum | Packing: | Exported Standard |
| Suitable Conductor: | ACSR630 | Application: | Transmission Line |
| High Light: | SHD Conductor Stringing Blocks,Three Bundled Conductor Stringing Blocks,ACSR630 Conductor Stringing Blocks |
||

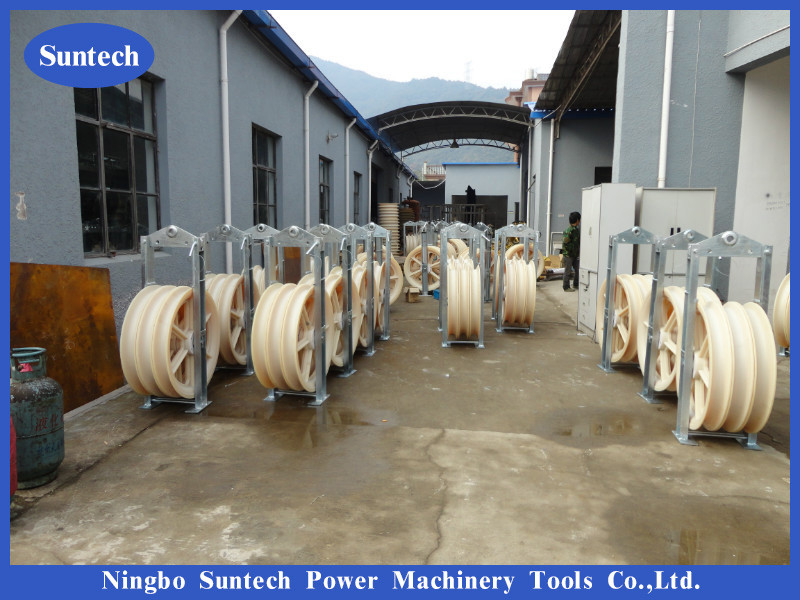

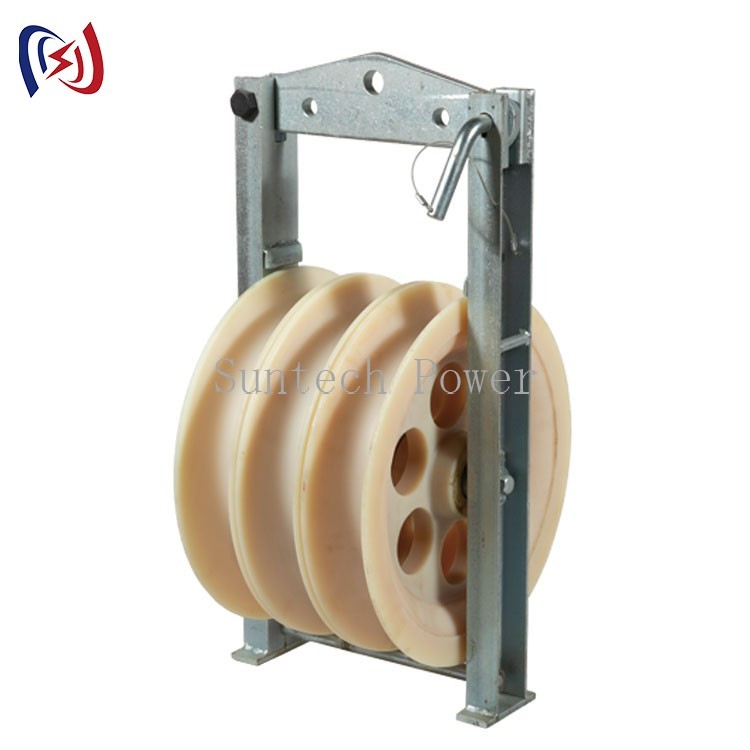

Three Bundled SHDN Transmission Conductor Stringing Blocks
This 822mm Wire Rope Pulley Block and nylon pulley block possesses the dimension (outside diameter*root diameter*sheave width)
of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has
the maximum cross section of 630 square millimeters.
The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave,
thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore,
we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced
nylon sheave coated by polyurethane.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10141 | SHDN822 | 1 | 30 | 40 | MC nylon sheave |
| 10142 | SHSQN822 | 3 | 60 | 118 | Middle: cast steel sheave Conductor: MC nylon wheel |
| 10143 | SHWQN822 | 5 | 120 | 180 | |
| 10146 | SHQ822 | 7 | 120 | 285 | Middle: cast steel sheave Conductor: MC nylon wheel |
| 10148 | SHJ822 | 9 | 150 | 445 |
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
