Ningbo Suntech Power Machinery Tools Co., Ltd.

Professional Manufacturer and Exporter of Electric Power Field

Home ProductsConductor Stringing Blocks

Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks

Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks

  • Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks
  • Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks
Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SHDN660,SHDN508
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Get Latest Price
Packaging Details: Exported Cases and Containers
Delivery Time: 7-15 DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per Month
Contact Now
Detailed Product Description
Feature: Cast Sheave Middle Model: SHDN660
Material: Nylon Sheave, Or Aluminum Sheave: 1,3,5
Size: 508*100mm,660*100mm Warranty: 1 Year
High Light:

660 diameter conductor stringing blocks

,

three sheave conductor stringing blocks

,

660*100mm conductor stringing blocks

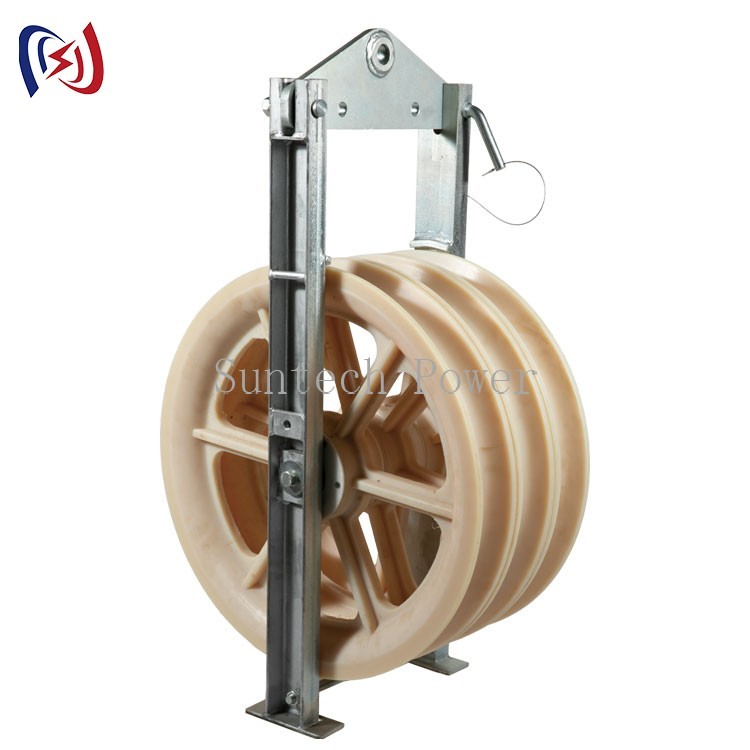

Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks



Our 660 large diameter stringing block is fitted with the maximm suitable conductor LGJ550,

This is to say the aluminum of this conducting wire possesses the cross section at most is 550 squre millimeters.

In addition, Block dimension (outside diameter *root diameter*sheave width)Φ660*Φ560*100mm.

Middle sheave of both 10122 and 10123 types has a width of 90mm, we can also supply the middle nylon sheave with the wide of 90mm for option, also the diamnsion of Φ660*Φ560*100mm can be customized.



Specifications

Triple Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block,it has one, three, five and seven sheaves.If only one sheave, it can be rubber coated aluminum sheave, and MC nylon sheave. Three, Five,Seven sheaves,has the Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave.



Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features
10121 SHD660 1 20 30 Rubber coated aluminum sheave
10122 SHS660 3 40 106 Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123 SHW660 5 60 150
10124 SHDN660 1 20 24 MC nylon sheave
10125 SHSLN660 3 40 92 Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126 SHWLN660 5 60 120
10127 SHSQN660 3 40 76 MC nylon sheave
10128 SHWQN660 5 60 110
10129 SHQZ660 7 80 268 Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130 SHQ660A 7 75 190 Middle: cast steel sheave Conductor: MC nylon sheave

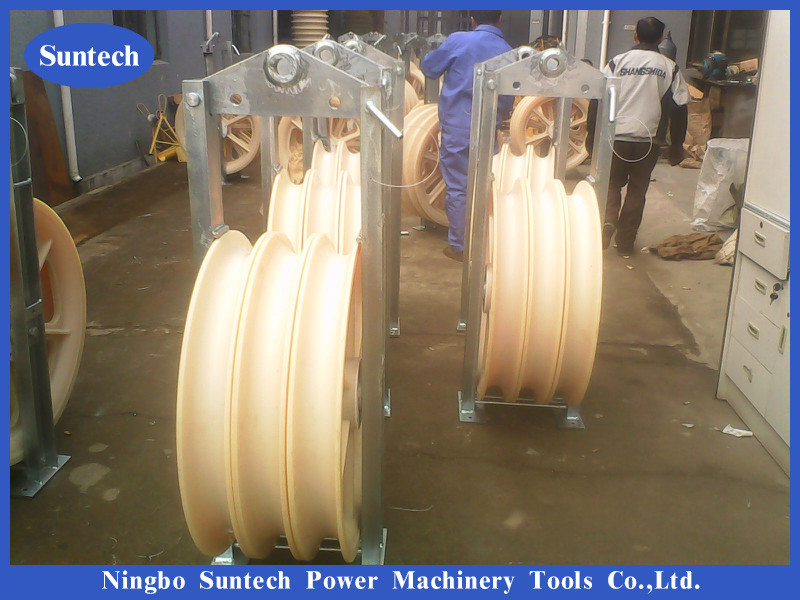

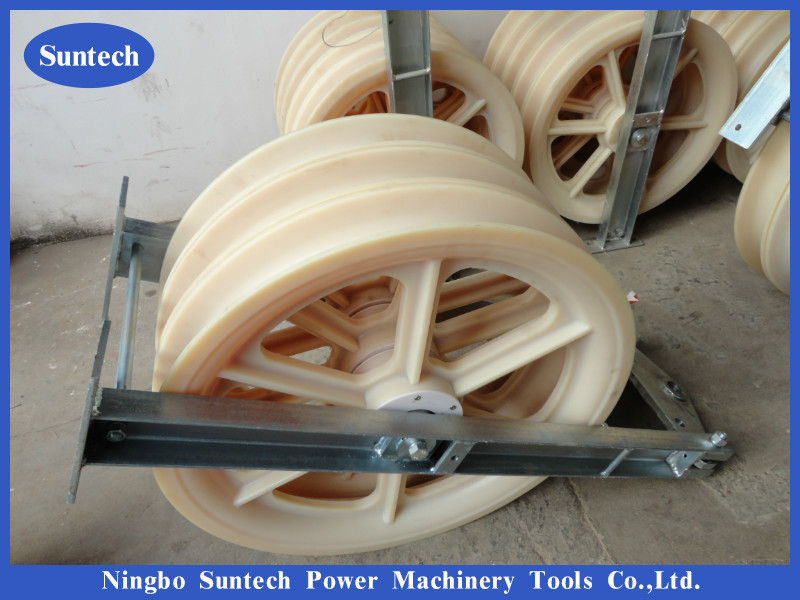

Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks 0



Transmission Three Sheaves 660 Diameter Stringing Equipment Conductor Stringing Blocks 1



Other Transmission Line Stringing Tools



Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block 1Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block 2

Our Service:

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.
