Name: 20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SHDN660
Price: 285,715.00 USD
Availability: InStock

20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks

1 SET

MOQ

Get Latest Price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Diameter: 660mm

Model: SHDN

Name: Stringing Pulley

Rated Load: 20-60KN

Material: MC Nylon

Usage: Transmission Line

Highlight:

660mm stringing pulley

20KN Stringing Pulley

Basic Infomation

Place of Origin: NINGBO

Brand Name: Suntech

Certification: ISO,CE

Model Number: SHDN660

Payment & Shipping Terms

Packaging Details: Wooden Case

Delivery Time: 7-15DAYS AFTER DEPOSIT

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 sets per month

Gallery

20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks

Product Description

660mm Large Diameter Stringing Block Transmission Line Stringing Pulley Blocks

Our 660mm Large Diameter Stringing Block is fitted with the maximum suitable conductor LGJ500.

That is to say, the aluminum of this conducting wire possesses the cross section of at most 500 square millimeters.

In addition, the block dimension (outside diameter*root diameter*sheave width) is Φ660× Φ560× 100 (mm).

The middle steel sheave of both 10122 and 10123 types has a width of 90mm.

We can also supply the middle nylon sheave with the width of 90mm for option.

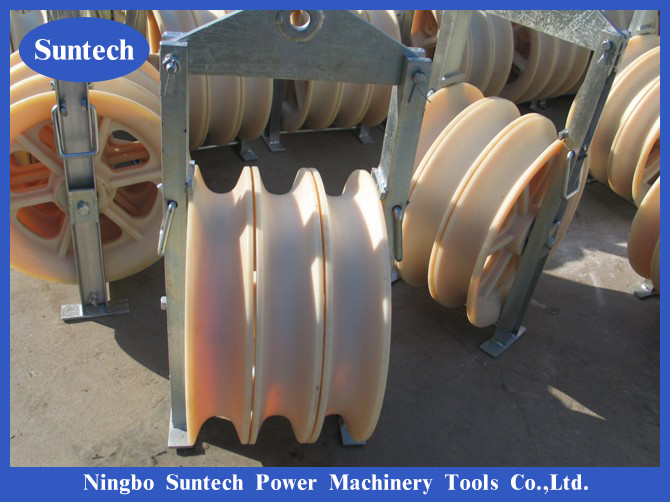

20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks 0

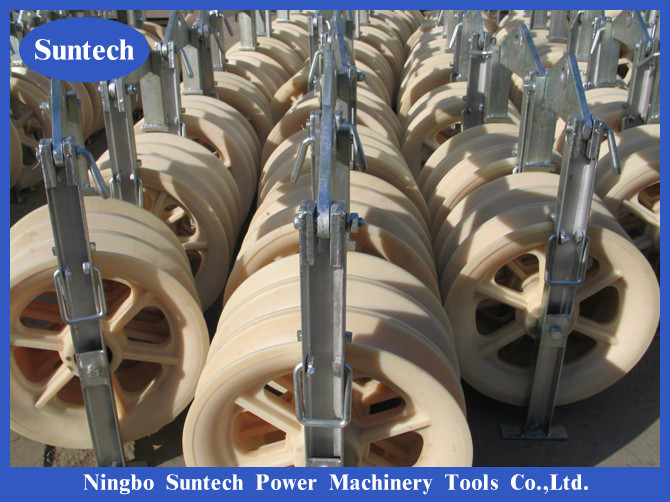

20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks 1

Stringing pulley block features

1. To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2. Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3. The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.

Specifications

Item Number	Model	Number of Sheave	Rated Load (kN)	Weight (kg)	Features
10121	SHD660	1	20	30	Rubber coated aluminum sheave
10122	SHS660	3	40	106	Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123	SHW660	5	60	150
10124	SHDN660	1	20	24	MC nylon sheave
10125	SHSLN660	3	40	92	Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126	SHWLN660	5	60	120
10127	SHSQN660	3	40	76	MC nylon sheave
10128	SHWQN660	5	60	110	MC nylon sheave
10129	SHQZ660	7	80	268	Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130	SHQ660A	7	75	190	Middle: cast steel sheave Conductor: MC nylon sheave

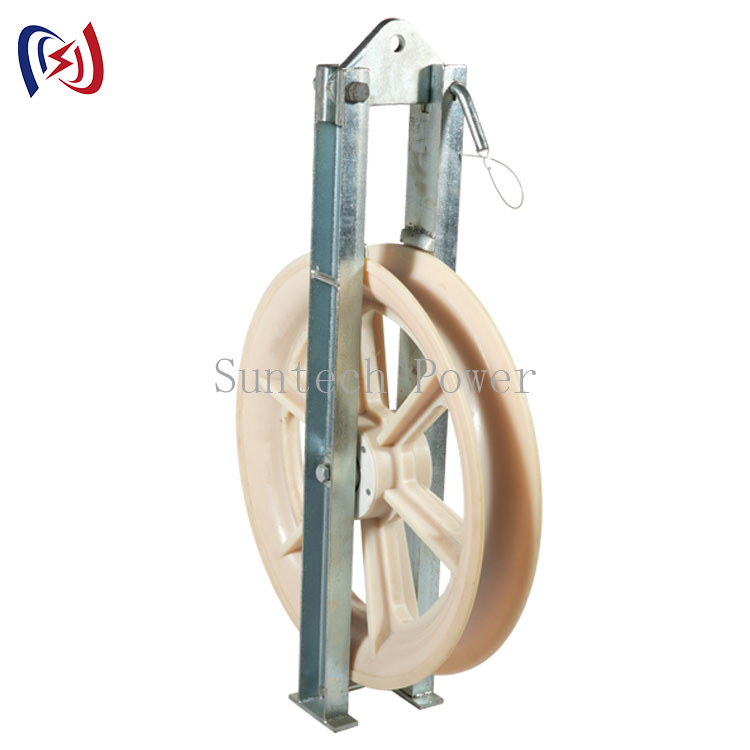

20KN Mc Nylon 660mm Large Diameter Stringing Pulley Blocks 2
