Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks

  • Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks
  • Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks
Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks
Product Details:
Place of Origin: Fenghua,Ningbo,China
Brand Name: Suntech
Certification: ISO 9001
Model Number: SHCN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard export package or as your requirement
Delivery Time: 9-15 days after payment
Payment Terms: L/C, T/T,Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Type: Skyward Stringing Block Model: SHCN80X50A,SHCN120X58A
Application: Transmission Line Stringing Block Sheave: Nylon Or Aluminum
Rated Load: 5kn And 20kn Diameter: 80mm And 120mm
High Light:

crossarm mounted conductor stringing blocks

,

crossarm mounted stringing blocks

,

80mm Conductor Stringing Blocks

Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks



Uses:Transmission Line Tower 0.5T And 2T Crossarm- Mounted Stringing Blocks

The cross arm mounted stringing blocks are used for installation small conductors on transmission line.

Model SHC rated load has 0.5T and 2T, breaking load 5KN, 20KN, suitable for conductor range size 10mm2,40mm2. the material can be aluminum or nylon.



Crossarm-mounted Stringing Block Data

Model Rated Load (KN) Breaking Load (KN) Conductor Size Range (mm²) O. D. of Sheave (mm) Weight (kg) Material Remark
10231 SHC-0.5 5 10 ACSR 25-120 Φ80 1.5 Aluminum
10232 SHC-2 20 40 ACSR 35-240 Φ120 3
10233 SHCN-0.5 5 10 ACSR 25-120 Φ80 1.1 Nylon
10234 SHCN-2 20 40 ACSR 35-240 Φ120 2.3



Transmission Line Stringing Blocks Crossarm Mounted Stringing Block 0 Transmission Line Stringing Blocks Crossarm Mounted Stringing Block 1Transmission Line Stringing Blocks Crossarm Mounted Stringing Block 2

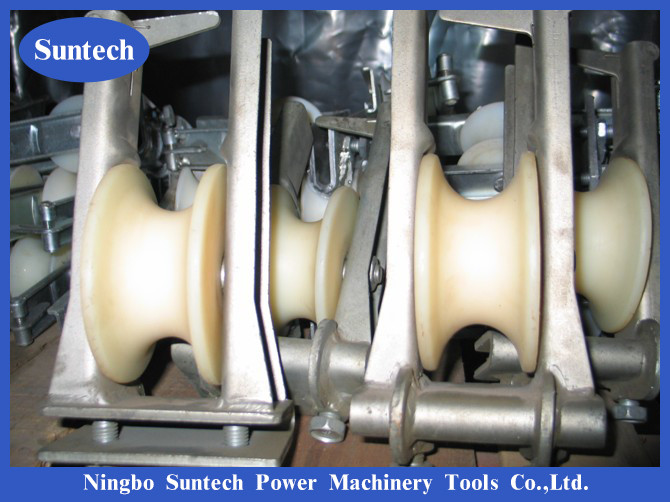

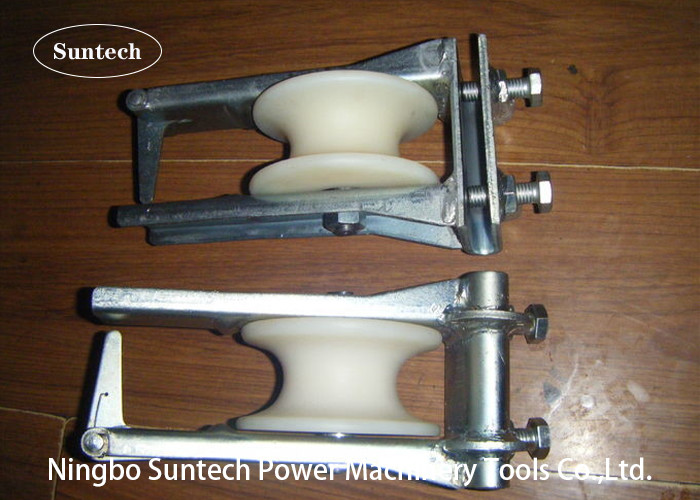

Crossarm mounted stringing block are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene
ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied
with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete
conductive sheaves can be supplied on demand.

Ordernumber Model Applicableconductor Ratedload (kN) Outsidediameterofsheave (mm) Weight(kg) Features
10231 SHC-80×50A LGJ120 5 Φ80 1.5
Aluminous
Wheel
10232 SHC-80×50A LGJ240 20 Φ120 3
10233 SHCN-80×50A LGJ120 5 Φ80 1.1 Nylonsheave
10234 SHCN-120×50A LGJ240 20 Φ120 2.3



Transmission Line Crossarm Mounted Nylon Wheel Conductor Stringing Blocks 3
