Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SHDN |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiated |
Packaging Details: | Exported Cases or Pallets |
Delivery Time: | 7-10 days after deposit |
Payment Terms: | L/C, T/T,Western Union |
Supply Ability: | 2000pcs per month |
Sheave Material: | Aluminum Or Nylon | Model: | SHDN |
---|---|---|---|
Rated Load: | 10KN | Type: | Hook And Clevis |
Weight: | 2.4kg | Application: | Transmission Line |
High Light: | nylon single sheave stringing blocks,10kn stringing blocks,10kn lightweight stringing blocks |

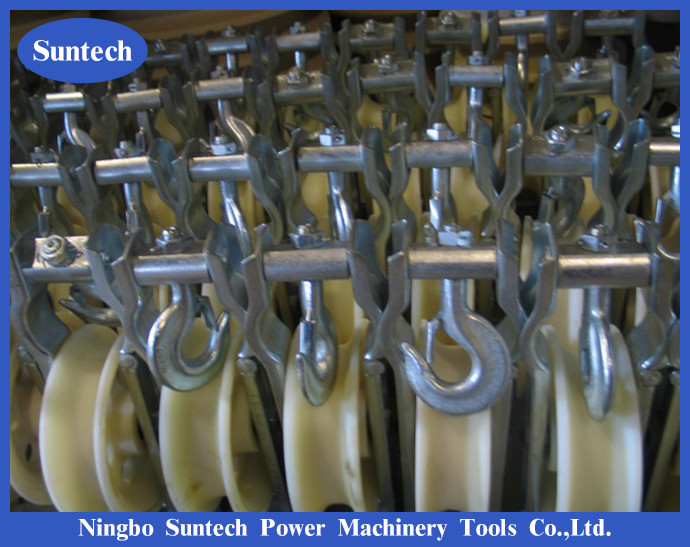

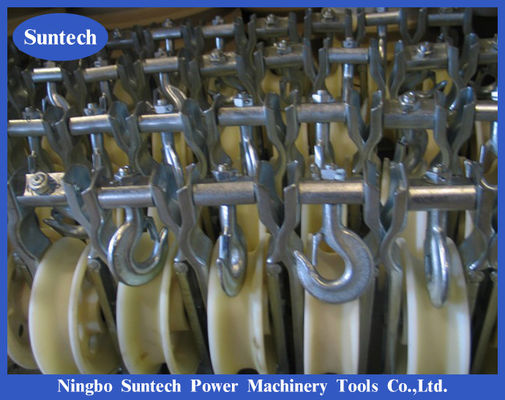

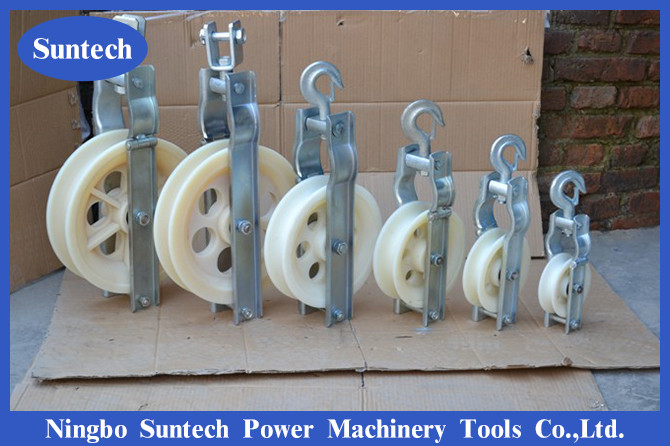

10KN Single Clevis Style Nylon Aluminum Sheave Conductor Stringing Blocks
Our Nylon and Aluminum Sheave String Block has the good wear-resistance, durable long lift, and no deforamtion
whatever under high or cold temperature, and so on. Our products quality all have passed the interantioanl std, and
selling to more than 50 overseas. This single sheave block and tackle is used for releasing the wire, ACSR, insulated

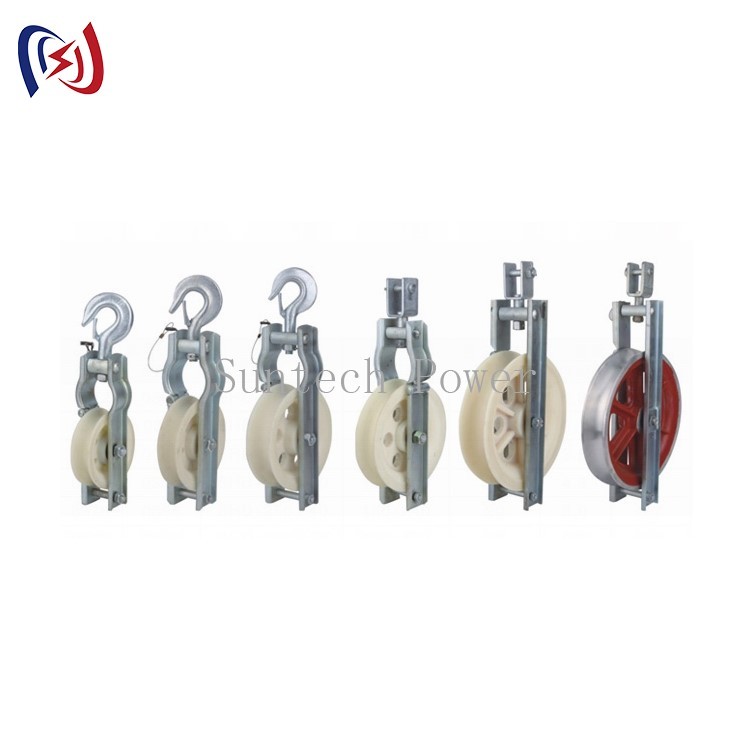

wire in pole or tower construction. There are two types, hook and swivel. The side is highly galvanized steel, it is so strong.
Item Number | Model | Suitable Conductor | Rated Load (kg) | Weight (kg) | Remark |
10171 | SHD-120×30 | LGJ25~70 | 5 | 1.5 | Aluminum sheave |
10172 | SHD-160×40 | LGJ95~120 | 10 | 2.5 | |
10173 | SHD-200×40 | LGJ150~240 | 15 | 4 | |
10174 | SHD-200×60 | LGJ150~240 | 15 | 4.6 | |
10176 | SHD-250×60 | LGJ300~400 | 20 | 6 | |
10178 | SHD-320×60 | LGJ300~400 | 20 | 9.5 | |
10179 | SHD-400×80 | LGJ400~500 | 20 | 15 | |
10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 |
Features:Light Weight 10KN Nylon Single Sheave Stringing Block, Hook And Clevis Style
Nylon cable pulley:nylon materail, light weight, wear resistant,surface smooth and fine,not easy to break, wear-resisting.
With thick plate:adopt the iron palte thincking, the pulley integral anti-tension property improvement, more stable and more durable.
