SHCN Model Universal Hook Style Pulley Block Transmission Line Blocks
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley
Description:
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction
2. They have are used to support conductors, OPGW,ADSS, communication lines
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.

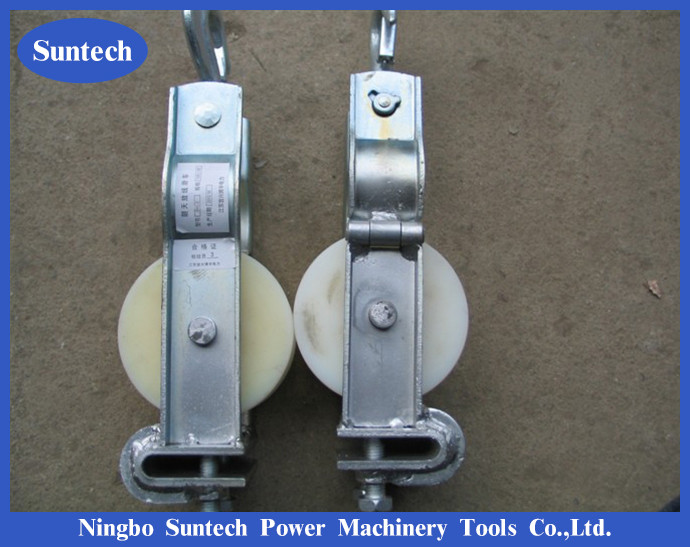

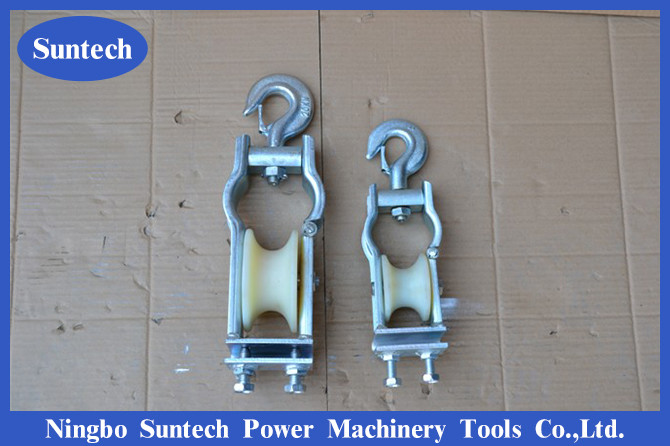

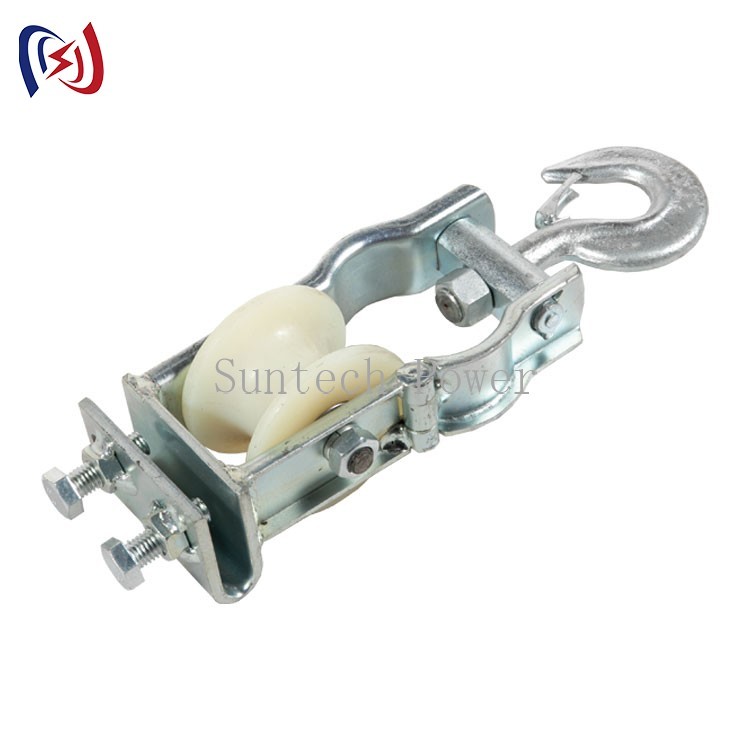

Universal Stringing Blocks with Hooks
The stringing blocks are used for overhead transmission line conductor stringing operation. It can be hanged or installed on cross arm
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Data Sheet
| Item No. | Model | O. D. of Sheave (mm) | Sheave Width (mm) | Rated Load (KN) | Weight (kg) | Material |
| 10261 | SHC-80X50 | Φ80 | 50 | 5 | 1.9 | Aluminum |
| 10262 | SHC-120X30 | Φ120 | 30 | 5 | 2.1 | |
| 10263 | SHC-160X40 | Φ160 | 40 | 10 | 2.5 | |
| 10264 | SHC-120X58 | Φ120 | 58 | 20 | 3.5 | |
| 10271 | SHCN-80x50 | Φ80 | 50 | 5 | 1.4 | Nylon |
| 10272 | SHCN-120x30 | Φ120 | 30 | 5 | 1.6 | |
| 10273 | SHCN-160x40 | Φ160 | 40 | 10 | 2 | |
| 10274 | SHCN-120x58 | Φ120 | 58 | 20 | 2.5 |
