Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks

Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks

  • Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks
  • Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks
Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks
Product Details:
Place of Origin: NINGBO
Brand Name: Suntech
Certification: ISO
Model Number: SHDN508
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Get Latest Price
Packaging Details: Exported Wooden Boxes
Delivery Time: 15DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets per Month
Contact Now
Detailed Product Description
Name: Stringing Pulley Block Middle: Cast Steel Sheave
Sheave: 5 Size: 508*100mm
Rated Load: 60KN Conductor: ACSR LGJ400
High Light:

Pulley conductor stringing blocks

,

508x100mm conductor stringing blocks

,

508x100mm pulley block

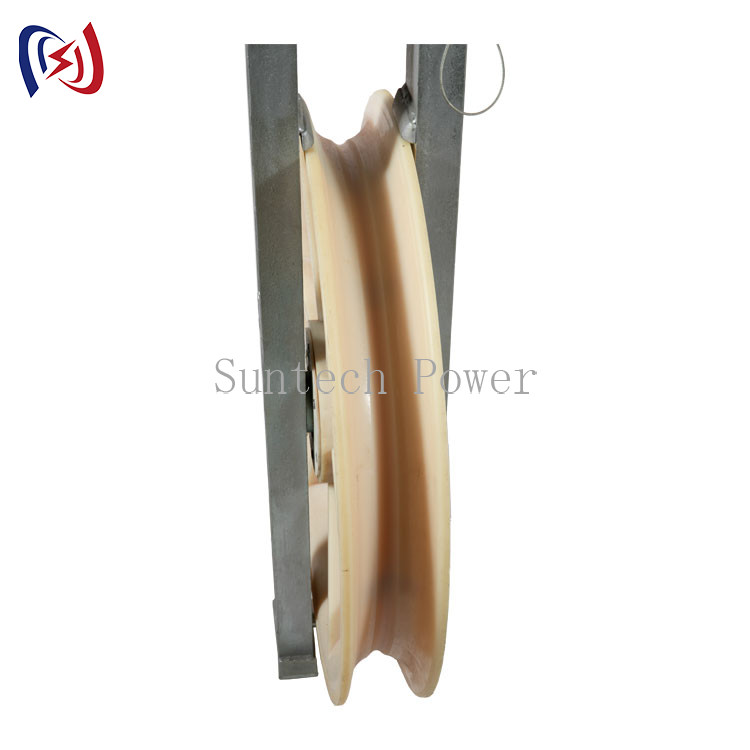

Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks



Conductor stringing pulley block is applied for buiding on stilts to stretch to put conducting line in the power transmission wire ways

is more available than an single split conducting line,double split conducting line,four split conducting line,six split conducting line etc.

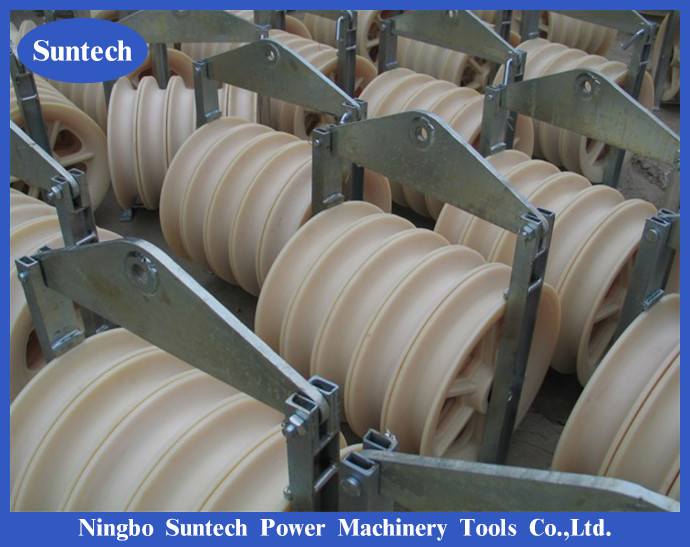

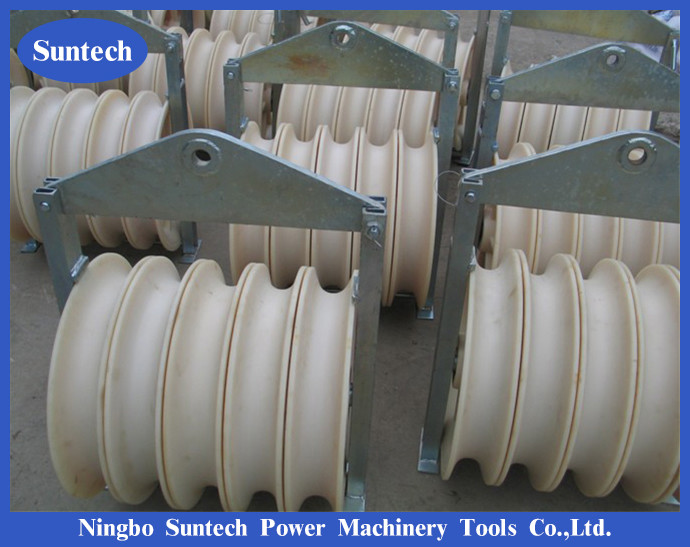

Stringing pulley blocks



Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor
1) Outside Dia 508 mm;
2) Sheave: MC Nylon;
3) Frame: Galvanized steel;

4) Sheave number:1/3/5



Technical Parameters:Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features of Sheave
10101 SHD508 1 20 18 Rubber coated aluminum sheave
10102 SHS508 3 40 61

Middle: cast steel sheave

Conductor: Rubber coated aluminum sheave

10103 SHW508 5 60 93
10104 SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47

Middle: MC nylon sheave

Conductor: Rubber coated aluminum wheel

10106 SHWLN508 5 60 79
10107 SHSQN508 3 40 43 MC nylon sheave
10108 SHWQN508 5 60 70



Note:Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor

Galvanzied frame

Maximum suitable conductor ACSR400;

Sheave dimension ( outside diameter x root diamter xsheave width)

Sheave dimension Φ508×Φ408×75 (mm) can be customized.
