1040x125mm 50KN Overhead Line Conductor Stringing Pulley Blocks

1 SET
MOQ
Get Latest Price
Price
1040x125mm 50KN Overhead Line Conductor Stringing Pulley Blocks
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Nylon And Steel
Type: Stringing Pulley Block
Application: Stringing,cable Construction
Name: ACSR Conductor Stringing Block
Size: 1040X125MM
Rated Load: 50KN
Usage: Power Construction
Sheave Width: 125 Mm
Highlight:

1040x125mm Conductor Stringing Blocks

,

1040x125mm Stringing Blocks

,

50KN Conductor Stringing Blocks

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: SHDN1040
Payment & Shipping Terms
Packaging Details: Wooden Cases and Containers
Delivery Time: 7-15DAYS AFTER DEPOSIT
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month
Product Description

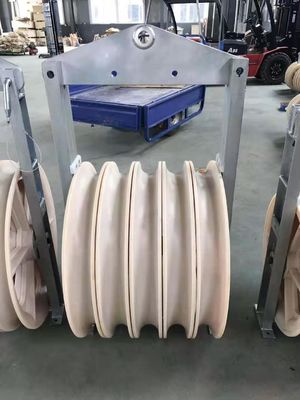

1040X125MM Large Diameter Conductor Stringing Blocks Bundled Half Lined Steel Wire Rope



This 1040mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width)

of Φ1040× Φ900× 25 (mm). Its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting

wire has the maximum cross section of 1120 square millimeters.

The product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave,

thus helping reduce the weight during transportation. Furthermore, we can also provide the rubber coated aluminum sheave,

the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.



1.Maximum suitable conductor ACSR1120.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ1040×Φ900×125

3.Rubber lined MC nylon sheave for conductor can be customized.



Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
10165 SHDN1040 1 50 62
MC nylon sheave
10166 SHSQN1040 3 100 200

middle:MC nylon sheave

Conductor:rubber lined MC nylon sheave

10167 SHWQN1040 5 200 330



1040x125mm 50KN Overhead Line Conductor Stringing Pulley Blocks 0
