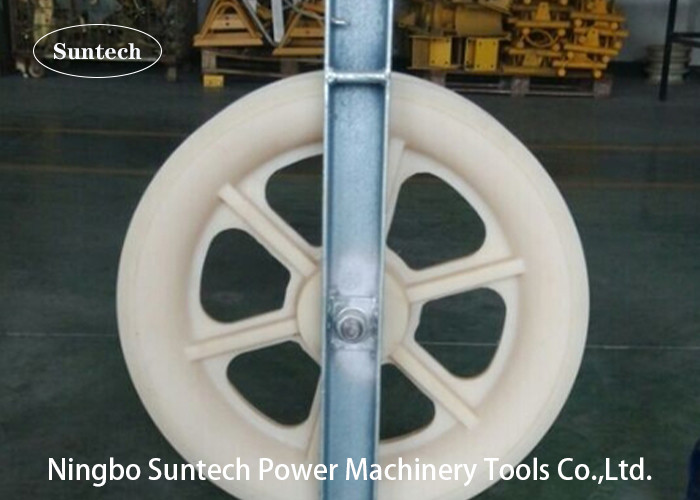

Pilot Wire Bundled Nylon Sheave 508x75MM Conductor Stringing Pulley Block
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead
transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or
strengther nylon wheel with PU liner.
508mm stringing blocks
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR400
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ508×Φ408×75(mm)
3.Sheave dimension Φ508×Φ408×110(mm) can be customized
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |

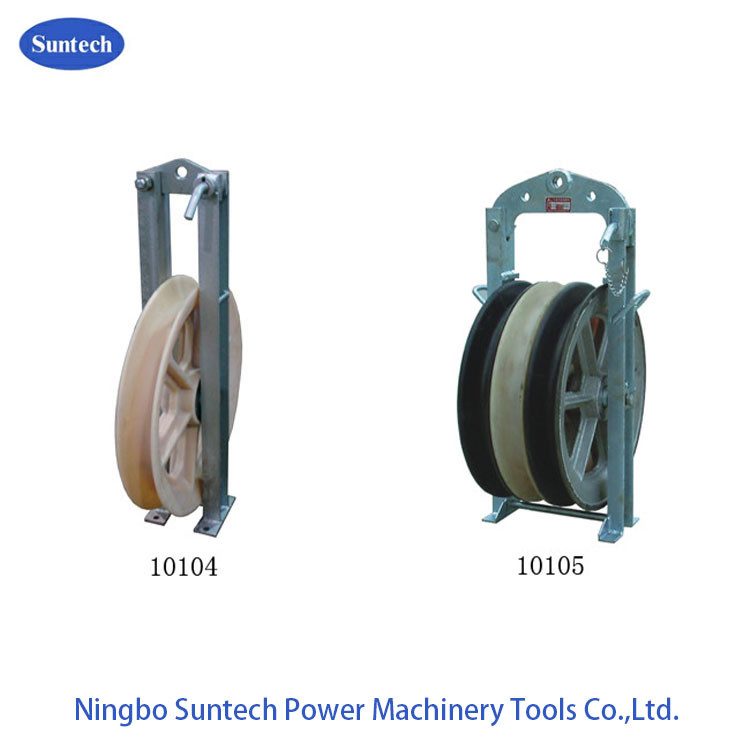

| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108 | SHSQN508 | 5 | 60 | 70 |
