Place of Origin: | NINGBO |
Brand Name: | Suntech |
Certification: | ISO9001:2008 |
Model Number: | SHWQN |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Get Latest Price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | 7-10 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1500 sets per Month |
Material: | Five Sheaves Conductor Stringing Block | Type: | Pulley Block |
---|---|---|---|
Application: | Stringing,cable Construction | Name: | ACSR Conductor Stringing Block |
Size: | 660 Series | Rated Load: | 60KN |
Usage: | Power Construction | Sheave Width: | 100 Mm |
High Light: | Nylon Five Sheave Pulley Block,660 X100 Pulley Block,60KN Pulley Block |

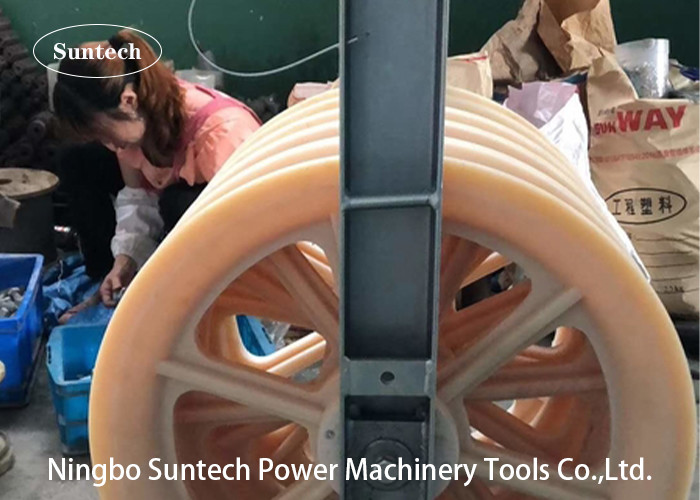

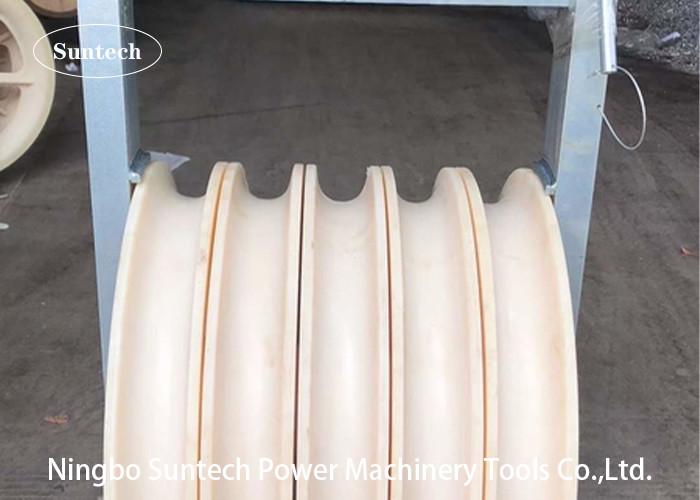

Transmission Line 660 X100 Five Nylon Sheaves Conductor Pulley Block
Suntech Power is a professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
Technical Data
Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
10123 | SHW660 | 5 | 60 | 150 | |
10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
10126 | SHWLN660 | 5 | 60 | 120 | |
10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
10128/10128A | SHWQN660 | 5 | 60 | 110 | |
10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customize
