822mm Large Diameter Bundled Conductor Stringing Pulley Block

822mm Large Diameter Bundled Conductor Stringing Pulley Block

  • 822mm Large Diameter Bundled Conductor Stringing Pulley Block
  • 822mm Large Diameter Bundled Conductor Stringing Pulley Block
  • 822mm Large Diameter Bundled Conductor Stringing Pulley Block
822mm Large Diameter Bundled Conductor Stringing Pulley Block
Product Details:
Place of Origin: Fenghua,Ningbo,China
Brand Name: Suntech
Certification: SGS & CE
Model Number: SHDN822,SHSQN822,SHQ822
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the newest price
Packaging Details: Exported WoodenCases and Containers
Delivery Time: 7-15 Workdays
Payment Terms: L/C, T/T,D/P, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: Nylon,Aluminum Rated Load: 60-120KN
Outside Diameter: 822mm Max Conductor Diameter: LGJ630
Usage: Transmission Line Type: Stringing Blocks
High Light:

822mm Sheave Block Pulley

,

120KN Sheave Block Pulley

,

Nylon 120KN Block Pulley

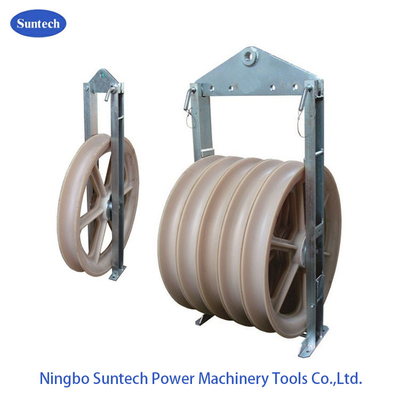

822mm Large Diameter Bundled Conductor Stringing Pulley Block



This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.



The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.



1. Maximum suitable conductor ACSR630.

2. Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3. Rubber lined MC nylon sheave for conductor can be customized.



822mmTechnical Parameters

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Sheave Features
10141 SHDN822 1 30 40 MC nylon sheave
10142 SHSQN822 3 60 118 Middle: cast steel sheave Conductor: MC nylon wheel
10143 SHWQN822 5 120 180
10146 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon wheel
10148 SHJ822 9 150 445



822mm Large Diameter Bundled Conductor Stringing Pulley Block 0



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
